| Prod Model: |
ZCQ-06C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Direct-Acting Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Industrial Usage |
Product Description

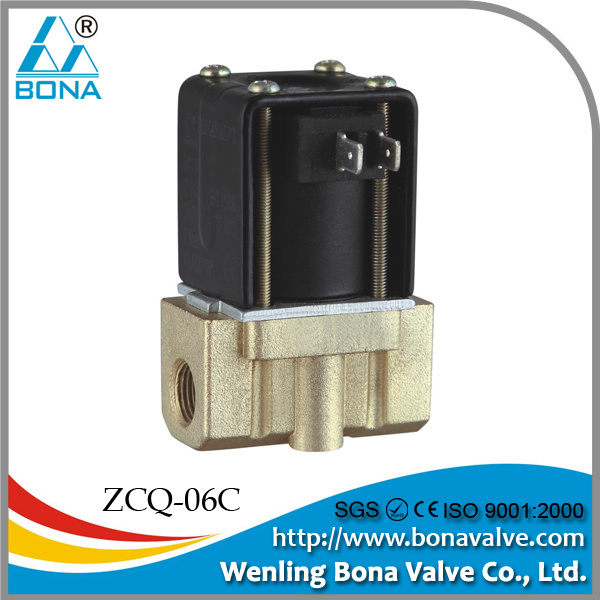

Solenoid valve, Japanese type, special for wire feeder, widely used in welding area.
Name: Wire feeder valve, welding solenoid valve, gas solenoid valve, air solenoid valve and so on.

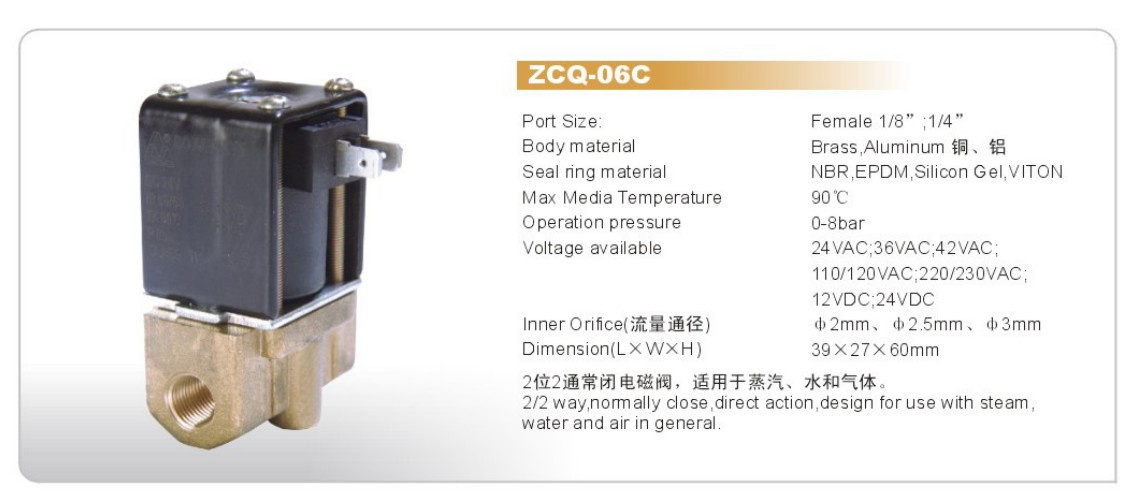

Specification:
1)Working Media: Gas, Air, Steam, Water
2)Motion Pattern: Direct Acting Type
3)Type: Normal Close Type
4)Joint Pipe Bore: Female 1/8"
5)Working pressure: 0-10bar
6)Max. Pressure Resistance: 10bar
7)Operating Temperature: 90/160 degree C
8)Voltage Range: 10%
9)Material of Body: Brass
10)Material of Seal Ring: NBR
| Port size: | Female G 1/8" (NPT upon request) M10*1, G 1/4" |
| Port NO.: | 2/2 way |
| On-off state: | Normally close |
| Media: | Gas; air; water in general |
| Max valve pressure: | 10bar |
| Body material: | Brass |
| Seal ring material: | NBR |
| Max media temperature: | 90/160 degree C |
| Voltage available: | DC 12V; DC 24V; 12V/50; 24V/50; 110V/50; 220V/230V/50; Pulse 6-24VDC |
| Protection class: | IP 65 |

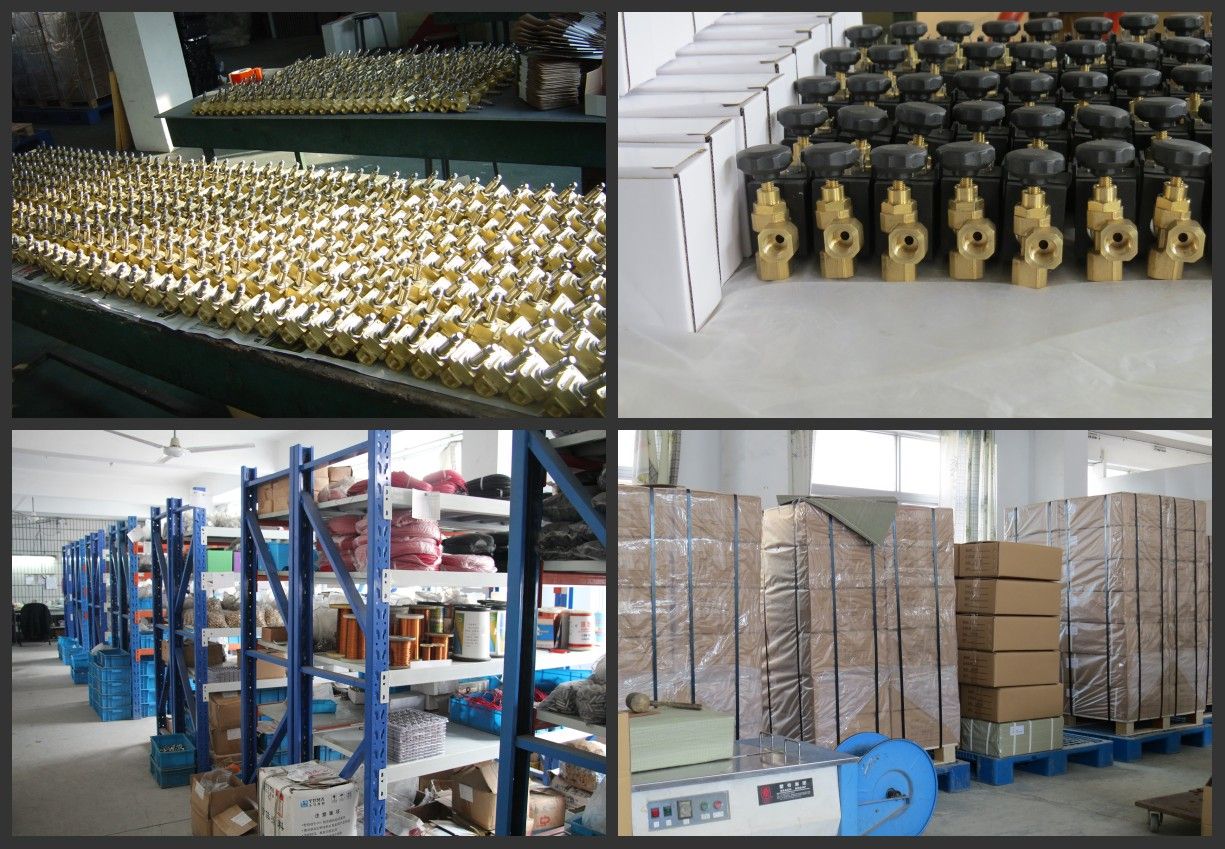

We have many years professional manufacture experience in designing and producing solenoid valves, other fluid control products and their components. Now we have several patents. Our product passed CE of TUV, SGS.
Our main product are solenoid valves for water, solenoid valves for steam, solenoid valve for air, stainless steel float ball switch and other brass products. Widely be used in automatic application of welding, irrigation, ironing, food process, inductive sanitary, water auto supply, home appliance industry.
Quality control is one of our main principles. Our design, producing and testing are strictly complied with ISO9001 standard. Now our products are exported all over the world.
Welcome to choose our varied products. We have powerful technical support, steady quality and good service. We'd very like to have cooperation with you in a long term relationship.
