| Price: | US $ 5.45-29/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1000/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Prod Model: | BW-Q09 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
| Work Pressure: | Low Pressure (',Pn<1.6mpa) |
| Material Of Seal Surface: | Soft Sealed |
| Connection Form: | Double-Clip Type |
| Structure: | Centre Sealing |
| Seal Form: | Force Sealed |
| Working Temperature: | Normal Temperature (',-40??C |

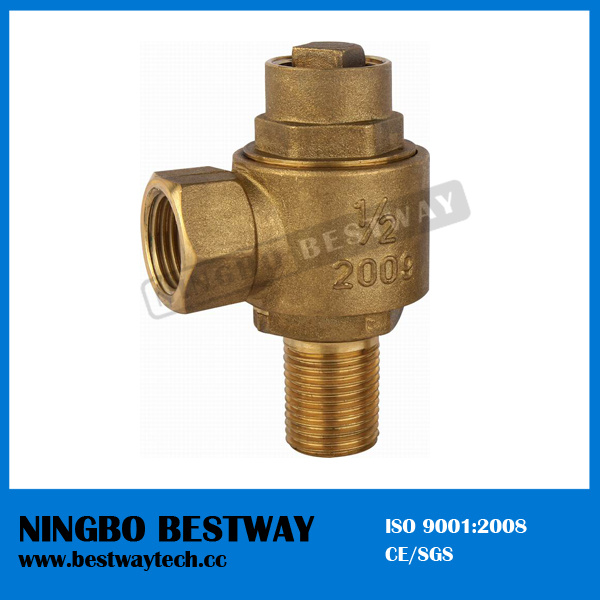

Product Name: BS1400 Bronze Ferrule Valve/Gunmetal Ferrule Valve/Gunmetal Ferrules/Gunmetal Swivel Ferrules
General Description:
Bronze Ferrule valve provides quick, permanent, leak-free service connections for provision f water to the consumers.
It comprises a stem with an inner plug for isolation and the outlet shall be a 360° Swivel positioned at 90° to the stem.
The outlet shall provide a direct connection to the service line through an integrated threaded joint in the ferrule banjo.
Specificatios:
1. Design Features
1) Shall be able to be installed with drilling and tappingmachines
2) Shall be able to used for dry&under pressure drilling.
3) shall be able to installed directly in Cast Iron, Ductile Iron, Steel Pipe mains.
4) Shall be able to be installed on UPVC or AC mains through PVC clamp saddles, flat brass straps.
5) Shall have an inlet male taper thread for mounting on the pipe saddle.
6) shall have an outlet female parallel thread for jointing of the service line.
7) isolation/control of water shall be handled by the inner plug.
List of Components and Material data:
1. Top plug Gunmetal (BS1400 LG2)
2. Top cap Gunmetal (BS1400 LG2)
3. Top cap washer EPDM rubber or Nitrile Rubber
4. Banjo Washers EPDM rubber
5. Banjo Gunmetal (BS1400 LG2)
6. Inner Plug Gunmetal (BS1400 LG2)
7. Stem Gunmetal (BS1400 LG2)
Size: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Technical standard:
Working pressure: upto 20bar
Working Medium: Potable water
Working Temperature: upto 45°C
Parallel Pipe Thread to ISO 7/1

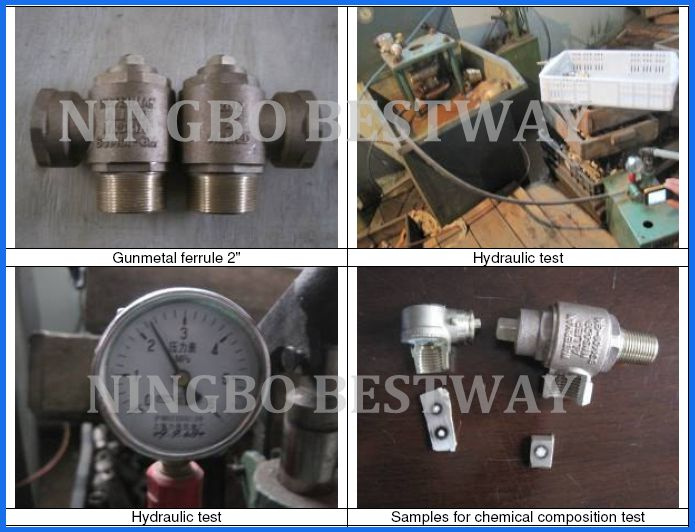

Pressure test as below:
Packages details as follows:
There also have brass material for your selection.
If you want to know more information about our products, pls don't hesitate to contact with us any time.
