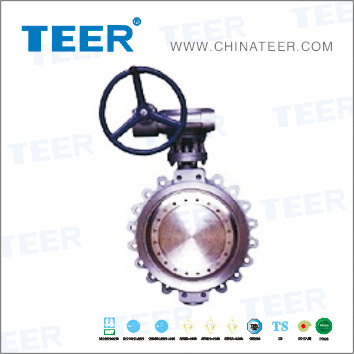

Butterfly Valve (D341H -150LB)
Price: |
US $ 1-25000PCS |
Trade Terms: |
others |
Min Order: |
1PCS |
Pay Type: |
L/C,T/T |
Prod Model: |
D341H -150LB |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
D371h: |
25" |
Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
Material Of Seal Surface: |
Soft Sealed |
Connection Form: |
Flange |
Structure: |
Double-Eccentric Sealing |
Seal Form: |
Supercharging Pressured Sealed |
Working Temperature: |
Normal Temperature (',-40??C
|
Application: |
Industrial Usage |
Product Description
Triple Eccentric Butterfly Valve
Product Details: Size: NPS 2"~48"
Rating: Class150~600
Material: WCB, LCB, LCC, CF8, CF8M, CF3, CF3M
Design and manufacture standards: : API 609, ASME B16.34
Face to face standards: API 609, DIN 3202
End connections standards: ASME B16.5, ASME B16.47, DIN 2501
Test standards: API 598, BS 6755, ISO 5208
Constructions:
Triple eccentric
Laminated seal
Wafer, Lug, double flange
Operation: Lever, Gear, Electrical actuator, Pneumatic actuator
Teer Valve Co., Ltd, a specialized export-oriented valve manufacturer, is located in Oubei, Wenzhou, the home town of pump & valve in China. Established in 2001 with a registration capital of 38, 800, 000.00 RMB, Teer valve covers a total construction area of 48800 m2 with three factories, that is one Ball, Gate, Globe & Check valve factory, one API 602 forged valve factory and one share holding ball factory.
Integrating R&D, manufacture, sales and after-sales service as a whole, Teer' mainly produce Ball valves, Gate valves, Globe valves, Check valves, Butterfly valves and Plug valves with diameter, working pressure and temperature range up to DN1500(60"), PN42Mpa (Class2500) and -196° To 650° Respectively, employing materials from conventional carbon steel, stainless steel, alloy steel, to alloy, such as WCB, A105, WCC, LCB, LCC, LF2, WC1, WC5, WC6, WC9, C5, C12, F11, LF2, F22, 304, 316, 304L, 316L, CF8, CF8M, CF3, CF8C, CN7M, CF3M, Inconel and Monel, etc.
Teer possesses advanced machining and manufacturing facilities, such as CNC lathe, CNC miller, CNC driller, heat treatment furnace, plasma spray welding, painting & drying line, ultrasonic cleaner and other common NDT equipments. It has also set up tool, pattern, finished and semi-finished product warehouses.
Capable of adopting many international standards such as Chinese GB, ANSI, API, BS, DIN, JIS to it's product design and manufacturing and due to persistent pursuit and accumulation to quality, Teer's Quality Management System and products have passed ISO9001-2008 Quality System Certification (DNV), ISO14001-2004, OHSAS18001-1999, API 6D & API600 certification of American Petroleum Institute, CE certification of EU (TUV), Manufacture License of Special Equipemnt (TS) of P. R. China. Teer uses tailor-designed ERP system to control it's daily operation, workshop management and QA & QC procedure.
Teer products are widely used in petroleum, gas, chemical and power industries and over 95% of its products are exported to overseas markets, such as Europe, Middle East, Southeast Asia and South America. It has been approved by Oman PDO, Valve Supply Network for National Power System (China), CHEMCHINA as network supplier.
