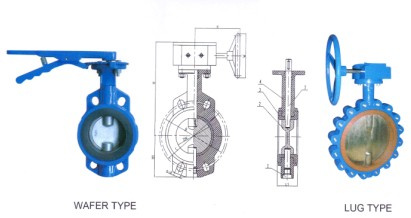

Butterfly Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DN50~DN600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Material Of Seal Surface: |
Soft Sealed |
| Connection Form: |
Lug Support |
| Structure: |
Centre Sealing |
| Seal Form: |
Supercharging Pressured Sealed |
| Working Temperature: |
Medium Temperature (',120??C
|
| Application: |
Water Industrial Usage |
Product Description
DESCRIPTION
1. Operater: Lever, Gearbox, Actuator
2. Design Standard: MSS SP-67, BS5155, API609
|
No. |
Part |
Material |
|
1 |
bolt |
A3plating |
|
2 |
stem |
SS410/304 |
|
3 |
disc |
GGG40/304 |
|
4 |
seat |
NBR/EPDM |
|
5 |
body |
GG25/GGG40 |
DIMENSIONS(mm)
|
DN |
L1 |
H |
H1 |
B |
C |
N-D |
K |
|
50 |
43 |
135 |
65 |
125
|
120.5 |
4-19 |
175 |
|
65 |
46 |
155 |
78 |
145 |
139.7 |
4-19 |
175 |
|
80 |
46 |
165 |
83 |
160 |
152.4 |
8-19 |
175 |
|
100 |
52 |
180 |
107 |
190.5 |
180 |
8-19 |
175 |
|
125 |
56 |
195 |
120 |
215.5 |
210 |
8-19 |
175 |
|
150 |
56 |
210 |
132 |
241.3 |
240 |
8-23 |
175 |
|
200 |
60 |
265 |
170 |
298.5 |
295 |
12-23 |
250 |
|
250 |
68 |
295 |
190 |
361.9 |
350 |
12-23 |
250 |
|
300 |
78 |
335 |
222 |
431.6 |
400 |
16-23 |
250 |
|
350 |
78 |
370 |
295 |
476.2 |
460 |
8-23 |
175 |
|
400 |
102 |
400 |
356 |
539.7 |
515 |
12-23 |
250 |
|
450 |
114 |
435 |
380 |
577.8 |
565 |
12-23 |
250 |
|
500 |
127 |
490 |
410 |
635 |
620 |
16-23 |
250 |
|
600 |
154 |
550 |
500 |
749.3 |
725 |
16-23 |
250 |
