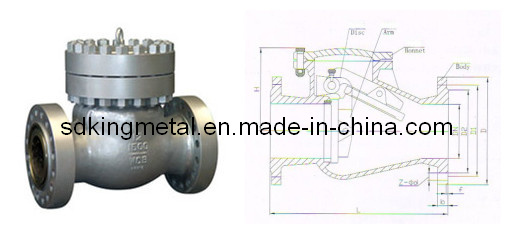

Cast Iron 125lbs Swing Check Valves
| Price: |
US $ 10-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
SDCV-009 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn40-1200 |
| Structure: |
Through Way Globe Valve |
| Stem Thread Position: |
Inside Screw Stem Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Standard: |
En ISO Asme Bs |
| Application: |
Oxygen Globe Valve |
Product Description
For the pipelines where the working pressure under ≤1.0MPa and uses water
as media.It can prevent the water from flowing backward.
Design:Manufacture according to GB/T12232-1989
Other
1.Standard: EN,MSS,BS,ANSI
2.Connection type:wafer,flange,theard
3.Type:swing check valves, lift check vlaves
4.Body:cast iron,ductile iron , cast steel,forged steel,stainless steel
5.Disc:ductile iron ,stainless steel 304/316,aluminum bronze
6.Seat:NBR,EPDM,PTFE
7.SizeL2''-24''
8.packaging:export poly wooden cases,or as per customers'requirements
9.Delivery time:45 days after order conformed
10.Payment: by T/T,D/P or L/C
|
Performance date |
|
part name |
material |
|
body bonnet disc |
cast iron |
|
hinge pin |
carbon steel |
|
gasket |
asbestos sheel |
|
nominal DN(mm) |
dimensions(mm) |
|
L |
D |
D1 |
D2 |
b-f |
Z-d |
H |
|
40 |
200 |
145 |
110 |
85 |
18-3 |
4-18 |
114 |
|
50 |
230 |
160 |
125 |
100 |
20-3 |
4-18 |
128 |
|
65 |
290 |
180 |
145 |
120 |
20-3 |
4-18 |
128/ |
|
80 |
310 |
195 |
160 |
135 |
22-3 |
4-18 |
152 |
|
100 |
350 |
215 |
180 |
155 |
22-3 |
8-18 |
159 |
|
125 |
400 |
245 |
210 |
185 |
24-3 |
8-18 |
188 |
|
150 |
480 |
280 |
240 |
210 |
24-3 |
8-23 |
224 |
|
200 |
495 |
335 |
295 |
265 |
26-3 |
8-23 |
252 |
|
250 |
622 |
390 |
350 |
320 |
28-3 |
12-23 |
285 |
|
300 |
698 |
440 |
400 |
368 |
28-3 |
12-23 |
351 |
|
350 |
800 |
500 |
480 |
428 |
30-3 |
16-23 |
405 |
|
Material of main parts |
|
type |
nominal DN(mm) |
testing |
working temperature(°C) |
suitable medium |
|
strenght (water)(Mpa) |
sealing(water)(Mpa) |
|
Z45T-10 |
1.0 |
1.5 |
1.1. |
≤120 |
water |
|
Z45W-10 |
1.0 |
1.5 |
1.1 |
≤100 |
water |
|
H44X-10 |
1.0 |
1.5 |
1.1 |
≤70 |
water |
