| Prod Model: |
Z44T-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dn: |
80 |
| Material: |
Cast Iron |
| Connection Form: |
Flange |
| Seal Surface: |
Parallel Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
| Standard: |
GOST |

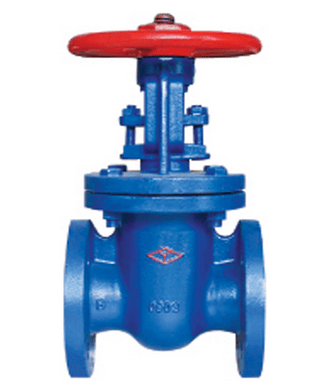

Product Description
It has been widely used in the filed of Petro-chem, pharma centical and power, etc. It is used by open and close on the pipes of steam, water, and oil, etc, under the pressure of 1.0 MPa.
1. Valve body & Bonnet: Iron, Ductile iron
2. Disc: Iron, Ductile iron
3. Stem: Carbon steel, Brass, Stainless steel
4. Wedge: Ductile iron
5. Yoke nut: Brass, Ductile iron
6. Hand wheel: Iron, Ductile iron
| PN 1.6 Mpa |
| DN | L(RF) | L(BW) | D | D1 | D2 | f | b | Z-Φd | A | B | H | W |
| 50 | 250 | 250 | 165 | 125 | 99 | 2 | 20 | 4-18 | 60 | 52 | 355 | 200 |
| 65 | 270 | 270 | 185 | 145 | 118 | 2 | 20 | 4-48 | 75 | 63 | 376 | 200 |
| 80 | 280 | 280 | 200 | 160 | 132 | 2 | 20 | 8-18 | 91 | 78 | 435 | 280 |
| 100 | 300 | 300 | 220 | 180 | 156 | 2 | 22 | 8-18 | 117 | 102 | 502 | 300 |
| 125 | 325 | 325 | 250 | 210 | 184 | 2 | 22 | 8-18 | 144 | 128 | 615 | 320 |
| 150 | 350 | 350 | 285 | 240 | 211 | 2 | 24 | 8-22 | 172 | 154 | 675 | 360 |
| 200 | 400 | 400 | 340 | 295 | 266 | 2 | 24 | 12-22 | 223 | 203 | 820 | 400 |
| 250 | 450 | 450 | 405 | 355 | 319 | 2 | 26 | 12-26 | 278 | 255 | 970 | 450 |
| 300 | 500 | 500 | 460 | 410 | 370 | 2 | 28 | 12-26 | 329 | 305 | 1145 | 500 |
| 350 | 550 | 550 | 520 | 470 | 429 | 2 | 30 | 16-26 | 362 | 337 | 1280 | 550 |
| 400 | 600 | 600 | 580 | 525 | 480 | 2 | 32 | 16-30 | 413 | 387 | 1451 | 600 |
| 450 | 650 | 650 | 640 | 585 | 548 | 2 | 40 | 20-30 | 464 | 438 | 1545 | 650 |
| 500 | 700 | 700 | 715 | 650 | 609 | 2 | 44 | 20-33 | 516 | 489 | 1678 | 700 |
| 600 | 800 | 800 | 840 | 770 | 720 | 2 | 54 | 20-36 | 619 | 591 | 1875 | 800 |
| 700 | 900 | 900 | 910 | 840 | 794 | 5 | 40 | 24-36 | 721 | 695 | 2085 | 900 |
| 800 | 1000 | 1000 | 1025 | 950 | 901 | 5 | 42 | 24-39 | 825 | 797 | 2405 | 950 |
| 900 | 1100 | 1100 | 1125 | 1050 | 1001 | 5 | 44 | 28-39 | 927 | 899 | 2950 | 1000 |
| 1000 | 1200 | 1200 | 1255 | 1170 | 1112 | 5 | 46 | 28-42 | / | / | 3244 | 1000 |
