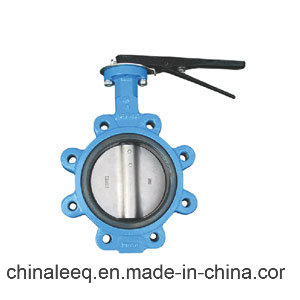

Cast Steel Center Line Wafer Type Butterfly Valve
| Price: |
US $ 10-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Wafer |
| Structure: |
Centre Sealing |
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Working Temperature: |
Medium Temperature (',120??C
|
| Application: |
Water Industrial Usage |
Product Description
Quick Details
| Standard or Nonstandard: | Standard | Structure: | Butterfly | Pressure: | Medium Pressure |
| Power: | Manual | Material: | Stainless Steel | Temperature of Media: | Normal Temperature |
| Media: | Oil, Gas, Water | Port Size: | 2"~16" | Place of Origin: | Hebei, China (Mainland) |
| Model Number: | D36 | Brand Name: | Liqian | Application: | General |
| Description: | Low Price Cast Steel Center Line Wafer Type Butterfly Valve |
Packaging & Delivery
| Packaging Details: | Stanard wooden case |
| Delivery Detail: | 30~50 days |
Design Features
- Design Standard - API 609, BS 5155, DIN 3202, IS 13095.
- Body: Single Piece
- End Connection: Flanged, Wafer, Lug.
- DN : 2" - 48"
- PN : 1.0MPa , 1.6MPa, ANSI 125, ANSI 150.
- Disc: Concentric, Single offset, Double offset, Triple offset.
- Leak proof - Positive shut-off.
- Phenolic Backed Seat.
- One piece thru' Shaft.
- Operation: Manual, Mechanical actuator, Electric actuator, Pneumatic actuator.
- Extended Stem.
- End to end dimensions as per API609, BS5155, DIN3202, and IS13095.
- Actuator Mounting - ISO 5211
- Material: NACE MR-0175
- Test in accordance with API-598.
Description
The principle of operation incorporated in the TIP triple offset valve is geometry in motion. Both the seat in the body and the seal on the disc are surfaces of a cone which is sectioned at an angle. The valve shaft is located slightly to one side of the seat center and above the plane of the seat.
Its center of rotation is also somewhat is also somewhat offset from the axis of the imaginary cone which extends from the surface of the seat. When the valve is closed, the surface of the seal and the seat are in full contact at all points. Any efforts to try to further close the disc (rotating it into the seat) increases the sealing force and tightens the valve. This allows the valve to achieve a bi-directional seal.
Opening the valve, or rotating the disc away from its seat, results in the seal moving away from the seat at all points, eliminating rubbing or sliding of the seating surfaces, thus avoiding wear. TIP valves feature true non-rubbing seating surfaces for long life and tight shutoff.
Our Specialization
TIP Valve company specialized in manufacturing valves in Duplex, Super Duplex, Inconel, Monel, UNS N08926, UNS N07718, UNS N08825, UNS N06625, Hastelloy, Aluminium Bronze, 17-4PH.
Special Process
Metal to Metal contact by Stellite Overlay, Stellite Coating, Tungsten Carbide Coating, Chromium Carbide Coating through HVOF process & Electroless Nickel Plating. Application temperature range up to 775ºC.
Design Standard
Valve Design: API 6D, API 608, ASME B16.34, ISO 17292, BS 5351
End Connection: Flanged, Butt weld, Socket weld & NPT endsTesting: ASME B16.34, API 6D, API 598, API 607, API 6FA
About-Us
Xingtai City Liqian Import & Export Co., Ltd is committed to providing high-quality industrial valves to the international customers. Our factory has a 60-year history on researching, developing, manufacturing and marketing of industrial valve products that are widely used in Oil & Gas, Water Treatment, Power Generation, Petroleum Refinery, Chemical & Petrochemical, and Paper & Pulp industries. It is located in Tianjin-Bohai Economic Center, with strong geographical advantages and development spaces, now becoming the largest valve manufacturer in China. It has passed the authentication of ISO9001:2008 quality management system, ISO 14001:2004 environmental management system, and OHSAS 18001:2007 Occupational Health & Safety System, also with CE, API, KS and Gost certification.
Our exported products include USA ANSI, API, AWWA standard valves, Germany DIN standard valves, England BS standard valves, Japan JIS standard valves, Russia GOST standard valves, France NF standard valves, etc. and the types covering gate valve, globe valve, ball valve, butterfly valve, check valve, diaphragm valve, reducing valve, plug valve, traps valve, etc. With stable quality and long using life, our valves are very popular in USA, Europe, Russia and Middle East markets.
To choose Liqian Valve means to choose safety. We would like to enjoy a win-win cooperation with the customers all over the world!
For more information,please visit our website: www.chinaleeq.com
Contact Person: Summer Bai
Xingtai City Liqian Import & Export Co., Ltd is committed to providing high-quality industrial valves to the international customers. Our factory has a 60-year history on researching, developing, manufacturing and marketing of industrial valve products that are widely used in Oil & Gas, Water Treatment, Power Generation, Petroleum Refinery, Chemical & Petrochemical, and Paper & Pulp industries. It is located in Tianjin-Bohai Economic Center, with strong geographical advantages and development spaces, now becoming the largest valve manufacturer in China. It has passed the authentication of ISO9001: 2008 quality management system, ISO 14001: 2004 environmental management system, and OHSAS 18001: 2007 Occupational Health & Safety System, also with CE, API, KS and GOST certification.
Our exported products include USA ANSI, API, AWWA standard valves, Germany DIN standard valves, England BS standard valves, Japan JIS standard valves, Russia GOST standard valves, France NF standard valves, etc. And the types covering gate valve, globe valve, ball valve, butterfly valve, check valve, diaphragm valve, reducing valve, plug valve, traps valve, etc. With stable quality and long using life, our valves are very popular in USA, Europe, Russia and Middle East markets.
To choose Liqian Valve means to choose safety. We would like to enjoy a win-win cooperation with the customers all over the world!
Xingtai City Liqian Import & Export Co., Ltd is committed to providing high-quality industrial valves to the international customers. Our factory has a 60-year history on researching, developing, manufacturing and marketing of industrial valve products that are widely used in Oil & Gas, Water Treatment, Power Generation, Petroleum Refinery, Chemical & Petrochemical, and Paper & Pulp industries. It is located in Tianjin-Bohai Economic Center, with strong geographical advantages and development spaces, now becoming the largest valve manufacturer in China. It has passed the authentication of ISO9001: 2008 quality management system, ISO 14001: 2004 environmental management system, and OHSAS 18001: 2007 Occupational Health & Safety System, also with CE, API, KS and GOST certification.
Our exported products include USA ANSI, API, AWWA standard valves, Germany DIN standard valves, England BS standard valves, Japan JIS standard valves, Russia GOST standard valves, France NF standard valves, etc. And the types covering gate valve, globe valve, ball valve, butterfly valve, check valve, diaphragm valve, reducing valve, plug valve, traps valve, etc. With stable quality and long using life, our valves are very popular in USA, Europe, Russia and Middle East markets.
To choose Liqian Valve means to choose safety. We would like to enjoy a win-win cooperation with the customers all over the world!
