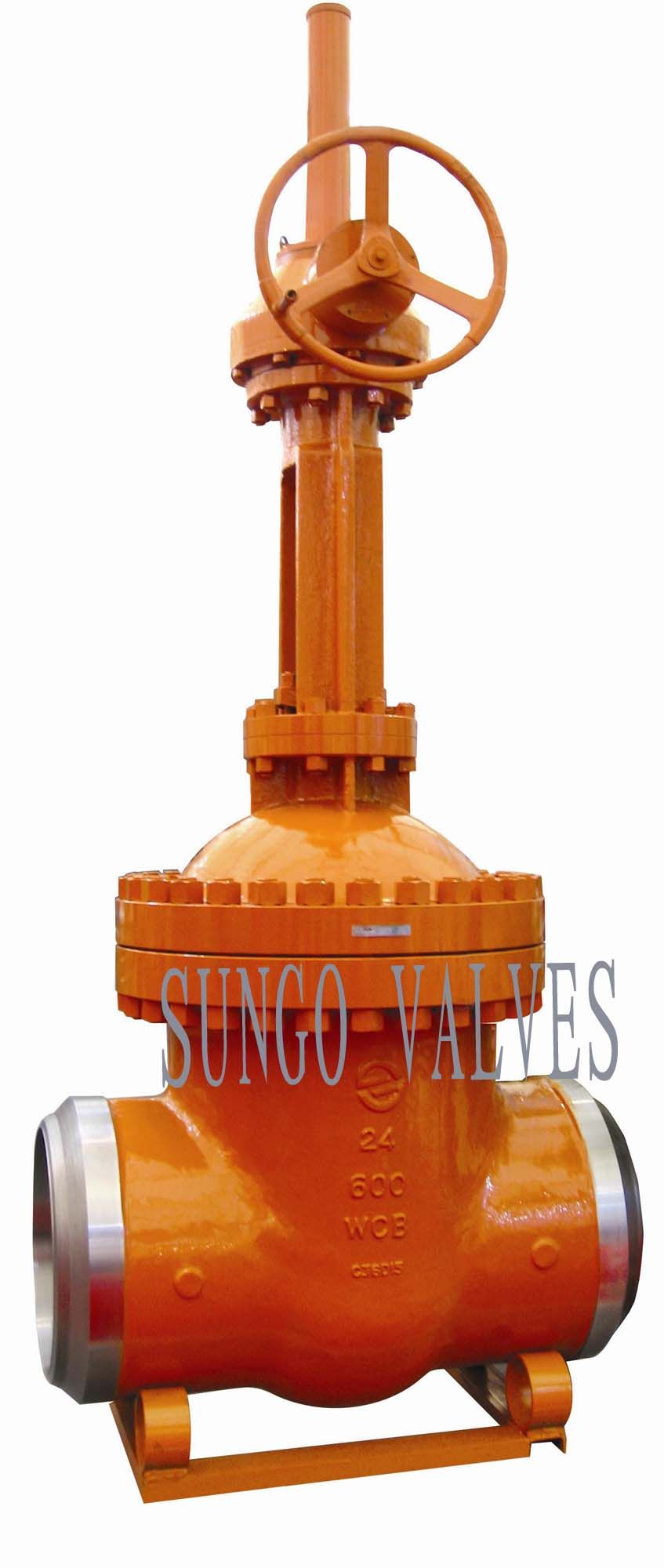

Cast Steel Gate Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body: |
ASTM A216 Wcb |
| Gasket: |
Soft Iron + Graphite or 304 + Graphite |
| Seat Ring: |
A105 + 13cr |
| Gate: |
ASTM A216 Wcb +13cr |
| Stem: |
ASTM A182 F6a |
| Backseat Bushing: |
ASTM a 182 F6a |
| Gland: |
ASTM A182 F6a |
| Gland Eyebolt: |
ASTM A193 B7 |
| Eyebolt Nut: |
ASTM A194 2h |
| Eyebolt Pin: |
ASTM A36 |
| Connection Form: |
Flange |
| Material: |
Carbon Steel |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
Product Description
1)Product enfored standard:
Design & Manufacture: API 6D, API 600
End Connection: ANSI B16.5, B16.34
Inspection and Test: API 598
2)Major parameter:
Size: 2"-48"
Rating: ANSI Class 150LB-2500LB
Materials: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 Actuation: Handwheel, Gear, Motor, Pneumatic
3)Product Features:
Choice of solid, flex or split wedge design
Back seating design
Upset forged T-head stem design
OS&Y construction
Renewable seat rings--seal welded
Full port design
Full length wedge guides
Optional impact hand wheel
Optional lengthen stem
Cast Steel Gate Valve
Our company is the professional manufacturer of valves icluding ball valve, gate valve, check valve, globe valve and butterfly valves etc. It is an ISO9001, API 6D, API 607 and CE approved valve enterprise with 681 competetent staff including 20 engineers and 20 technicians. Now, we are always meeting international standard and our products accord with API, ANSI, ASME, ISO, DIN, BS, JIS and GB
Founded in 1981, Sungo Valves Group Co., Ltd. is a large, professional manufacturer of valves icluding ball valve, gate valve, check valve, globe valve and butterfly valves etc. It is an ISO9001, API 6D, API 607 and CE approved valve enterprise with 681 competetent staff including 20 engineers and 20 technicians. Now, we are always meeting international standard and our products accord with API, ANSI, ASME, ISO, DIN, BS, JIS and GB. We are one of the largest manufacture of valves and accessories in the country.
Currently our assets include a modernized plant and of more than 50 hectares of land, a technical R&D center in Shanghai, sales center, and a valve manufacturing and inspection center. We employ a highly competent staff of 680 including twenty technicians and twenty-two engineers. Since our foundation, we have always devoted ourselves to continual technical innovation.
Furthermore, we have our own CAD valve auxiliary design team, an advanced valve production packing line, computerized NC machine tools, an up-to-date processing center, and more than 330 sets of advanced production and testing equipment. These include material physiochemical test, ray detection, magnetic particle test, and spectral analysis equipment.
Moreover, we can also accept custom OEM orders. With an annual output of more than 3, 600 metric tons, we supply valves worldwide in the power, petroleum, chemical, construction, irrigation, shipping, foodstuff, and pharmaceutical industries. As a result of our advanced technology and excellent quality, our products are exported to clientele in the Middle East, Europe, and throughout Asia.
We have obtained several patents and have received numerous international, national, and regional awards for outstanding product quality. Also, we are a vital member of several national committees and associations that are instrumental in the further development of China.
Adhering to the business principle of "quality creates value", we provide all of our customers with competitive prices, exhaustive service, and excellent, unparalleled quality. Please feel free to contact us for further information.
We are looking forward to working with you.
Founded in 1981, Sungo Valves Group Co., Ltd. is a large, professional manufacturer of valves icluding ball valve, gate valve, check valve, globe valve and butterfly valves etc. It is an ISO9001, API 6D, API 607 and CE approved valve enterprise with 681 competetent staff including 20 engineers and 20 technicians. Now, we are always meeting international standard and our products accord with API, ANSI, ASME, ISO, DIN, BS, JIS and GB. We are one of the largest manufacture of valves and accessories in the country.
Currently our assets include a modernized plant and of more than 50 hectares of land, a technical R&D center in Shanghai, sales center, and a valve manufacturing and inspection center. We employ a highly competent staff of 680 including twenty technicians and twenty-two engineers. Since our foundation, we have always devoted ourselves to continual technical innovation.
Furthermore, we have our own CAD valve auxiliary design team, an advanced valve production packing line, computerized NC machine tools, an up-to-date processing center, and more than 330 sets of advanced production and testing equipment. These include material physiochemical test, ray detection, magnetic particle test, and spectral analysis equipment.
Moreover, we can also accept custom OEM orders. With an annual output of more than 3, 600 metric tons, we supply valves worldwide in the power, petroleum, chemical, construction, irrigation, shipping, foodstuff, and pharmaceutical industries. As a result of our advanced technology and excellent quality, our products are exported to clientele in the Middle East, Europe, and throughout Asia.
We have obtained several patents and have received numerous international, national, and regional awards for outstanding product quality. Also, we are a vital member of several national committees and associations that are instrumental in the further development of China.
Adhering to the business principle of "quality creates value", we provide all of our customers with competitive prices, exhaustive service, and excellent, unparalleled quality. Please feel free to contact us for further information.
We are looking forward to working with you.
