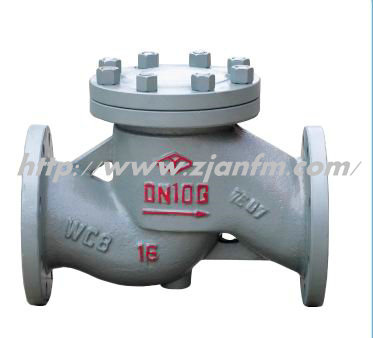

Cast Steel Lifting Check Valve
| Price: |
Negotiable |
| Min Order: |
1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Ddcv Double Lobe |
| Material: |
Cast Steel/ Stainless Steel/ Cast Iron/Brass |
| Structure: |
Lifting or Swing |
| Connection Form: |
Flange, Thread and Welding |
Product Description
Specifications
ANSI lifting type check valve/Cast steel lift check valve/ Carbon steel Lift type check valve/S type check valve/Stainless steel Lift check valve/SS Lifting check valve/Non return check valve
1) Material Body: Carbon steel, ASTM A216 Gr. WCB/A351-CF8 /A351-CF8M /A351-CF3M
Cover plate: Carbon steel, ASTM A216 Gr. WCB/ A351-CF8 /A351-CF8M /A351-CF3M
Seat ring: 13%Cr, Stainless steel, AISI 410, SS304/316
2) Size: 1/2"-42"
3) Class: 150LB-2500LB
4) Lift type
5)Standard: Design API 603
6)UsageFor horizontal or vertical lines
7)Connection: Flanged ends
8)Stainless steel lift check valve/Cast steel lift check valve
Standards:
1) Design and manufacture: API600
2) Face to face/end to end: ANSI B16.10
3) Flange dimensions: ANSI B16.5a
4) Butt welding dimensions: ANSI B16.25
5) Pressure temperature rating: ANSI B16.34
6) Inspection and test: API598.
Zhejiang Anneng Valve Co., Ltd. is a company with develop, exploitation, production and marketing of high-temperature high-voltage station valve. The company has advanced management mechanism and sophisticated equipment for machinery processing and examining, testing, advanced product structure, technical skills. Produce according to the Ministry of superscript, GB, the Industry Standard, and the United States, Japan, Germany, France and other countries standards.
Zhejiang Anneng Valve Co., Ltd. has always been able to reply on science and technology, continuous innovation and strict management system so that the company has set up a complete management system, Product sales, contracts, warehouse, financial, personnel efficiency of the whole company are closely united, guarantee the quality of the products strictly. The company's long-term goal is the company enters the information network, in-depth development of high temperature and high pressure valves and other valve products. The main products are valve, closing valves, Power Station Valve, ball valve, check valve, butterfly valve, the U. S. Standard valves, and other hundreds of different specifications. The main materials used WCB(A 105), WC9(F11), WC9(F22), LCB(ZGCr5Mo), ZG1Cr18Ni9Ti, ZGOCr18Ni12Mo2Ti, CF8(304), CF3(304L), CF8M(316), CF3M(316L), CF7MC20full metal, MONEL, Titanium and so on, Driver forms are: Manual, electrical, pneumatic, (spur, bevel) gear, over-type worm gear and so on. Nominal diameter: DN10mm-1200mmNPS 1/8"-40" Nominal pressure: PN0.6MPa-42MPa API 150LB-2500LB: JIS 10K-63K: Operating temperature: -196° C-600° C; Applicable medium: Water, steam, oil, nitric acid, acetic acid type, the medium-oxidation, urea, oxygen, coal gas, liquid ammonia, ethylene oxide, methanol, Acrylic, propane and so on.
Zhejiang Anneng Valve uses the quality of management, production technology and services to ensure quality assurance, return the majority of uses love of the valves with sound reputation, uses business philosophy "Quality First, the user first" continue applies of new technologies, new processes, and actively develop quality products. Welcomed the new and old customers work together for a better tomorrow!
