| Prod Model: |
2224 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Boss |
| Items: |
2224 |
| Product Name: |
Check Valve |
| Size: |
2"---12" |
| Authorised: |
UL Listed |
| Certification: |
FM Approved |
| Material Type: |
Casting |
| Working Pressure: |
300 Psi |
| Flange Standard: |
ANSI B16.1 Class 125 |
| Surface Finish: |
Epoxy Coating |
| Material: |
Cast Steel |
| Connection Form: |
Flange |
| Structure: |
Swing |
| Function: |
Nrvg Silence |
| Application: |
Household Usage |
Product Description
Specifications
1, FM UL approved.
2, OEM available.
3, 15 years of manufacturing experience.
4, Reasonable price and high quality.

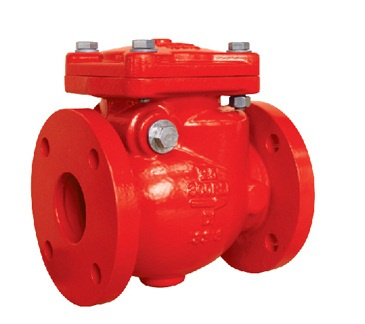

FM UL Approved Flange End Swing Check Valve
Specifications:
Size: 1/2 "-36 "
(1) 150LB - 1500LB Check valve
Connection: RF/RTJ Flange, Butt Welded
Pressure Rating: Class 150LB~ Class 1500LB
Material:A105,LF2,F11,F22,F5,F304,F316,F304L,F316L(1/2" -2 ")
WCB,LCB,WC6,WC9,C12,C5,CF8,CF8M,CF3,CF3M,CF8C(2" -36")
Structural Features: Bolted Cover ,Swing Type Disc,
Threaded or Welded Seat Ring
Suitable medium:water, oil, gas....
Design Standard:
Design & Manufacture Std.: BS1868,ANSI B16.34,API 6D,JIS B2074 B2084
Inspection and Test:API 598, API 6D
Face to Face Dimension :ANSI B16.10 ,JIS B2002
End Flange Dimension:2"-24" to ANSI B 16.5, JIS B2212 B2214
>24": to MSS SP-44,to API 605 on request
Butt-welding End Dimensions to: ANSI B16.25
Packing: wooden case, plywood case
(2) 900LB - 3000LB Check valve
Connection: RF/RTJ Flange, Butt Welded
Pressure Rating: Class 900LB~ Class 3000LB
Material: A105,LF2,F11,F22,F5,F304,F316,F304L,F316L(1/2" -2 ")
WCB,LCB,WC6,WC9,C12,C5,CF8,CF8M,CF3,CF3M,CF8C(2" -36")
Structural Features: Pressure Seal Cover ,Swing Type Disc,
Threaded or Welded Seat Ring
Operating Type: Handwheel, Gear, Pneumatic, Electric
Design Standard:
Design & Manufacture Std.: ANSI B16.34, BS1868
Inspection and Test: API 598, API 6D
Face to Face Dimension:ANSI B16.10
End Flange Dimension:ANSI B 16.5
Butt-welding End Dimensions to: ANSI B16.25
Packing: wooden case, plywood case
