| Prod Model: |
BS-A600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Boss |
| Item: |
BS-A600 |
| Material Type: |
Brass |
| Media: |
Water |
| Size Name: |
1/2"~2" |
| OEM: |
Yes |
| Sample: |
Free of Charge |
| Structure Type: |
Check |
| Package: |
Poly Bag with Carton |
| Temperature: |
-20-150 Degree |
| Connection Form: |
Thread |
| Type: |
Direct Acting |
| Valve Structure: |
Direct Action Diaphragm Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Household Usage |
Product Description

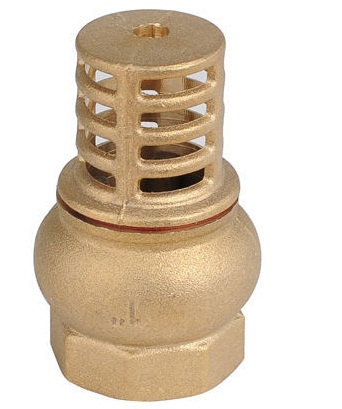

Brass foot valve Technical standard:
1.Nominal Pressure:1.6MPa
2.Working Medium:Water,Non-Causticity Liquid & Saturated Steam
3.Working Temperature: 20oC ≤t≤ 150oC
4.Parallel Pipe Thread to ISO228-1:2000
5.Size:1/2", 3/4", 1", 1 1/2", 1 3/4", 2"
Material:
Part | Material |
| Body | Brass: | Hpb 57-3 | Hpb 59-1 | CW617N | CW614N | DZR | lead free brass |
| Bonnet | Brass as above | Plastic |
| Center Shaft | Brass | Plastic |
| Filter Net | Brass |
| Spring | Stainless steel | Iron |
Technics:
Temperature: -20°C≤T≤150°C |
| Pressure: P≤1.6MPa |
| Medium: Water,Oil,Gas,etc. |
| Thread: M×M threaded as ISO228,BSP,NPT,UNION,ect. |
| Surface treatment: sand-blasting |
