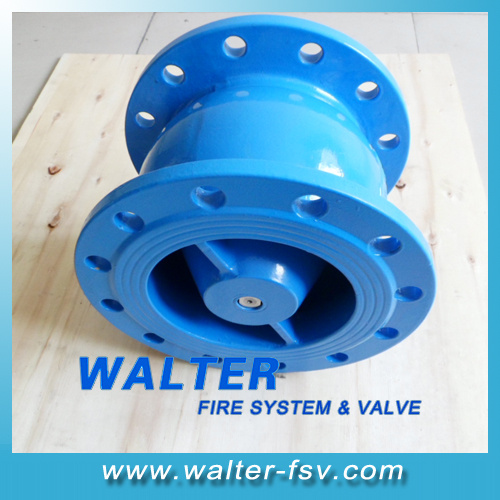

Cvkr Silent Check Valve Dn350
| Price: |
US $ 109/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
CVKR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Silent Check Valve |
| Body: |
Ductile Iron or Ss |
| Spring: |
Ss304 |
| Stem: |
Ss420 |
| Seat: |
Ss304 |
| Washer: |
PTFE |
| Disc: |
D.I + EPDM |
| Size: |
Dn50-Dn600 |
| Pressure Rate: |
Pn10/16/25 |
| Coating: |
Epoxy Coated to 300 Microns |
| Connection Form: |
Flange |
| Material: |
Cast Iron |
| Structure: |
Elevated |
| Function: |
Nrvz Silence |
| Application: |
Water Industrial Usage |
Product Description
Our Silent Check Valve is desgin with BS EN 1074-3 or BS EN 12334 or BS 5163 Standard. The silent check valve have advantage as below:
- Reasonable and Streamlined Design
- Small nosize for direct flow or backflow
- 0.2 Bar Head Loss
- Integral body and flow guide
- Disc with full rubber coated
1- Body/Bonnet: GGG40/50 2- Seat/Stem/Spring: SS304
3- Bushes: C61900 4- DISC: GGG40/50 + EPDM Coating
5- Epoxy Resin coating internal & external, thickness above 300 micron
6- Work pressure: PN10/16/25; Size range: 2" to 24"
7- Connection acc. To EN1074, BS5163, ISO 7259
Silent Check Valve size from DN50 - 600, Material D. I Or S. S.
Walter-FSV Company also provide OEM or ODM for GATE VALVE, BUTTERFLY VALVE, CHECK VALVE, PRESSURE REDUCING VALVE, FLOAT CONTROL VALVE, FIRE HOSE AND FIRE SPRINKLERS.
