| Prod Model: |
DN15-DN300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn15-Dn250 |
| Material: |
Cast Iron |
| Structure: |
Weir Diaphragm Valve |
| Actuator: |
Manual |
| Function: |
Field Bus |
| Connection: |
Flanged Diaphragm Valve |
| Standard: |
JIS |
Product Description
Specifications
1)Size:DN50-DN300
2)Pressure:0.6-1.0Mpa
3)Material:Cast Iron,Ductile Iron
4)Design confirm to BS5156
5)Flange standar BS45
DIAPHRAGM VALVE
Characteristics:
1.Unique product design
Quality assured
Good sealing performance
Excellent corrosion resistance
2.Flange dimensions confirm to GB9113(0.6Mpa)
3. Packaging : Inner packing:Plastic bags, Outer packing:Cartons and wooden case ,or as your requirements
4.Delivery :10-20days after the advance payment

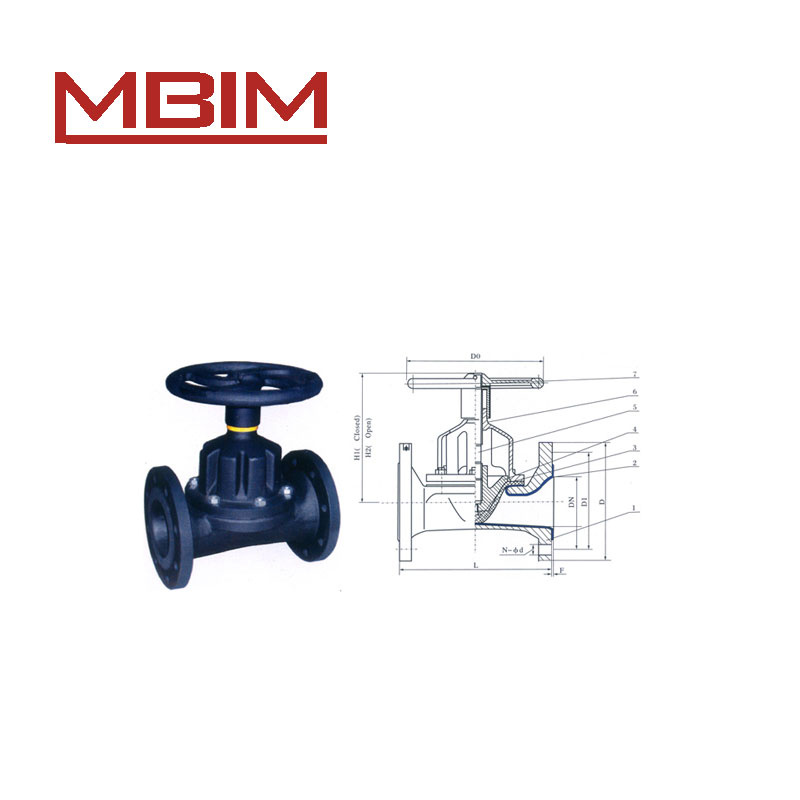

NO.
Parts
Material
1 Body:Cast iron /Ductile cast iron
2 Body lined:FEP,PFA,PCTFE,PO
3 Diaphragm :FEP/CR, PFA/EPDM
4 Valve Clapper:Ductile iron GGG40
5 Bonnet:Ductile iron GGG40
6 Stem :STAINLESS STEEL,Carbon Steel
7 Bush:Plastic
8 Lamella:Cast Iron
9 Seat :EPDM,PTFE,NR,JIR
10 Temperature:-10°C-135 °C
