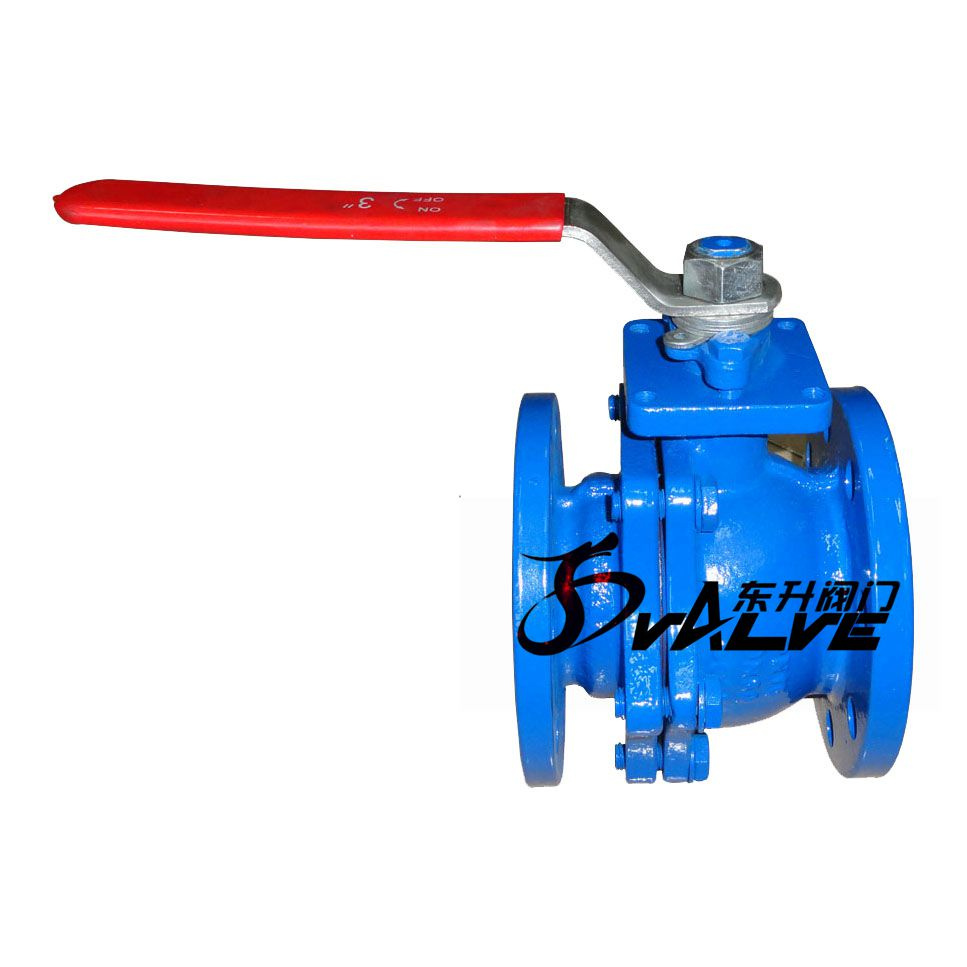

DIN Pn16 Flanged Connection Cast Iron Ball Valve
Price: |
US $ 11.8-1500/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P |
Prod Model: |
BAV-015 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size Range: |
Dn40-Dn200mm |
Face To Face: |
DIN3202 F4 F5;BS En558-2, ANSI B16.10 |
Working Pressure: |
1.0/1.6MPa |
General Design: |
BS, JIS, ANSI, DIN |
End Flange Dimension: |
En1092-2 etc |
Pressure Test: |
DIN3230,API598 |
Medium: |
Water,Oil, Gas etc |
Connection Form: |
Flange |
Channel: |
Straight Through Type |
Structure: |
Fixed Ball Valve |
Type: |
Fixed Ball Valve |
Application: |
Water Industrial Usage |
Material: |
Cast Iron |

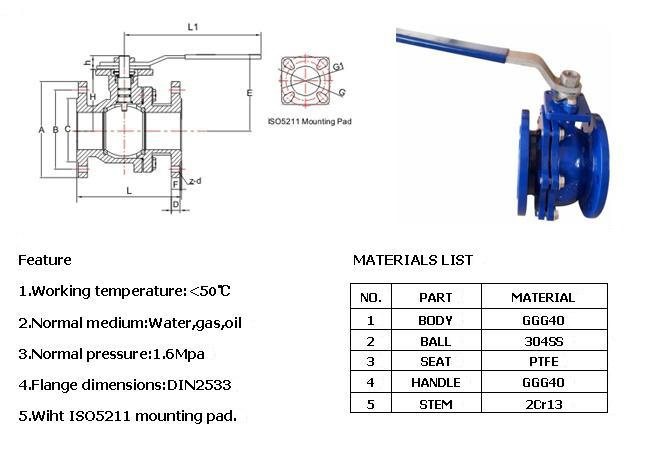

Product Description
Body:Cast iron/Ductile ironNut/bolting:Carbon Steel Ball:Stainless Steel 304
Seat:PTFE
Stem:SS304
Lever:Ductile Iron(GGG40)
Operation:handle lever/gear box/actuatorsSize:DN25~DN250Pressure:PN10/16 Standard:
Working temperature: -20 °C ~ +120 °C
Face To Face :DIN3202 DN15-DN100 DIN3202 (F4)
DN125-DN250 DIN3202 (F5)
End Flange Dimensions:EN 1092-2 etc.
Testing:DIN3230,API598
Medium:Water,oil,gas etc.

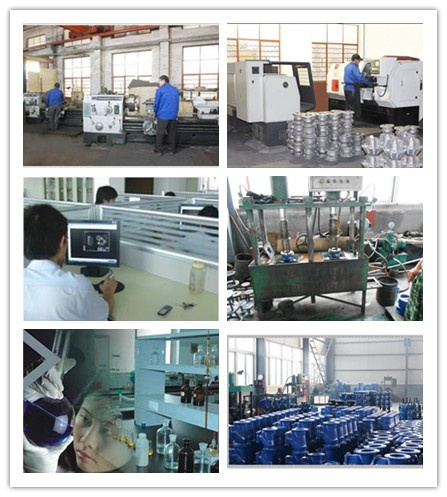

Factory Show
Product Package
![](/proimages/44f3j00IEWtMGkBqfus/din-pn16-flanged-connection-cast-iron-ball-valve.jpg)
Laizhou dongsheng valve co.,Ltd is a professional valve plant, is a collection of research and development, design, the manufacture, the sale of integrated specialized company. Our main products are series of check valves, including all kinds of single disc swing check valve, double disc swing check valve, flange and threaded ball check valve, flange and wafer silent check valve, stainless steel lift check valve, diaphragm valve, ball valve and butterfly valve etc.
We hold a set of scientific and strict management system, strong technical force, advanced processing equipment and reasonable technical progress, high technology and quality technicists and workers. We have 200 employees, and our factory area is 30000 square meter. We always hold "Do to the quality of survival, to the credibility of development.", so we produce every product carefully and treat every customer sincerely. Our products are used to open and close the pipeline of oil, chemical, water, gas and food etc. Our products are exported mainly to Europe, America, Africa, Southeast Asia, the Middle East and Russia etc. Our products are praised by foreign and domestic customers.
We own good quality certificated by ISO9001 and CE. Welcome friends from home and abroad to visit us. And we look forward to having a sincere and favorable cooperation with you.
