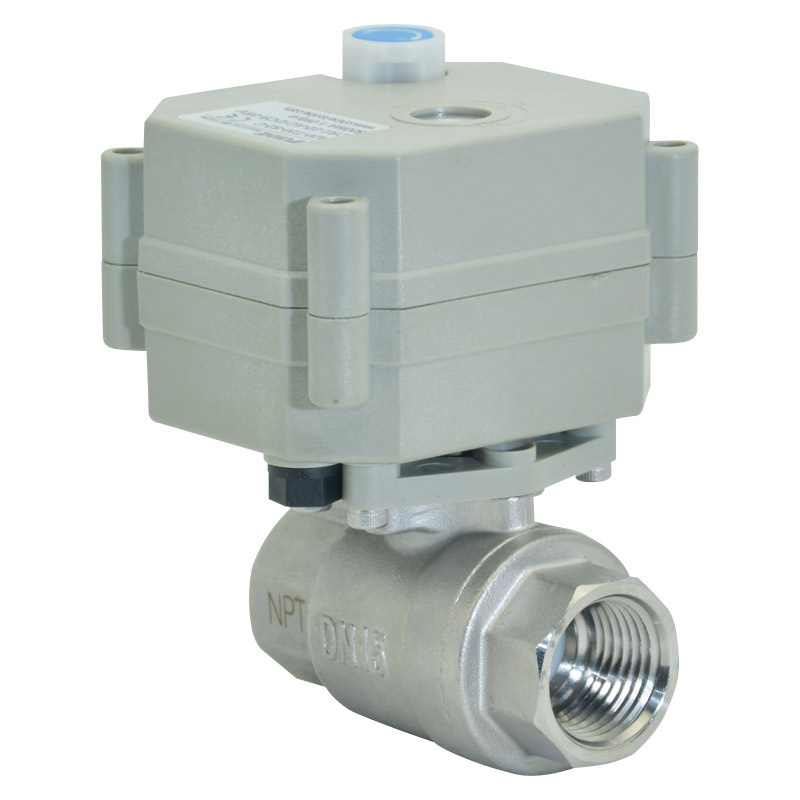

Home Valve Products Dn15 1/2'' 2-Way DC5V/12V/24V Stainless Steel Ball Valve Electric Drinking Water Control Valve with NSF61 Certificated
Dn15 1/2'' 2-Way DC5V/12V/24V Stainless Steel Ball Valve Electric Drinking Water Control Valve with NSF61 Certificated
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
90/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Specifications:
Model: T15-S2-B-CR201
Size: 1/2''
Internal diameter: 15mm
Rated Voltage: DC5V/DC12V/DC24V
Working current: less than 80MA
Open/close time: less than 5S
Wiring control: CR2-01
Life time: 70000 times
Manual override: YES
Indicator: YES
Max. working pressure: 1.0MPa
Actuator material: Engineering Plastics
Sealing material:EPDM & PTFE
Body: Stainless steel
Max. torque force: 2 Nm
Cable length: 50cm
Actuator rotation: 90 degree
Liquid temperature: 2 Celsius-90 Celsius
Environment temperature: -15 Celsius-50 Celsius
Protection class: IP67
Application :
IC card meters, heat energy meters, air-warm valve.
Heating & Cooling HAVC systme
Water equipments, auto-control water system, industrial mini auto equipment..
Irrigation equipment
Drink water equipment.
Leak detection & water shut off system
Prod Model: |
T15-S2-B-CR201 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Valve Size: |
Dn15 1/2'' |
Material: |
Stainless Steel |
Pressure: |
Medium Pressure |
Temperature Of Media: |
Normal Temperature |
Protection Class: |
IP67 |
Torque: |
2n.M |
Certification: |
CE, SGS, NSF61 |
Life Time: |
70000 Times |
Actuator Material: |
Engineering Plastics |
Sealing Material: |
EPDM & PTFE |
TaizhouTonhe Flow Control Equipment Co., Ltd. is a professional manufacturer and exporter of electric control valves from 2008, We always pay high attention to the quality control and new products R&D. Specialized in motorized valves, electric fluid control valves, electric actuator, with intelligent design, manufacture, sales and technical service.
Our main products are Tonhe series straight-through motorized valve, Has compact size with smart shape, Perform reliably, with long life time, intelligent control, high torque actuators, low noise, no leak, and many other features. They are widely used in automatic water pump tanks, automatic watering, heat meter, central air conditioning fan coil, fire sprinkler, water treatment, water efficiency, solar instrument, Agriculture Irrigation equipment, industrial automatic control equipment, and so on.
All along, the research unit, institute strong support and concerted efforts of all colleagues, continually improved products, innovation, and a number of products for thentility model patents, and we will always maintain the idea that the pursuit of perfection to develop more products for the world to intelligent control fluid. Mechanized production lines in operation, to secure stability and excellent product quality to meet customer requirements.
Personnel training, stability, is an important strategy of company' growth and development, we take the talent as our company greatest wealth.
Talent is the fundamental driving force of enterprise development, enterprise is also the cradle of talent, In order to make personal pursuit and enterprise development to be harmonious, we establish long term cooperation with the School of Continuing Education of Tsinghua University, Taiwan Jian-feng MBA Group, and other Group, Every year, we select a number of staff to go to training, learning, in order to achieve growth of employees and enterprise together.
We will uphold the "customer first, forge ahead" business philosophy, adhere to the "customer first" principle, to establish a positive corporate image, enhance corporate cohesion, with a view to alliance with the community to reach a long-term cooperative relations of mutual trust and seeking common development, create brilliant.
