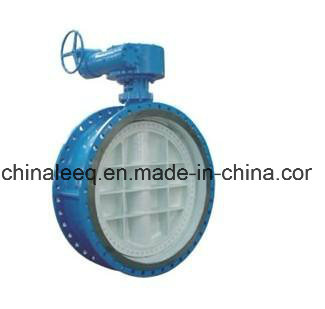

Double Eccentric Flanged Butterfly Valve

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form:	Flange
Structure:	Double-Eccentric Sealing
Work Pressure:	Mid-Pressure (',2.5mpa< Pn <6.4mpa)
Working Temperature:	Medium Temperature (',120??C
Application:	Water Industrial Usage

Product Description

Quick Details

Standard or Nonstandard:	Standard	Structure:	Butterfly	Pressure:	Low Pressure
Power:	Manual	Material:	Casting	Temperature of Media:	Medium Temperature
Media:	Water	Port Size:	DN500-DN2000	Place of Origin:	Hebei, China (Mainland)
Model Number:	DEBS	Brand Name:	Liqian

Packaging & Delivery

Packaging Details:	sea worthy ply wood cases
Delivery Detail:	45 DAYS

Specifications
1,High quality and competitive prices
2,double eccentric structure with reliable seal.
3,double plate truss structured disc
Sizes from DN500-DN2000
Design:EN593
End Connetction:EN1092
Face to Face:ISO5752,EN558
Test:DIN3230,API598

Main Use:
This valve is suitable for industrial pipe line and could be used for double direction open-close and equipment flow adjustment. The adjustment range is from 40 deg up to full open 90 deg.
Suitable Field:water plant,power plant,water feed-drainage system,and the pipe line in which the mdium speed is no more than 3m/s.

Features:
The valve is double eccentric structure with reliable seal.When it is opened, the sealing part friction torque is small,so the abrasion on the sealing part is reduced,as to keep long sealing life.
The valve's disc is double plate truss structure,and can make sure the big flow area and low flow resistance.
