Prod Model: |
HL-05 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Connection Form: |
Flange |
Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
Working Temperature: |
Normal Temperature (',-40??C
|
Application: |
Water Industrial Usage |
Material Of Seal Surface: |
Metal Hard Sealed |
Product Description
Quick Details:
Standard or Nonstandard: Standard
Structure: Butterfly
Pressure: Low Pressure
Power: Electromotion
Material: Stainless Steel
Temperature of Media: Low Temperature
Media: Water
Place of Origin: Zhejiang, China (Mainland)
Model Number: HL-5
Brand Name: HELI
Packaging & Delivery
Packaging Details: Foam package inside, Carton outside
Delivery Detail: Within 7 days after receiving payment
Specifications:

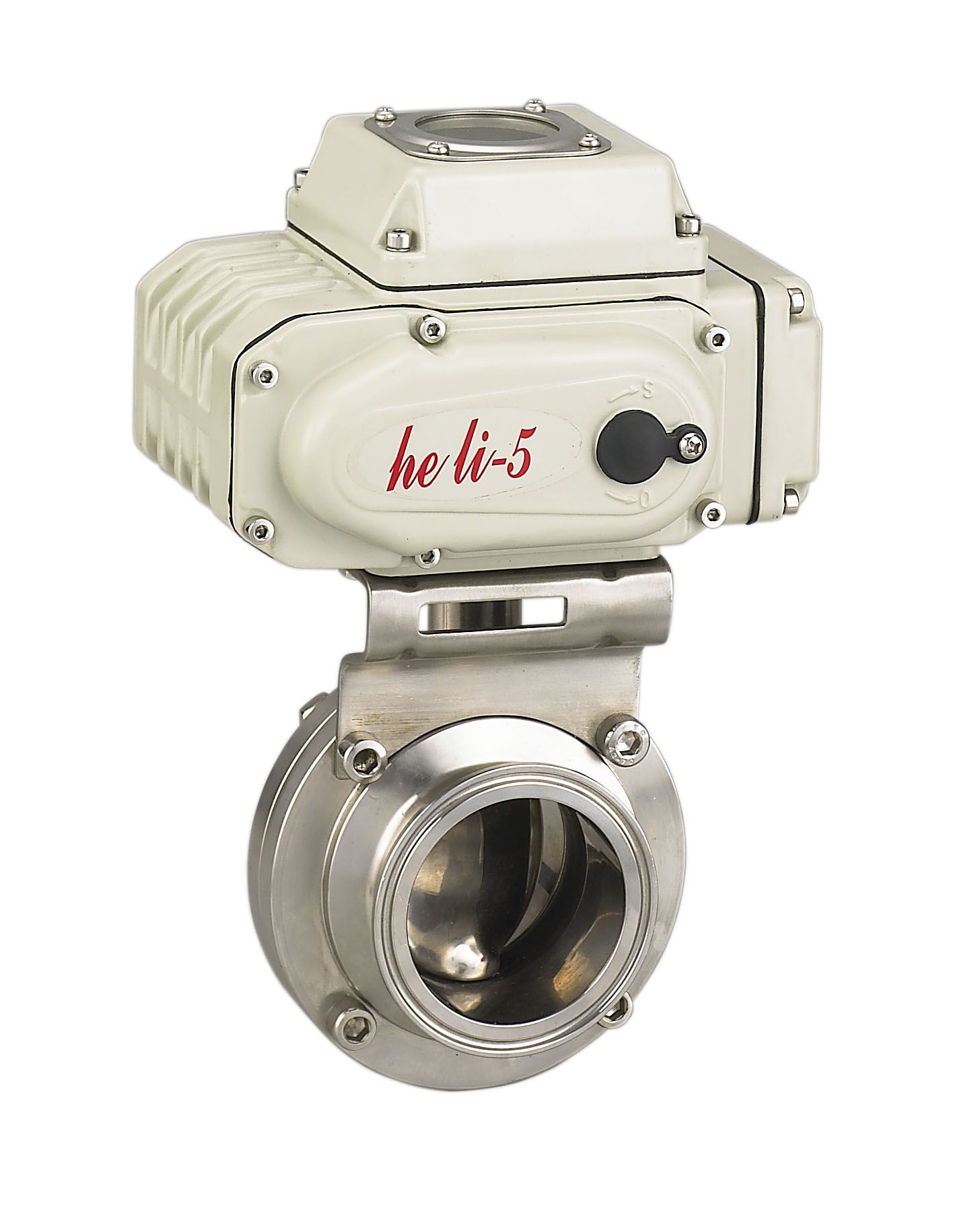

Motorized butterfly valve
*High quality production
*100% tested and quality controlled products
*Easy installation
1)Motorized butterfly valve
2)Packing: Expot case
3)Protection class: IP-67
4)Input signal: 4~20mA, 0`10VDC or 1~5VDC
5)Valve material: Stainless iron
Item Power Performance | HL-05 |
DC12V | DC24V | DC220V | AC24V | AC110V | AC220V | AC380V |
|
Motor power | 20W | 10W |
Rated current | 3.8A | 2A | 0.21A | 2.2A | 0.48A | 0.24A | 0.15A |
|
Output torque | 30Nm/50Nm | 15Nm/30Nm/50Nm |
Action time | 6S/10S | 10S/20S/30S |
Circuit control | B,S,R,H,A,K,D,T |
Rotary angle | 0-90° |
Weight | 2.2kg |
Voltage-withstangdingvalue | 500VAC/1minute(12V,24v) | 1500VAC/1minute(110V,220V,380V) |
Insulated resistance | 100MΩ/300VDC(12V,24V) | 100MΩ/500VDC(110V,220V,380 |
Protection class | IP-67 |
Surrounding temperature | -25ºC-60ºC(The other temperatures can be customized) |
Installation angle | Any angle |
Case material | Aluminium die-casting components |
Optional function | Overload protection function .Heater |
Wenzhou Heli Automatic Meter Co., Ltd. (HL) is a High-tech enterprises specialized in manufacturing electric actuator, pneumatic actuator, rotary air damper actuator, integrating scientific research, production, distribution and service.
Founded in 1999, covers an areas of 13118 square meters. HELI company consistently pays attention to product quality and all of HELI products have passed the CE certification, the test of Shanghai industrial Automatic Instrument Institute with every performance and index qualified, etc.
HELI will bring you much more convenience. By consistently keeping the management conception of taking market as guide, serving by quality and credit, and developing by technology and innovation. Our company guarantees to realize the goal of double-win with user's benefits as precondition. In the future, HELI people will actively take the challenge with excellent quality, scientific management and perfect service.
Sincerely welcome friends all over the world to come here for negotiation and cooperation.
