Excess Pressure Valve (Type 2114/2418)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
2/Piece |
| Pay Type: |
T/T |
| Prod Model: |
Type 2114/2418 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard: |
JIS |
| Application: |
Oxygen Globe Valve |
Product Description
Design and principle of operation The Type 2114/2418 Excess Pressure Valve Consists of the Type 2114 Control Valve and The Type 2418 Opening Actuator.
The excess pressure valve is used to keep the Upstream pressure constantly on the preset Set point.
The valve opens when the upstream pressure Increases.

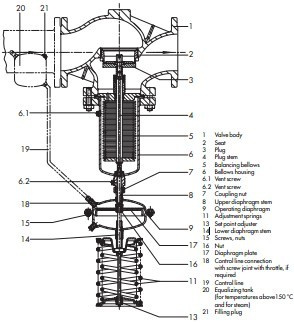

The process medium flows through the valve Between seat (2) and plug (3) in the direction Indicated by the arrow.
The position of the valve plug determines the Flow rate, and hence the pressure ratio at the Valve. The upstream pressure is transmitted Via the control line (19) to the operating di-aphragm where it is converted into a positio-ning force. The positioning force is used to Move the valve plug, depending on the force Of the adjustment springs (11). The load of The springs can be adjusted at the set point Adjuster (13).
The control valves are equipped with a ba-lancing bellows (5), the outside of which is Subject to the upstream pressure and the in-side to the downstream pressure. In this way, The forces occurring at the valve plug due to The upstream and downstream pressure can Be balanced out.
Shanghai ThinkTank Process Management Co., Ltd. is the sole production and R&D institute of Taiwan STONE Company in Mainland China. ThinkTank entered Chinese market in 2002 and moved from Hangzhou to Shanghai headquarter in 2012. Based on over 30 years experience in researching and manufacturing automatic instruments, brining in overseas advanced technology and combining domestic users real working situation, ThinkTank is specialized in producing new typed self-regulating valves, control valves and various kinds of automatic instruments. ThinkTank's business includes engineering projects such as electricity, metallurgy, petrochemical processing, light industry and building materials, municipal water service and natural gas.
Enterprise history
1985.08 Taiwan STONE company was established in Taipei city.
1990.02 Sales network covered Southeast Asia.
2002.06 Branch office was fund in Hangzhou, Zhejiang, handling all business in China
2012.10 Mainland head office was moved to Pudong, Shanghai
Shanghai ThinkTank Process Management Co., Ltd. Has a professional team works for control valves design and engineering application. ThinkTank develops a series of hi-tech products after absorbing overseas advanced technology and innovating.
*New self-regulating, micro pressure, differential pressure, flow, temperature control valve
*New pneumatic (electric) linear actuator (low dB, high pressure) control valve
*Pneumatic (electric) rotary actuator (O/V ball, butterfly) control valve
*Pneumatic (electric) special corrosion resisting control valve
Shanghai ThinkTank Process Management Co., Ltd sticks to the policy of "client oriented, quality comes first, and faith is root". Depending on many years experience on engineering application in various industries, ThinkTank provide clients with good, reliable full service, focusing on maximizing the rate of return on investment for clients.
Shanghai ThinkTank Process Management Co., Ltd. is the sole production and R&D institute of Taiwan STONE Company in Mainland China. ThinkTank entered Chinese market in 2002 and moved from Hangzhou to Shanghai headquarter in 2012. Based on over 30 years experience in researching and manufacturing automatic instruments, brining in overseas advanced technology and combining domestic users real working situation, ThinkTank is specialized in producing new typed self-regulating valves, control valves and various kinds of automatic instruments. ThinkTank's business includes engineering projects such as electricity, metallurgy, petrochemical processing, light industry and building materials, municipal water service and natural gas.
Enterprise history
1985.08 Taiwan STONE company was established in Taipei city.
1990.02 Sales network covered Southeast Asia.
2002.06 Branch office was fund in Hangzhou, Zhejiang, handling all business in China
2012.10 Mainland head office was moved to Pudong, Shanghai
Shanghai ThinkTank Process Management Co., Ltd. Has a professional team works for control valves design and engineering application. ThinkTank develops a series of hi-tech products after absorbing overseas advanced technology and innovating.
*New self-regulating, micro pressure, differential pressure, flow, temperature control valve
*New pneumatic (electric) linear actuator (low dB, high pressure) control valve
*Pneumatic (electric) rotary actuator (O/V ball, butterfly) control valve
*Pneumatic (electric) special corrosion resisting control valve
Shanghai ThinkTank Process Management Co., Ltd sticks to the policy of "client oriented, quality comes first, and faith is root". Depending on many years experience on engineering application in various industries, ThinkTank provide clients with good, reliable full service, focusing on maximizing the rate of return on investment for clients.
