Prod Model: |
200X |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Packaging & Delivery
Packaging Detail: Pressure reduce valve packed in plywood case
Delivery Detail: Within 10 days
Specifications

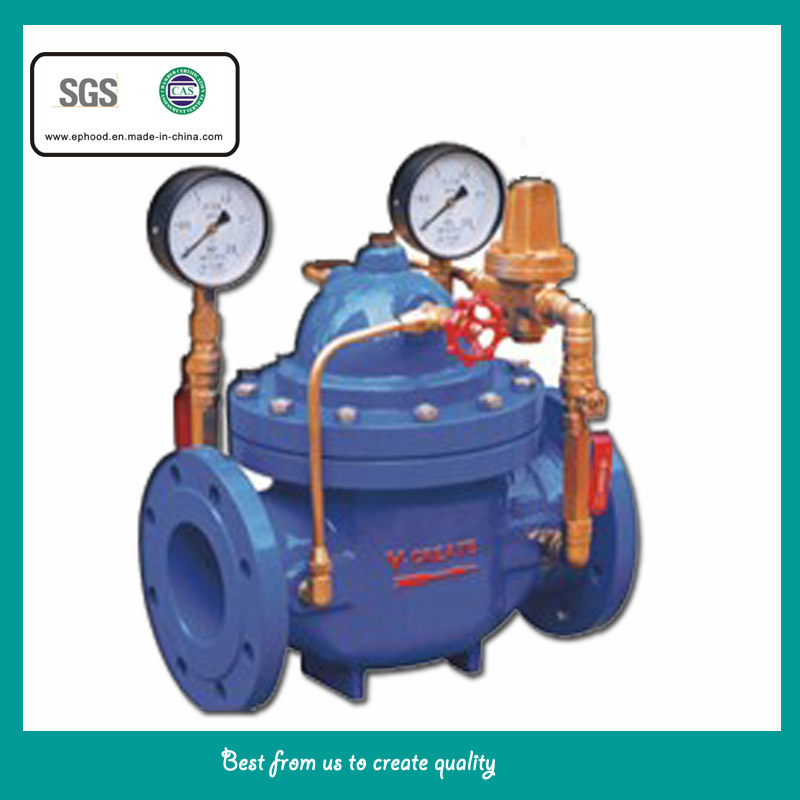

200X flange type water Pressure Reduce Valve
1. High Quality
2. Low Price
3. Fast Delivery.
200X flange type water Pressure Reduce Valve
1. Pressure reduce valves overview
The valve maintains a preset downstream pressure, regardless of upstream pressure or flow fluctuation. The main valve is controlled by a pilot valve, which makes the main valve modulating to maintain the downstream pressure.
The main valve comprises valve body, diaphragm, stem assembly, and seat. The valve is separated by diaphragm into two chambers, up and down. The upper chamber is control chamber, and down chamber is flow through chamber. The valve stem is driven by diaphragm up and down, and driven force comes from the differential pressure taken by two sides of diaphragm.
2. Main features
The 200X pressure reducing valve is an intelligent valve that uses the self energy of the medium to regulate and control the pressure in pipes. The 200X pressure reducing valve can be used in domestic water supply, fire fighting water supply and other industrial water supply systems. The outlet pressure of the main valve can be regulated through the adjustment of the pressure reducing valve; The outlet pressure does not vary along with the inlet pressure and inlet flow. Accordingly, the outlet pressure can be safely and reliably maintained at a preset value and the preset value can be adjusted according to actual needs to obtain your pressure reducing goal. This valve is precise in pressure reduction, stable in performance, safe, reliable, easy, convenient to install and adjust and offers a long service life.
3. Advantage
1. We can promise the quality;
2. If you want, you can have your own logo on the product;
3. We offer the non-standard valve, according to customer requirments;
4. Export to maninly market: Russia/Ukraine/Belarus/Uzbekistan/Tajikistan/St. Peterburg /The European market and other countries.
Structure
|
Diaphragm
|
Working Temperature :
|
120 °C
|
Working pressure
|
16bar 1.6MPa
|
Power
|
Manual
|
Tubes
|
Copper
|
Bolts/Nuts
|
Stainless steel
|
Painting:
|
Deep Blue Epoxy power coating t=250μm
|
Body/Cover Material
|
Ductile iron
|
Temperature of Media
|
Normal Temperature
|
Media
|
Water
|
Port Size
|
DN 32-600
|
Place of Origin
|
Jiangsu, China (Mainland)
|
Model Number
|
200X
|
Brand Name
|
ephood
|
We are valve manufacturer specialized in the industrial valves utilized in the server application environment against high temperature, high pressure, high corrosive and low temperature or cryogenic application ranging from petrochemical, offshore, chemical, gas, power plant, shipyard to long distance pipeline and pharmacy or other industries. Valve types vary from ball valve, globe valve, check valve, gate valve, butterfly valve to plug valve, and also from tank bottom valve, sampling valve, double block & bleed valve, strainer to sight glass.
Valve material are available from Titanium, Nickel alloy, Zirconium, Nickel-Aluminum-Bronze, (Super) Duplex to alloy 20#, 904L, 310S, 321, 347 or other anti-corrosive alloys. With emphasis on quality consistency and innovative design, we gradually turn to be reliable business partner for plenty engineering companies and end users all over the world.
