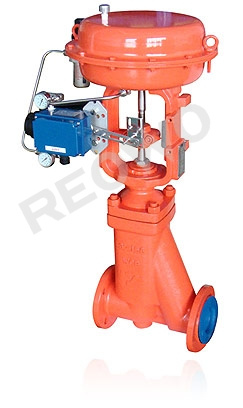

The 10P51F Series single-seat fluorine lined control valve adopts full fluorine lined body and trim structure to effectively prevent the corrosion of metal materials in the valve by corrosive media. The metal body cavity is subjected to serrated machining treatment so as to make the lining materials fully fit into the metal and prolong the service life and performance of lining materials. The stem seal is the compound seal of F46 bellows seal and V PTFE packing, which can eliminate the possibility of media leaking from the stem to the outside. The unbalanced full lined control valve is especially suitable for very corrosive media under low pressure and normal temperature service conditions.
Parameters of control valves:
Trim features: unbalanced plug
Lined seat
Body type: straight-through type
Bonnet type: bellows type
Flow characteristic: equal percentage
Linear
Quick open
Size: DN15-300(1/2"-12")
Pressure class: PN1.6\4.0Mpa(ANSI 150\300LB)
Leakage class: ASME B16.104 V(standard type seat)
Pipe connection type: flange type
Applicable temperature range: -45C° ~ 200C°
Actuator type: pneumatic diaphragm actuator
Pneumatic piston actuator
Electric actuator
