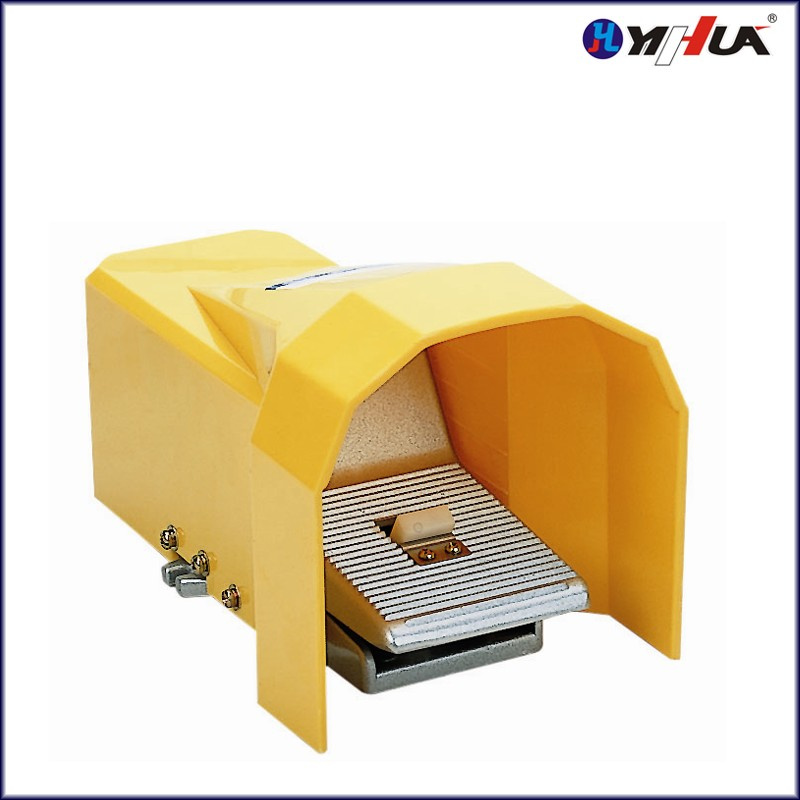

Foot Valve (FOV series)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
FOV-520AC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Pneumatic Valve |
Product Description
Foot Valve
|
FOV |
- 520 |
- A |
|
Type |
The position: |
Blank:Fixed type |
|
|
320: 3/2 |
A:Spring fixed type |
|
|
520: 5/2 |
C:Fixed type & protection cover |
|
|
|
AC:Spring fixed & protection cover |
|
Model |
Outlet number |
The position |
Diameter |
Pressure applied |
Pressure withstand |
Working temperature |
|
FOV-320 |
3 |
3/2 |
G1/4 |
0-0.8MPa |
1MPa |
5-60ºC |
|
FOV-320A |
|
FOV-320C |
|
FOV-320AC |
|
FOV-520 |
5 |
5/2 |
G1/4 |
|
FOV-520A |
|
FOV-520C |
|
FOV-520AC |
