Prod Model: |
2W31 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size Option: |
3/8"---2" |
Body Material: |
Brass |
Voltage Option: |
12VDC, 24VDC, 110VAC, 220VAC, 230VAC, 240VAC |
Pressure: |
0-10bar |
Seal: |
NBR, Viton, EPDM, PTFE |
Media Temperature: |
-5 ~80 Degree Centigrade |
Media: |
Gas, Water, Liquid |
Type: |
Distribution of Direct Acting |
Connection Form: |
Thread |
Valve Structure: |
Direct Action Diaphragm Structure |
Application: |
Water Industrial Usage |
Power Supply: |
AC /DC |
Product Description

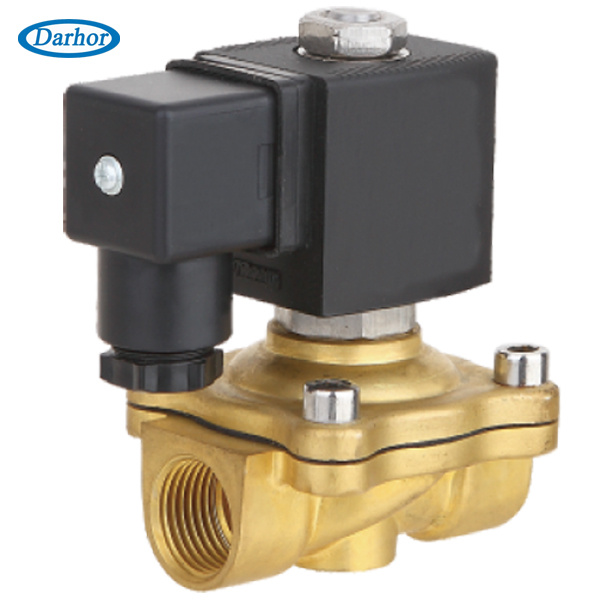

2W series electric valve solenoid
1, one year guarantee
2, CE, ISO certificates
3, good quality, fast delivery
Characteristic:
1. Direct lifting diaphragm construction;
2. Open from zero bar for low pressure system use;
3. High frequency of flying lead coil.
Medium: Air, City Gas, Water, Oil, Petroleum, etc.
Temperature:
NBR Seal: -10° C to 80° C
EPDM Seal: -30° C to 120° C
VITON Seal: -30° C to 150° C
Pressure: 2W31: 0 ~ 10bar N. C
Port Size: 3/8", 1/ 2", 3/4", 1", 1 1/4", 1 1/2", 2"
Port Thread: G, BSP, NPT, Flange
Orifice (mm): 12, 15, 20, 25, 32, 40, 50
Voltage:
DC - 12V, 24V
AC - 24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Tolerance: +/- 10%
Coils:
Y32B, 40VA (AC), 18W (DC), IP65, 100%ED
Y42B, 50VA (AC), 20W (DC), IP65, 100%ED
S51B: 30VA (AC), 24W (DC), IP65, 100%ED
S91B: 22VA (AC), 17W (DC), IP65, 100%ED
SD01B: 28VA (AC), 36W (DC), IP65, 100%ED
Material:
Body- Brass or Stainless Steel
Seal -NBR, EPDM or VITON
Armature Tube- Stainless Steel 304
Plunger- Stainless Steel 430F
Stop- Stainless Steel 430F
Springs- SS 304
Shading Rings- Copper
2W31 Normally closed, with Coil S91B/SD01B
Valve Body |
Port Size |
Orifice |
Cv |
Min Pressure(bar) |
Max Pressure(bar) |
Coil |
AC(40VA) |
DC(18W) |
S91B |
2W3112XXX |
3/8″ |
12 |
4.5 |
0 |
10 |
10 |
S91B |
2W3115XXX |
1/2″ |
15 |
4.5 |
0 |
10 |
10 |
S91B |
2W3120XXX |
3/4″ |
20 |
9.3 |
0 |
10 |
10 |
S91B |
2W3125XXX |
1″ |
25 |
12 |
0 |
10 |
10 |
S91B |
|
|
|
|
|
AC(28VA) |
DC(36W) |
|
2W3132XXX |
1 1/4″ |
32 |
24 |
0 |
10 |
10 |
S91B |
2W3140XXX |
1 1/2″ |
40 |
29 |
0 |
10 |
10 |
S91B |
2W3150XXX |
2″ |
50 |
48 |
0 |
10 |
10 |
S91B |
