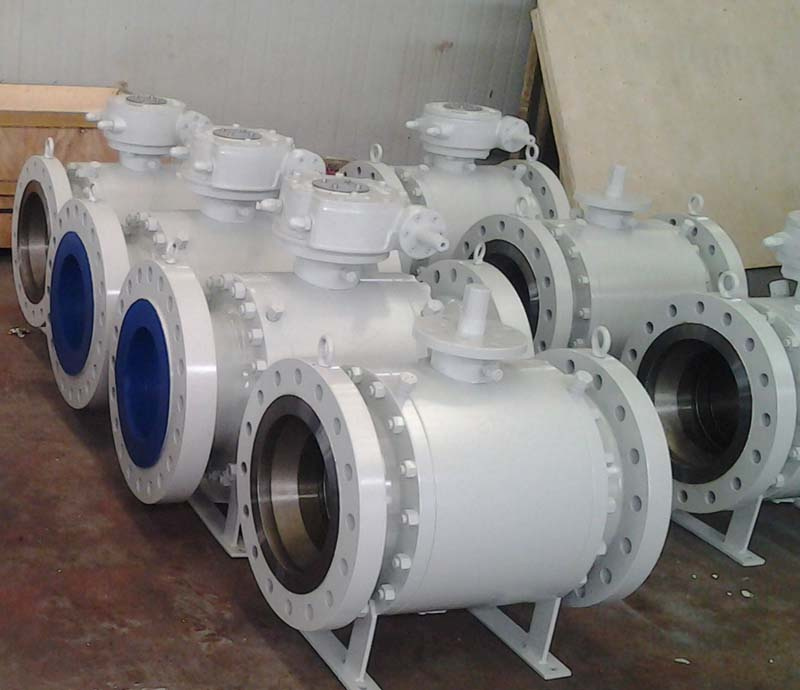

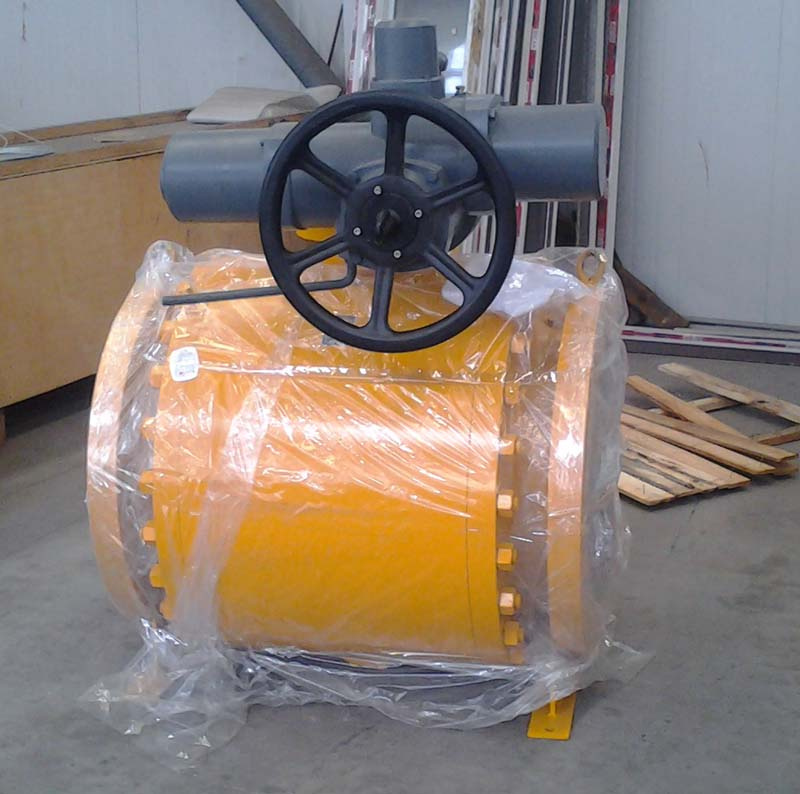

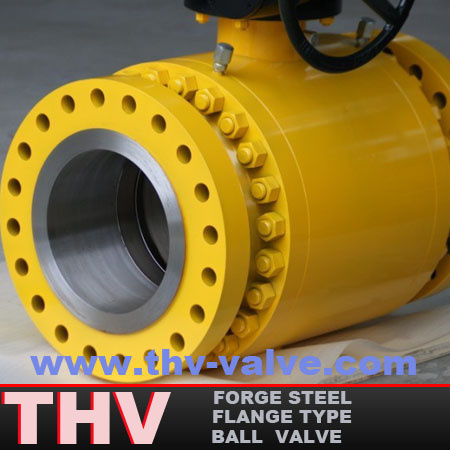

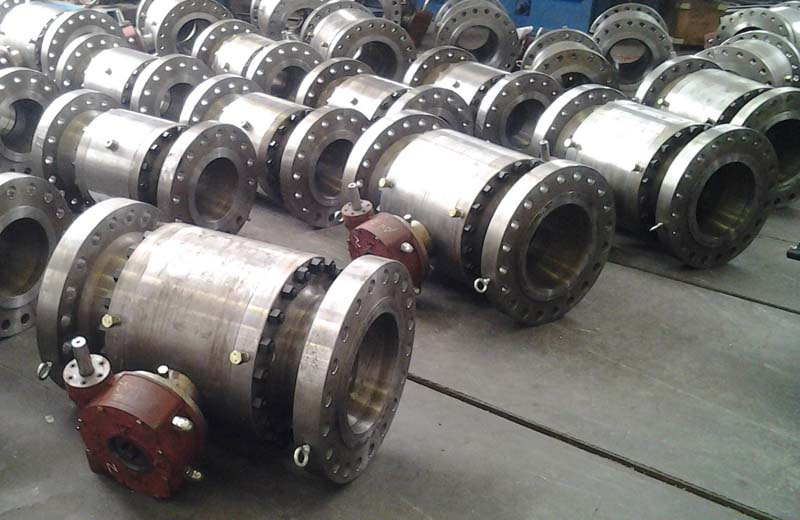

Forged Steel Flanged Ball Valve
| Price: |
US $ 1000-1022/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
THFSQ347 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Trunnion |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Industrial Usage |
| Material: |
A105 |
| Function: |
Flow Control |
Product Description
This kind of ball valves are designed in accordance with API6D. It has split body type of 2 PC or 3 PC, and entry type of side or top design. Sealing material including PTFE, Peek, Nylon, etc. And metal sealing is also optional for ball valves to make working temperature range more higher. This series of valves are optional designed with Double block and bleed or double piston type. All valves are equipped with sealant injection system for both stem and seats to allow external intervention to prevent seat or stem leakage. The top entry ball valve can be used for in-line maintenance services.
Design Feature:
Full port or reduce port
Fire safe certified
Double block & bleed
Emergency sealant injection
Cavity pressure self relief
Blowout-proof stem
Antic-static
Optional double piston design
| Standard material specifications |
| Part name | Material |
| Body | A105 | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
| Body cap | A105 | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
| Ball | A105+Nip | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
| Stem | A105+Nip | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
| Seat | A105+Nip | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
| Seat ring | PTFE/RPTFE/NYLON |
| Fixed turnnion | A105+Nip | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
| O-ring | VITON | VITON | VITON | VITON | VITON |
| Contact spring | 17-7PH/In conel | In conel | In conel | In conel | In conel |
| Cover bolt | A193 B7 | A193 B8 | A193 B8M | A193 B8M | A193 B8M |
| Cover nut | A194 2H | A194 8 | A194 8M | A194 8M | A194 8M |
| Bearing | SF-1 | SF-1 | SF-1 | SF-1 | SF-1 |
Yongjia Taihong Valve Co., Ltd. (THV VALVE) is a professional high pressure valves manufacturer for application primarily in the petrochemical industry. Our product range consist of GATE VALVES, GLOBE VALVES, CHECK VALVES, BALL VALVES, BUTTERFLY VALVES & STRAINERS. All valves are designed, manufactured and tested according to the latest manufacturing specifications of the American and International Standards Organizations.
We possesses extrusion dies heat mechanical processing, welding, assembling, testing, etc. facilities. And also our company has a strong CAD design team and a professional QC team. Our strong production equipments and perfect testing means can effectively improve product quality and be sure users' interests.
THV VALVE has obtained certificates of ISO9001: 2008 and CE. All valves are with features of advanced structure, consummate production technology, complete specifications, good quality, etc. To satisfy the requirements of purchasing different types of valves from customers, we have established a trading department to purchase good quality products for our customers. All suppliers are listed in our SUPPLIER LIST after strict quality examining, and our QC will do inspect from raw materials to finished products, to ensure all specifications or requirements will not occur problems.
Quality first is our commitment, and competitive price and timely delivery are our promise. Our customers have trusted us to provide them with reliable valve products to meet their most severe and critical requirements. We welcome customers worldwide to build mutually beneficial network, and we are looking forward to cooperation with you on the successful road to create brilliant!
