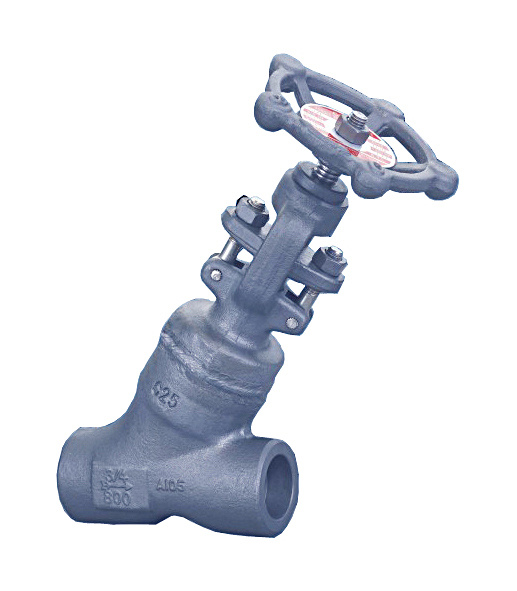

Forged Steel Y Type Socket Weld Globe Valve
Price: |
US $ 8-10/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
J11H-150LB |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
3/8"--2" |
Structure: |
Through Way Globe Valve |
Stem Thread Position: |
Outside Screw Stem Globe Valve |
Sealing Form: |
Gland Packings Globe Valve |
Standard: |
BSW |
Application: |
Bellows Globe Valve |
Product Description
Connection Form:Socket Weld
Material:Carbon Steel
Application:Industrial Usage, Water Industrial Usage
Size:3/8" to 2"
Export Markets:Global
Product Description
Forged steel globe valves
valves are in three bonnet designs.
Bolted bonnet / welded bonnet / pressure seal bonnet.
800LB / 1500LB / 2500 LB
Reduced port or full port
Design standard: API 602 / ASME B 16.34 / BS5352
Socket Welded Ends: ASME B 16.11
Test standard: API 598
Marking standard: MSS SP-25
Materials Available: A105 / LF2 / F304 / F304L / F316 / F316L / F11 / F22 / F5 / F91. Etc.
PART NAME |
CStoASTM |
AStoASTM |
SStoASTM |
|
A105 |
F22 |
F304L |
F316L |
BODY |
A105 |
A182 F22 |
A182F 304L |
A182 F316L |
SEAT |
A276 420 |
A276 304 |
A276 304L |
A276 316L |
WEDGE |
A182F 430&410 |
A182 F304 |
A182F 304L |
A182 F316L |
STEM |
A182 F6 |
A182 F304 |
A182F 304L |
A182 F316L |
GASKET |
316 WITH GRAPHITE |
316 WITH PTFE |
BONNET |
A105 |
A276 F304 |
A276F 304L |
A276 F316L |
BOLT |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
PIN |
A276420 |
A276 304 |
GLAND |
A276410 |
A182F 304L |
A182F F316L |
GLAND EYEBOLT |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
GLAND FLANGE |
A105 |
A182 F11 |
A182F 304L |
A182F 316L |
NUT |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
STEM NUT |
A276 420 |
LOCKING NUT |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
NAME PLATE |
SS |
HANDWHEEL |
A197 |
GASKET |
A473431 |
|
PACKING |
GRAPHIT |
PTFE |
