Gate Valve 800Lb
| Price: |
Negotiable |
| Min Order: |
1 |
Product Description
Gate Valve 800Lb
Note: Other materials are available upon request.

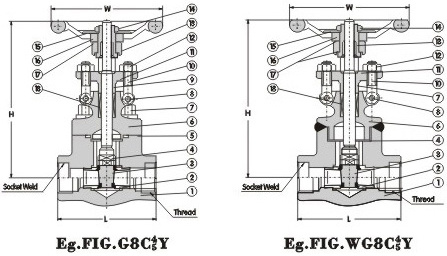

| NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM |
| Type A105 | Type F22 | Type F304(L) | Type F316(L) |
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Seat Ring | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Wedge | A276 430&410 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 5 | Gasket | Corrugated SS+graphite | SS+PTFE |
| 6 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 7 | Bonnet Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 8 | Pin | A276 420 | A182 F304 |
| 9 | Gland | A276 410 | A182 F304(L) | A182 F316(L) |
| 10 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 11 | Gland Flange | A105 | A182 F11 | A182 F304(L) | A182 F316(L) |
| 12 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 13 | Yoke Nut | A276 420 |
| 14 | H.W.Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 15 | Nameplate | SS |
| 16 | Handwheel | A197 |
| 17 | Bearing Gasket | A473 431 |
| 18 | Stem Packing | Flexible Graphite | PTFE |
| Suitable Medium | W.O.G.etc | W.O.G.etc | HNO3,CH2OOH etc |
| Suitable Temperature | -29~425 | -29~550 | -29~180 |
| NPS | Conv. | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | |
| Full | | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| L | 79 | 79 | 92 | 111 | 120 | 120 | 140 | 178 |
| H(OPEN) | 158 | 158 | 169 | 197 | 236 | 246 | 283 | 330 |
| W | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 |
| Weights | Bolted | 2.1 | 2.0 | 2.3 | 4.3 | 5.9 | 6.9 | 11.1 | 15.2 |
| Welded | 1.8 | 1.7 | 2.0 | 3.8 | 5.1 | 6.1 | 10.2 | 14.2 |
