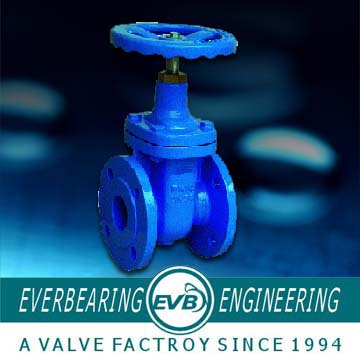

Gate Valve (GTV-063-B)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GTV-063-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Industrial Usage |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Seal Surface: |
Wedge Gate Valve |
| Material: |
Cast Iron |
| Connection Form: |
Flange |
Product Description
Gate Valve
Material: FC200
Trade Term: FOB
Certification: ISO, CE, DQS
Pressure: 10K
10K Iron Gate Valve, Factory Price!
|
10K Iron Gate Valve, Specification |
10K Iron Gate Valve, Application |
Design Standard: JIS B2043
Face to Face: JIS B2002
Testing Conform: B2003 |
Working Temp: 100 ° C Working Pressure: PN10 or PN16 Suitable Media: Water, Steam, Oil, ect. Not recommended for Steam Service. Caution: FREEZING WEATHER PRECAUTION - Subsequent to testing a piping system, iron valves should be left in an open position to allow complete drainage.
|
|
Materials 10K Iron Gate Valve, |
|
No |
Part Name |
Material |
|
1 |
Body |
ASTM A126A(B) |
GG20 GG25 |
|
2 |
Seat Ring |
ASTM B36/B62, SS410 |
Brass, Bronze |
|
3 |
Wedge Ring |
ASTM B36 |
Brass |
|
4 |
Wedge |
ASTM A126A(B) |
GG20 GG25 |
|
5 |
Wedge Nut |
ASTM B36 |
Brass |
|
6 |
Bolt |
A216 WCB |
GS-C25 |
|
7 |
Nut |
A216 WCB |
GS-C25 |
|
8 |
Washer |
A216 WCB |
GS-C25 |
|
9 |
Bonnet Gasket |
Graphite |
Graphite |
|
10 |
Nut |
ASTM B36 |
Brass |
|
11 |
Trust collar |
ASTM B36 |
Brass |
|
12 |
Packing |
Graphite |
Graphite |
|
13 |
Bonnet |
ASTM A126A(B) |
GG20 GG25 |
|
14 |
Gland |
ASTM A126A(B) |
GG20 GG25 |
|
15 |
Stem |
SS410 |
X10Cr13 |
|
16 |
Handwheel |
ASTM A126B |
GG25 |
|
17 |
Washer |
A216 WCB |
GS-C25 |
|
18 |
Bolt |
A216 WCB |
GS-C25 |
|
|
Dimensions(10K Iron Gate Valve, ) |
|
|
|
DN |
D |
D1 |
L |
H |
b |
n |
d |
|
50 |
155 |
120 |
178 |
250 |
20 |
4 |
19 |
|
65 |
175 |
140 |
190 |
265 |
22 |
4 |
19 |
|
80 |
185 |
150 |
203 |
300 |
22 |
8 |
19 |
|
100 |
210 |
175 |
229 |
350 |
24 |
8 |
19 |
|
125 |
250 |
210 |
254 |
410 |
24 |
8 |
23 |
|
150 |
280 |
240 |
267 |
450 |
26 |
8 |
23 |
|
200 |
330 |
290 |
292 |
550 |
26 |
12 |
23 |
|
250 |
400 |
355 |
330 |
650 |
30 |
12 |
25 |
|
300 |
445 |
400 |
356 |
710 |
32 |
16 |
25 |
|
Everbearing Engineering Co., Ltd. is a manufacturer of various valves with well-equipped testing equipment and strong technical force.
Since 1994, We have passed API-Q1, and gotten the ISO 9001: 2000 certification. And after years of experience in supplying valves abroad, Everbearing has been recognized as a skilled and credible supplier with most-trusted, highest-quality products.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in water, oil, gas and other industries.
Sincerely, we hope to make Everbearing brand as a famous brand with domestic and international customers. And we do our best to improve Everbearing as a high-class valve manufacturer.
We are looking forward to establishing relationships with you in the near future.
