| Prod Model: |
GTV-071-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Flange |
| Material: |
Cast Iron |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Industrial Usage |
Product Description

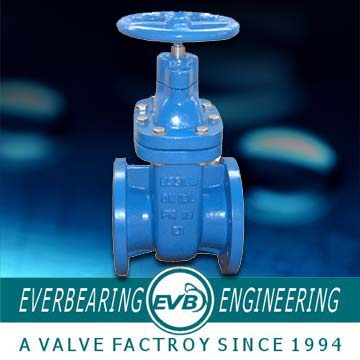

Gate Valve
BS non rising stem gate valve Specification BS non rising stem gate valve Application
Bolted Bonnet; Outside Screw & Yoke
Rising Stem; Solid Wedge
Design Standard: BS5163
Face to Face: BS5163
Working Temp: 100 ° C
Working Pressure: PN10 or PN16
Suitable Media: Water, Steam, Oil, ect.
Not recommended for Steam Service.
Caution: FREEZING WEATHER PRECAUTION - Subsequent to testing a piping system, BS non rising stem gate valve should be left in an open position to allow complete drainage.
BS non rising stem gate valve Materials
No Part Name Materials
1 Body ASTM A126A(B) GG20 GG25
2 Seat Ring ASTM B36/B62, SS410 Brass, Bronze
3 Wedge Ring ASTM B36 Brass
4 Wedge ASTM A126A(B) GG20 GG25
5 Bolt A216 WCB GS-C25
6 Nut A216 WCB GS-C25
7 Washer A216 WCB GS-C25
8 Bonnet Gasket Grapihte Graphite
9 Packing Grapihte Graphite
10 Bolt A216 WCB GS-C25
11 Gland ASTM A126A(B) GG20 GG25
12 Washer A216 WCB GS-C25
13 Nut A216 WCB GS-C25
14 Bonnet ASTM A126A(B) GG20 GG25
15 Yoke Nut ASTM B36 Brass
16 Nut A216 WCB GS-C25
17 Handwheel ASTM A126B GG25
18 Stem SS410 X10Cr13
Dimensions(BS4504 PN16 Flange drilling)
DN D D1 D2 L H b n d
50 165 125 99 178 330 17 4 19
65 185 145 118 190 385 17 4 19
80 200 160 132 203 420 19 8 19
100 220 180 156 229 500 21 8 19
125 250 210 184 254 660 23 8 19
150 285 240 211 267 740 23 8 23
200 340 295 266 292 930 27 12 23
250 405 355 319 330 1130 29 12 28
300 460 410 370 356 1330 29 12 28
|
BS non rising stem gate valve Specification |
BS non rising stem gate valve Application |
|
Bolted Bonnet; Outside Screw & Yoke Rising Stem; Solid Wedge Design Standard: BS5163 Face to Face: BS5163 |
Working Temp: 100 ° C Working Pressure: PN10 or PN16 Suitable Media: Water, Steam, Oil, ect. Not recommended for Steam Service. Caution: FREEZING WEATHER PRECAUTION - Subsequent to testing a piping system, BS non rising stem gate valve should be left in an open position to allow complete drainage. |
|
BS non rising stem gate valve Materials |
|
No |
Part Name |
Materials |
|
1 |
Body |
ASTM A126A(B) |
GG20 GG25 |
|
2 |
Seat Ring |
ASTM B36/B62, SS410 |
Brass, Bronze |
|
3 |
Wedge Ring |
ASTM B36 |
Brass |
|
4 |
Wedge |
ASTM A126A(B) |
GG20 GG25 |
|
5 |
Bolt |
A216 WCB |
GS-C25 |
|
6 |
Nut |
A216 WCB |
GS-C25 |
|
7 |
Washer |
A216 WCB |
GS-C25 |
|
8 |
Bonnet Gasket |
Grapihte |
Graphite |
|
9 |
Packing |
Grapihte |
Graphite |
|
10 |
Bolt |
A216 WCB |
GS-C25 |
|
11 |
Gland |
ASTM A126A(B) |
GG20 GG25 |
|
12 |
Washer |
A216 WCB |
GS-C25 |
|
13 |
Nut |
A216 WCB |
GS-C25 |
|
14 |
Bonnet |
ASTM A126A(B) |
GG20 GG25 |
|
15 |
Yoke Nut |
ASTM B36 |
Brass |
|
16 |
Nut |
A216 WCB |
GS-C25 |
|
17 |
Handwheel |
ASTM A126B |
GG25 |
|
18 |
Stem |
SS410 |
X10Cr13 |
|
|
Dimensions(BS4504 PN16 Flange drilling) |
|
|
|
DN |
D |
D1 |
D2 |
L |
H |
b |
n |
d |
|
50 |
165 |
125 |
99 |
178 |
330 |
17 |
4 |
19 |
|
65 |
185 |
145 |
118 |
190 |
385 |
17 |
4 |
19 |
|
80 |
200 |
160 |
132 |
203 |
420 |
19 |
8 |
19 |
|
100 |
220 |
180 |
156 |
229 |
500 |
21 |
8 |
19 |
|
125 |
250 |
210 |
184 |
254 |
660 |
23 |
8 |
19 |
|
150 |
285 |
240 |
211 |
267 |
740 |
23 |
8 |
23 |
|
200 |
340 |
295 |
266 |
292 |
930 |
27 |
12 |
23 |
|
250 |
405 |
355 |
319 |
330 |
1130 |
29 |
12 |
28 |
|
300 |
460 |
410 |
370 |
356 |
1330 |
29 |
12 |
28 |
|
