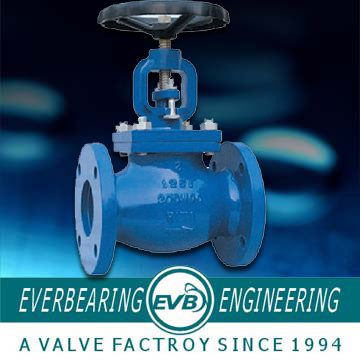

Globe Valve (GBV-024-G)
| Price: |
US $ 36/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
GBV-024-G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Design: |
ANSI/DIN//Bs |
| Size: |
Dn40~Dn300 |
| Pressure: |
Pn10/Pn16/150lb/125lb |
Product Description
Globe Valve
Material: GG25
Trade Term: FOB
Certification: ISO, CE, DQS
Pressure: PN16
Category: Valve Name: Globe Valve
|
Specification |
Application |
|
Design Standard: BS5152 Face to Face: BS4504 PN16 Flange Dimension: BS4504 Test Standard: BS6755 |
Working Temp: 100 ° C Working Pressure: PN10 or PN16 Suitable Media: Water, Steam, Oil Not recommended for Steam Service. Caution: FREEZING WEATHER PRECAUTION - Subsequent to testing a piping system, globe valves should be left in an open position to allow complete drainage. |
|
Materials |
|
No |
Part Name |
Materials |
|
1 |
Body |
ASTM A126A(B) |
GG20 GG25 |
|
2 |
Seat Ring |
ASTM B36/B62, SS410 |
Brass, Bronze |
|
3 |
Disc |
ASTM A126A(B) |
GG20 GG25 |
|
4 |
Steel Ball |
A216 WCB |
GS-C25 |
|
5 |
Packing |
Graphite |
Graphite |
|
6 |
Bonnet Gasket |
Graphite |
Graphite |
|
7 |
Stud |
A216 WCB |
GS-C25 |
|
8 |
Nut |
A216 WCB |
GS-C25 |
|
9 |
Gland |
ASTM A126A(B) |
GG20 GG25 |
|
10 |
Stud |
A216 WCB |
GS-C25 |
|
11 |
Bonnet |
ASTM A126A(B) |
GG20 GG25 |
|
12 |
Yoke Nut |
ASTM B36 |
Brass |
|
13 |
Screw |
A216 WCB |
GS-C25 |
|
14 |
Stem |
SS410 |
X10Cr13 |
|
15 |
Handwheel |
ASTM A126A(B) |
GG20 GG25 |
|
16 |
Washer |
A216 WCB |
GS-C25 |
|
17 |
Nut |
A216 WCB |
GS-C25 |
|
|
Dimensions(BS4504 PN16 Flange drilling) |
|
|
|
DN |
D |
D1 |
D2 |
L |
H |
b |
n |
d |
|
50 |
165 |
125 |
99 |
203 |
300 |
17 |
4 |
19 |
|
65 |
185 |
145 |
118 |
216 |
310 |
17 |
4 |
19 |
|
80 |
200 |
160 |
132 |
241 |
355 |
19 |
8 |
19 |
|
100 |
220 |
180 |
156 |
292 |
380 |
21 |
8 |
19 |
|
125 |
250 |
210 |
184 |
330 |
430 |
23 |
8 |
19 |
|
150 |
285 |
240 |
211 |
356 |
490 |
23 |
8 |
23 |
|
200 |
340 |
295 |
266 |
495 |
630 |
27 |
12 |
23 |
|
250 |
405 |
355 |
319 |
622 |
720 |
29 |
12 |
28 |
|
300 |
460 |
410 |
370 |
698 |
900 |
29 |
12 |
28 |
|
