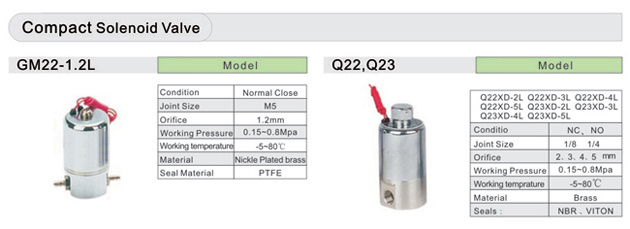

| Prod Model: |
GM22-1.2L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
GM22-1.2L |
| Working Pressure: |
0.15-0.8MPa |
| Joint Size: |
M5 |
| Working Temperature: |
-5~80 |
| Seal: |
NBR |
| Type: |
Pilot Operated |
| Connection Form: |
Thread |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Household Usage |
Product Description
Quick Details
- Type: Valves
- Place of Origin: Zhejiang, China (Mainland)
- Model Number: Q22XD-2L
- Brand Name: VPC
- valve body material: brass
- color: silver tone
- seal material: NBR/VITON
- acting type: direct acting type/N.C.
Packaging & Delivery
| Packaging Details: | inner box carton pallet |
|---|
| Delivery Detail: | 20~30 days |
|---|
Specifications

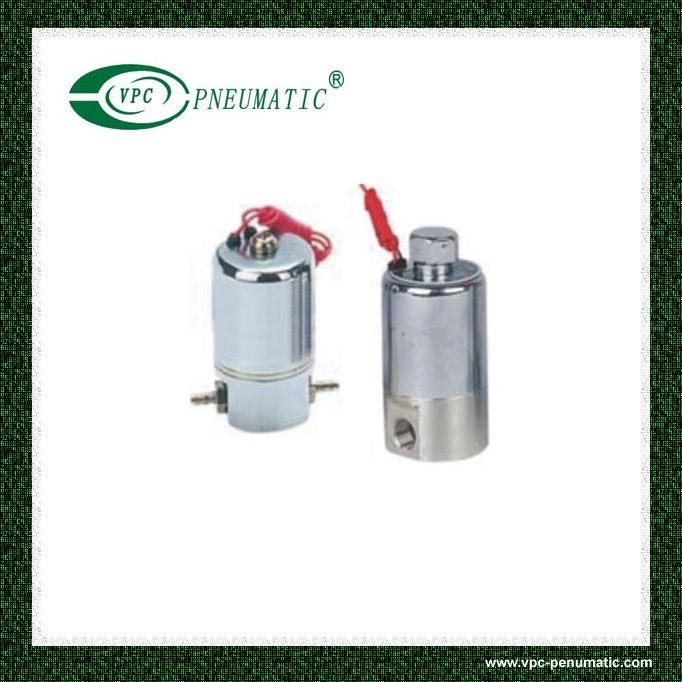

mini solenoid valve
easy to install
compact appearance
quick action and long service life Summary:
G/Q series mini solenoid valves are popular with customers on the delicate shape and rational design, mainly used in the control system of air, water, ink, coffee and other non-corrosive fluid, 2/2 and 3/2, normally open and normally closed, thread size range from M5 to 1/4", oriffice range from 1.2mm to 5mm, temperature range from 0 centidegree to 120 centidegree.
We are manufacturer of pneumatic cylinder ,solenoid valves ,directional valve ,fittings ,metal fitting ,air filter ,air hose in China .
