| Prod Model: |
FZ41H-16C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dn(Mm): |
15mm-600mm |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
| Standard: |
GOST |

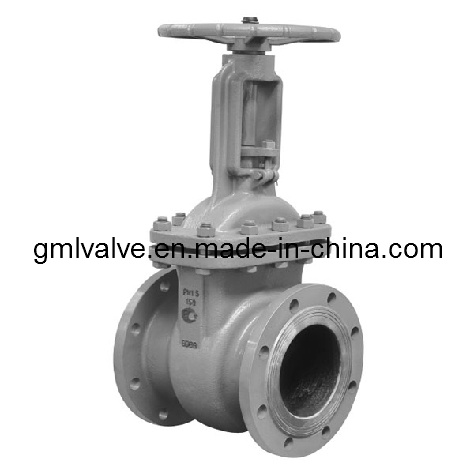

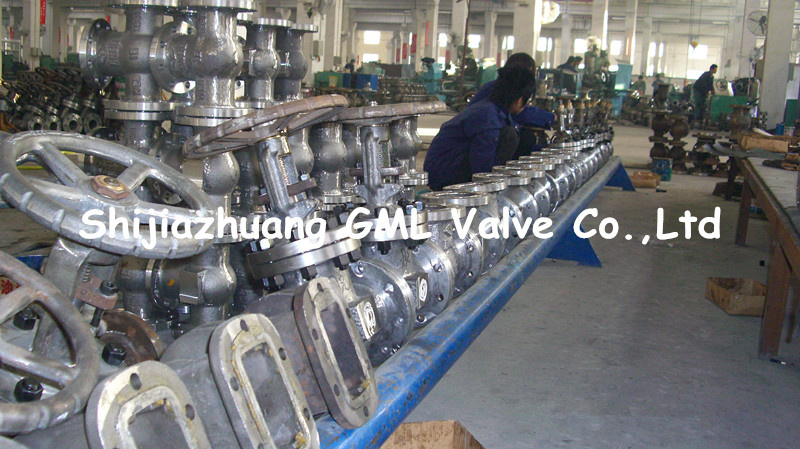

Product Description
Valve Body, Bonnet: WCB, Stainless Steel
Disc: WCB, Stainless Steel
Stem: Stainless Steel
Hand Wheel: QT450-10
Nominal Pressure: 1.6
Shell Test: 2.4
Seal Test: 1.8
Nominal DN: 50-400
| Main Parts and Materials |
| Number | Part Name | Material |
| 1 | Body | EN-GJL-250 |
| 2 | Seat ring | Brass |
| 3 | Wedge | CI+Brass |
| 5 | Wedge Nut | Brass |
| 6 | Stem | AISI 420 |
| 7 | Bonnet Gasket | EPDM |
| 9 | Bonnet | EN-GJL-250 |
| 12 | Stem Sealing | EPDM O Ring |
| 13 | Stuffing Nut | Brass |
| 21 | Dust Guard | EPDM/NBR |
|
| Main Dimensions |
| Size | L | D | D1 | D2 | b | n-d | H | W | W.T |
| DN40 | 140 | 150 | 110 | 88 | 16 | 4-18 | 260 | 130 | 8.6 |
| DN50 | 150 | 165 | 125 | 102 | 18 | 4-18 | 265 | 130 | 10.9 |
| DN65 | 170 | 185 | 145 | 122 | 18 | 4-18 | 293 | 130 | 14.2 |
| DN80 | 180 | 200 | 160 | 138 | 20 | 8-18 | 318 | 150 | 20.3 |
| DN100 | 190 | 220 | 180 | 158 | 20 | 8-18 | 349 | 185 | 22.8 |
| DN125 | 200 | 250 | 210 | 188 | 20 | 8-18 | 416 | 185 | 33.9 |
| DN150 | 210 | 285 | 240 | 212 | 22 | 8-22 | 456 | 195 | 42 |
| DN200 | 230 | 340 | 295 | 268 | 24 | 8-22 | 537 | 225 | 63.4 |
| DN250 | 250 | 395 | 350 | 320 | 26 | 12-22 | 659 | 245 | 91.8 |
| DN300 | 270 | 445 | 400 | 370 | 26 | 12-22 | 718 | 285 | 138.6 |
