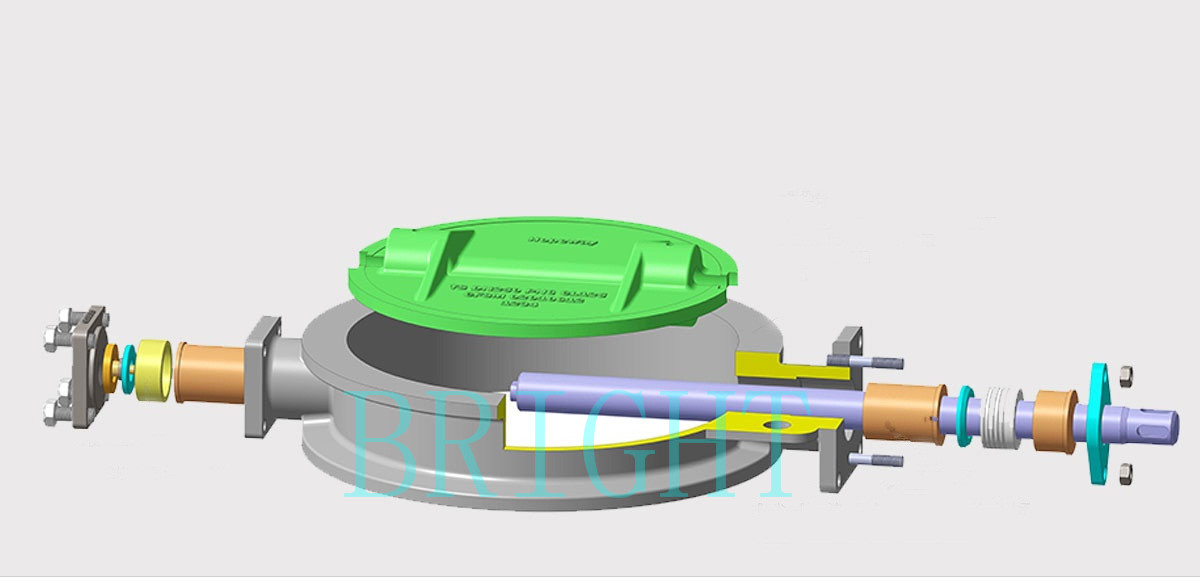

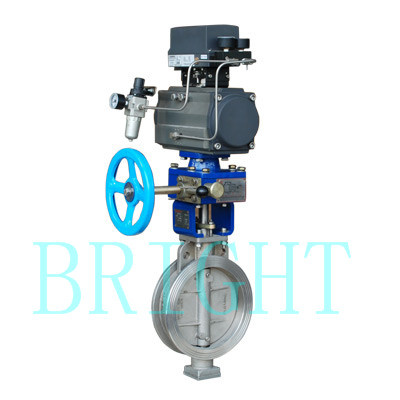

Hb2410 Pneumatic Low-Load Butterfly Valve
Price: |
US $ 200/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Prod Model: |
HB2410 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Nominal Diameter: |
25 Mm (1")-2000mm(80") |
Structure: |
Centre Sealing |
Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
Material Of Seal Surface: |
Metal Hard Sealed |
Application: |
Water Industrial Usage |
Connection Form: |
Wafter or Flange |
Seal Form: |
RF |
Valve Stem: |
Extended or Normal |
Working Temperature: |
Customized |
Product Description
1. Product Introduction
HB2410 Pneumatic Low-Load Butterfly Valve is applicable to metallurgy (such as heating furnace, gas station, blast furnace, sintering, etc), petroleum, chemical, light industry and other industries for the control and shutoff of media. It features small cubage, light weight, large flow coefficient, convinient operation and maintenance, dust free, tar proof, block proof, thermostability, stem blowout proof, fireproof structure and long life-span.
Patent No. 2011203278025, 2012202281877, 2012202282348, 201220228985X, 2012202575601
2. Main Specifications
Flow characteristics | Almost EQ% |
Rated stroke | 0~90° |
Rangeability | 20:1 |
Allowable temperature | HB2410 | HB2410P |
400ºC | 800ºC |
Allowable leakage=rated CV× | Nominal Dia. | HB2410 | HB2410P |
mm | inch |
50-80 | 2~3 | 5.0% | 0.3% |
100-250 | 4~10 | 3.5% | 0.2% |
300-450 | 12~18 | 3.0% | 0.15% |
500-700 | 20~28 | 2.0% | 0.15% |
800-1500 | 32~60 | 1.5% | 0.1% |
1600-2000 | 64~80 | 1.5% | 0.1% |
3. Body SpecificationsModel | HB2410 | HB2410P |
Body type | Open type | Backseat type |
Nominal Pressure | PN | PN0.6 |
ANSI | Class125 |
Nominal Dia. | DN25~DN2000 | 1~80 |
Connec.type | Wafer | ≤DN900 | ≤36 |
Flanged | ≥DN1000 | ≥40 |
Sealing type | RF |
Body material | WCB,CF8,CF8M,CF3M |
4. Applicable Standard | Chinese Standard | American Standard |
Quality guarantee | ISO9001 TSG Z7002-2004 | ISO9001 |
Design and manufacture | GB/T12238 | API 6D, API609 |
Flange standard | GB9112~9124-2010,HG20592-2009 | ASME B16.5 |
Face to face | GB12221 | IEC 60534-3-2:2001 |
Inspection & test | GB/T4213-2008 | API 598 |
5. Temp. Range of Main Material for Body
Disc type | Output shaft type Temperature range | Material |
Body | Disc | Stem | Seat |
Open type | Inside bearing -5~200ºC | WCB | WCB | 2Cr13 | - |
CF8 | CF8 | 304 | - |
CF8M | CF8M | 316 | - |
Outside bearing -5~400ºC | WCB | WCB | 2Cr13 | - |
CF8 | CF8 | 304 | - |
CF8M | CF8M | 316 | - |
Backseat type | Inside bearing -5~200ºC | WCB | WCB | 2Cr13 | |
CF8 | CF8 | 304 | |
CF8M | CF8M | 316 | |
Outside bearing -5~600ºC | WCB | WCB | 2Cr13 | |
CF8 | CF8 | 304 | |
CF8M | CF8M | 316 | |
Note: Special material shall be applied when temp.is over or below above mentioned temp. ranges.
