| Prod Model: |
Z41T-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body, Bonnet, Hand Wheel, Gland,Disc: |
Grey Cast Iron |
| Stem: |
Brass or Stainless Steel |
| Filling Material: |
Graphite |
| Seat: |
Brass |
| Drawing Format: |
CAD / Pdf/ Dwg/ Igs/ Step |
| Lead Time: |
20-30 Days |
| Surface Finish: |
Epoxy Resin Coating |
| Warranty Period: |
1 Year |
| Product Standard: |
GB/T 12232-2005 |
| Flange Standard: |
GB/T 17241.6-2008 |
| Material: |
Cast Iron |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Water Industrial Usage |
Product Description

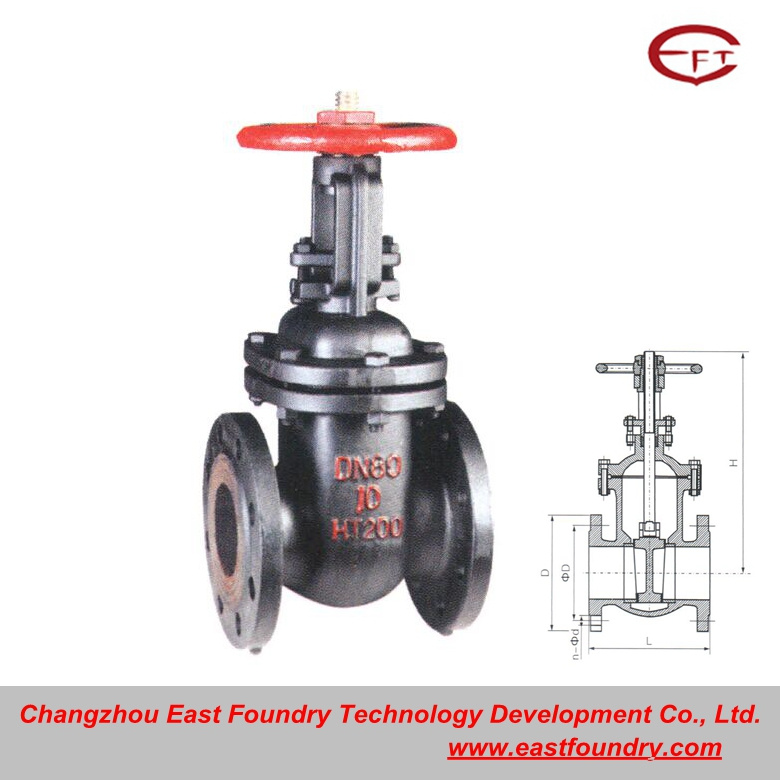

Item: Flanged Cast Iron Gate Valve (Z45T-10)
| Size | 50
(2") | 65
(2 1/2") | 80
(3") | 100
(4") | 125
(5") | 150
(6") | 200
(8") | 250
(10") | 300
(12") | 400
(16") | 500
(20") | 600
(24") |
| L(mm) | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 406 | 457 | 508 |
| H(mm) | 305 | 326 | 380 | 380 | 416 | 496 | 730 | 864 | 1007 | 1314 | 1650 | 1940 |
| ø D(mm) | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 395 | 445 | 565 | 670 | 780 |
| D1(mm)ø | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 | 515 | 620 | 725 |
| n-d1ø | 4-19 | 4-19 | 8-19 | 8-19 | 8-19 | 8-23 | 8-23 | 12-23 | 12-23 | 16-28 | 20-28 | 20-31 |
Our Advantages:
1. High quality material, more resistant to moisture and open-air environment.
2. Hand wheel surface thermal spaying epoxy resin powder coating, good looking and easy for cleaning, corrosion-resistant, perfect combination with valve life.
3. Copper Parts use HPb59-1 bar by forming multi-channel hot forging process, not annealed after forging, dense and weather resistance, no cracking, no internal stress.
4. Seals of EPDM rubber, water aging performace, life int he water longer than the NBR, guaranteed for 50 years.
5. Rubber vulcanization using advanced technology to ensure that iron is not exposed, don't contact water, no rust.
6. All valve flow cavity use heat pure epoxy powder coating, with small flow resistance. Pass 1500KV spark test, no rust, effectively prevent the second pollution from cast to water.
