Home Valve Products High Temperature Resistance Insulating 95% Alumina Ceramic Water Valve

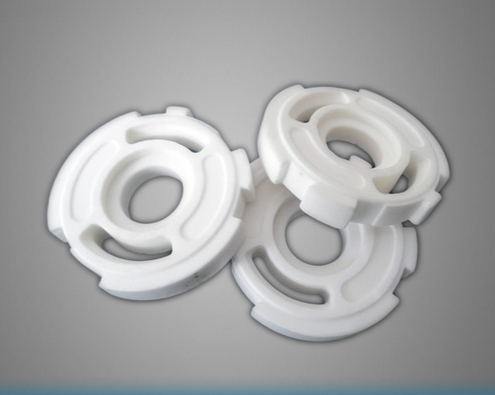

High Temperature Resistance Insulating 95% Alumina Ceramic Water Valve
| Price: |
US $ 0.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
Valve |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
95% Alumina Ceramic |
| Feature: |
High Temperature Resistance |
| Fuction: |
Nsulating Ceramic |
| Type: |
Faucet Cartridges |
Product Description
1. Raw material:95% alumina ceramic
Performance For Alumina Ceramic |
| Item |
| Unit | 96 Al2O3 | 99 Al2O3 |
| Physical Characteristics | Bulk density | g/cm3 | 3.6 | 3.8 |
| Water absorption | % | 0 | 0 |
| Mechanical Characteristics | Flexural strength | Mpa | 340 | 400 |
| Hardness Vickers | Gpa | 13.5 | 15.6 |
| Elastic modulus | Gpa | 320 | 370 |
| Poisson's ratio | - | 0.23 | 0.23 |
| Thermal Characteristics | Linear expansion coefficient | (200C-5000C) 10-6/0C | 6.2-8.5 | 6.8-8 |
| Thermal conductivity | w/(m.k) | 24 | 32 |
| Specific Heat | *10-3J/(kg*K) | 0.78 | 0.9 |
| Electrical Characteristics | Dielectric constant (1MHZ) | - | 9.4 | 9.9 |
| Dielectric loss angle | *10-4 | 5 | 1 |
| Dielectric strength | *106V/m | 15 | 15 |
2. Advantages:
1)High purity and superior function.
2)Good flateness and high precision in size.
3)Strong production capacity.
4)High qualification rate.
5) There are no fragile plates because we use high strength alumina ceramic.
3. Applications:
1) High power equipments.
2) IC MOS pipe
3) High frequency prower source, communication, mechanical equipment.
4) Heavy current, heavy voltage, high temperature, thermal conductive insulating parts.
4. About us:
ZALY in R&D, design, manufacture, construction, and operations for technical ceramic parts and components. LED lighting ceramic, electrothermal ceramic, ceramic resistors, electronic ceramic, steatite ceramic, zirconia ceramic, alumina ceramic and etc. are our main products. These products have good insulation and thermal conductivity. The advantages are irreplaceable. They are applied to power, high-frequency induction welder, audio, computer, LED, bathrooms, etc.
We can produce products according to your drawings or samples. Welcome you contact us for more information.I hope ZALY can have the chance to give you the best service.
Lianyungang Zhong Ao Aluminium Co. Ltd (AIZA)
Our Products:
Alumina Ceramic Ball
Alumina Ceramic Lining
Alumina Ceramic Cylinder
Alumina Wear Tile
Alumina Ceramic Beads
Alumina Ceramic Nozzle
Alumina Ceramic Ring
Insulation Ceramic
Customized Heterotypic Technical Ceramics
AIZA is a Lianyungang based Sino-Foreign joint venture corporation. It is a Chinese producer of calcined alumina and a manufacturer of alumina ceramics, such as alumina ceramic ball, alumina ceramic cylinder, alumina wear tile, ceramic insulator, ceramic element, ceramic beads, and other insulation ceramics with self-prepared material as well as German and Japanese material.
Since its creation, AIZA has served most of Chinese customers, Nanjing Huade, Zhuzhou Xianghuoju, and Chaozhou Sanhuan, which are eminent manufacturer of spark plug and advanced ceramic in China. Its "TCH" brand calcined alumina is well accepted by our customers.
In 2008, AIZA purchased 70 key equipment from Shanghai Morgan Matroc after its closure in China. The equipment includes isostatic press machine, dry press machine, hot press cast machine, ball mill, alumina spray prilling tower (centrifugal and pressure), polishing machine, etc. The equipment has been successfully installed in our factory by the end of 2008. Now, AIZA have succeeded in establishing itself as sole Chinese manufacturer of ceramic nozzle by isostatic dry bag pressing process. Besides, the most experienced technical engineer of former Shanghai Morgan Matroc also joined us, which is the precious source of our confidence of ensuring products quality.
TQC Procedures and ISO 9001: 2000- Certification
Our experienced QC will supervise the production and check the quality before delivery. We conduct TQC procedures according to ISO 9001: 2000-certified guidelines. In order to ensure better quality, we carry out five processes below:
1. Material inspection
2. Semi-manufactured goods inspection
3. Itinerary inspection
4. Finished products inspection
5. Shipment inspection.
Material Adopted:
Alumina
Zirconia
Steatite
Alumina-Zirconia
Technologies Adopted:
Dry Pressing
Isostatic Pressing
Heat Press Cast
Flowchart of Customized Service: Drawing Received---Researching and Tooling---Sample Collecting and Testing---Sample Accepted---Order Confirming.
