| Prod Model: |
PZ-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ingress Protection: |
65 |
| Temperature Grade: |
H |
| Operation: |
Normal Closed |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Direct Action Diaphragm Structure |
| Application: |
Household Usage |
| Power Supply: |
AC or DC Solenoid Valve |

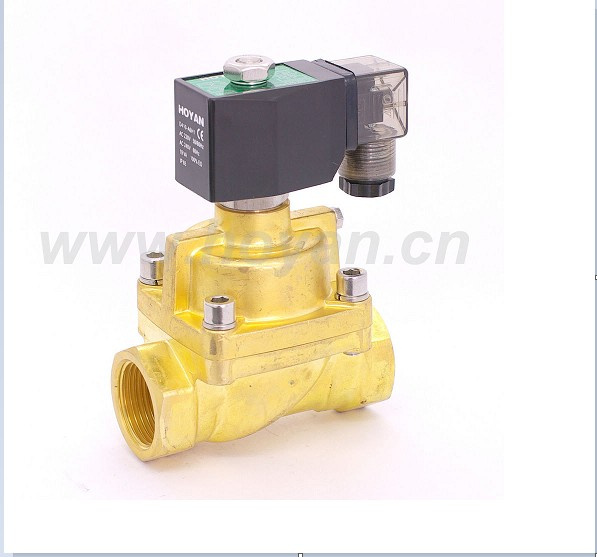

Product Description
"HOYAN" is a professional supplier/manufacturer of fluid solenoid valve in the world market. HOYAN is specialized in producing solenoid valve, pneumatic valve, coils, which are widely used in the enviromental water treatment, petrochemical engineering, etc.
Features:
Classic pilot piston structure, high voltage, using safety;
Class H coil, support high temperature, with IP65 coils;
Using good PTEF meets the need of different fluids;
Specification:
Pattern: Two-port two-position
Control mode: Normally closed or normal open
Valve body: Brass
Diaphragm material: NBR: ≤ 80
EPDM: ≤ 120
FKM: ≤ 150
SR: ≤ 100
Working pressure: 0.5-25 bar
Max pressure: 25 bar
Voltage: AC220V AC110V 50/60HZ DC12V DC24V
Media: Water\Hot Water\Air\Oil<20CST\steam etc.
If you want to know more information about our company and our products, please contact with us, we will reply asap.
