| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Or Nonstandard: |
API6a |
| Nominal Diameter: |
2 1/16"- 7 1/16" |
| Nominal Pressure: |
2000psi,3000psi,5000psi,10000psi. |
| Materials: |
AA\Bb\Cc\Dd\Ee\Ff\Hh |
Product Description

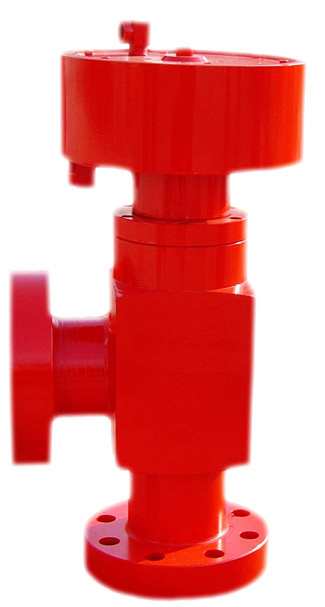

HYDRAULIC CHOKE VALVE
The hydraulic choke valve is used to be matched with manifold and other assemblies, which is applicable for flow-rate adjustment, that is, to raise or reduce the valve core location is help for alternation of flow-way cross-area and flow-rate control.
Main technological parameters
Rated pressure: 2000~15000psi
Working temperature: P U
Working medium: Petroleum & natural gas.
|
Material requirements |
|
Service Conditions |
Trim |
Body and Bonnet Materials |
Stem Materials |
Gate Materials |
Seat Materials |
|
API 6A Classification |
|
|
|
|
|
|
General Service |
AA |
Alloy Steel |
Alloy Steel |
Alloy Steel / Hard Facing |
Alloy Steel / Hard Facing |
|
General Service |
BB |
Alloy Steel |
AISI 410 |
AISI 410 / Hard Facing |
AISI 410 / Hard Facing |
|
General Service |
CC |
Stainless Steel 13% Cr. |
AISI 410 |
AISI 410 / Hard Facing |
AISI 410 / Hard Facing |
|
Sour Service |
DD |
Alloy Steel |
Alloy Steel |
Alloy Steel / Hard Facing |
Alloy Steel / Hard Facing |
|
Sour Service |
EE |
Alloy Steel |
AISI 410 |
AISI 410 / Hard Facing |
AISI 410 / Hard Facing |
|
Sour Service |
FF |
Stainless Steel 13% Cr. |
AISI 410 |
AISI 410 / Hard Facing |
AISI 410 / Hard Facing |
|
Sour Service |
HH |
Alloy Steel clad * |
Inconel 718 |
Inconel 718 / Hard Facing |
Inconel 718 / Hard Facing |
|
Temperature ratings |
|
Temperature Classification |
Operating Range |
|
|
°F from min. up to Max. |
°C from min. up to Max. |
|
|
min. |
Max. |
min. |
Max. |
|
K |
-75 |
180 |
-60 |
82 |
|
L |
-50 |
180 |
-46 |
82 |
|
P |
-20 |
180 |
-29 |
82 |
|
R |
Room temperature |
Room temperature |
|
S |
0 |
150 |
-18 |
66 |
|
T |
0 |
180 |
-18 |
82 |
|
U |
0 |
250 |
-18 |
121 |
|
V |
35 |
250 |
2 |
121 |
