Home Valve Products Hydraulic Directional Control Valve (4sdcv80-35) for Truck Mounted Crane, Multiple Directional Control Valves, Monoblock Directional Valve
Hydraulic Directional Control Valve (4sdcv80-35) for Truck Mounted Crane, Multiple Directional Control Valves, Monoblock Directional Valve
| Price: |
US $ 200/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
4SDCV80-35 Truck mounted crane control valve |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Hydraulic Control Unit |
Product Description
DCV Series Directional Control Valve Group for truck mounted crane,Flow Sharing Control Valve,
Multiple Directional Control ValvesThis product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.
Functions and features
1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;
2. Work group number can be added according to demand, 8 spools at most.
3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers;
4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.
Basic datasheet:
1. Max. Working pressure: 35MPa;
2. Rated Flow: 80L/min;
3. flow rate option:40L/min; 60L/min; 80L/min; 120L/min;160L/min;
3. Operation mode: Hydraulic, manual, manual + mechanical limit and pneumatic control (for flow below 80L/min).

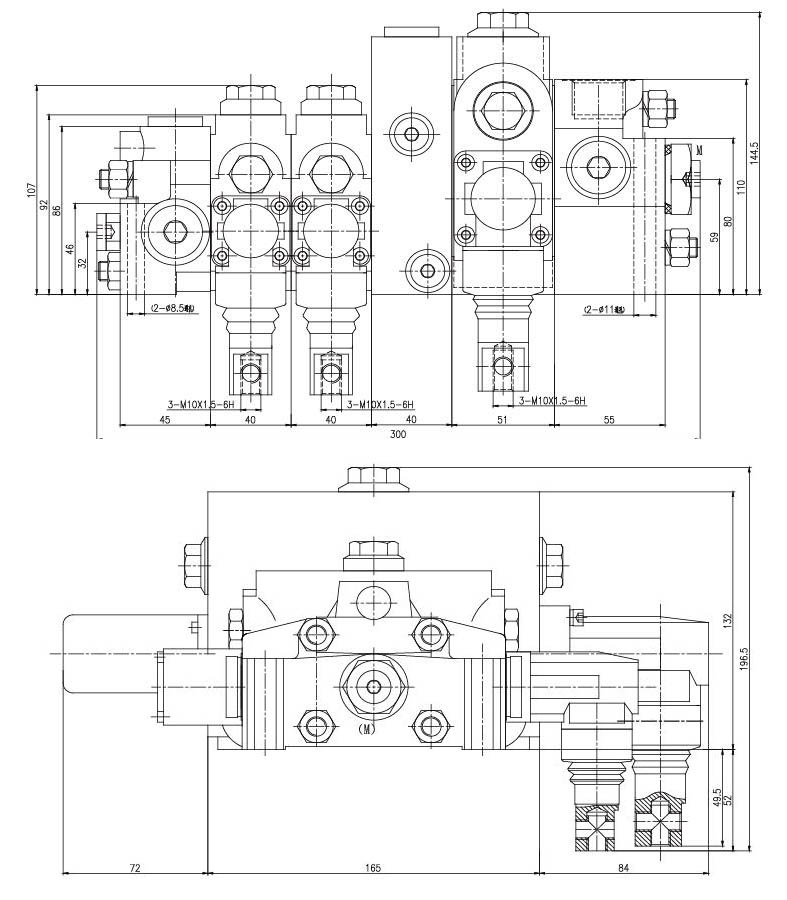

4SDCV80-35 dimensions

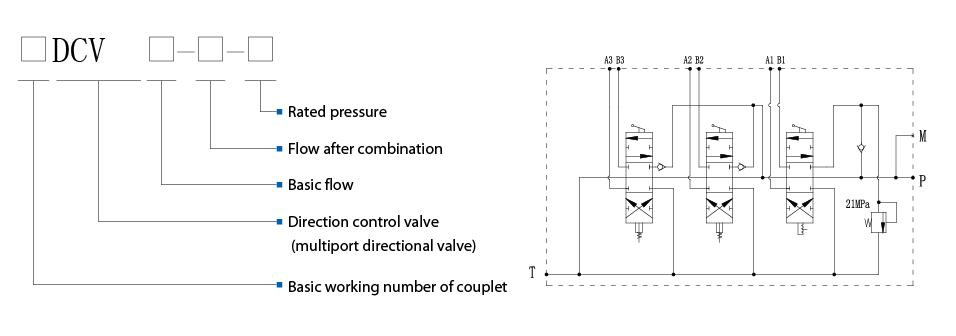

4SDCV80-35 symbols
This valve have been supply to Palfinger,SANY,XCMG,Zoomlion etc.
This valve is design for our current customer,it's most popular on truck mounted crane.
Yuzhou have own R&D department,we can special design the valves for your application.
Choosing YUZHOU hydraulic is choosing high quality!
Ningbo Yuzhou Hydraulic was founded in 1995, specialized in mobile hydraulic valves and motors, Including hydraulic motors, flow sharing control valve, slewing cushion valve, balance valve, proportional valve, cartridge valve, relief valve, check valve etc, which are widely used in concrete pump machinery, excavators, mobile cranes, forklift, hydraulic winches, drilling equipment, garbage trucks, agricultural/forestry machines, Aerial Work Platforms etc
50000 + M² Factory area,
30+ Senior experts and engineers R&D team
20+ Quality control
60+National Patent and 30 innovation patent
200+ Staff
In 2005 established "Yuzhou hydraulic valves Engineering Center", has more than 30 Senior experts and engineers R&D team, Has developed 7 series of more than 300 kinds of products, and got 60 national patent which 30 innovation patent.
Yuzhou cooperated partner including XCMG, SANY, Zoomlion, LIUGONG, Manitowoc, TEREX, etc.
Yuzhou not only manufacturing for you, but also can design the hydraulic valves or hydraulic system according your demand.
Ningbo Yuzhou Hydraulic was founded in 1995, specialized in mobile hydraulic valves and motors, Including hydraulic motors, flow sharing control valve, slewing cushion valve, balance valve, proportional valve, cartridge valve, relief valve, check valve etc, which are widely used in concrete pump machinery, excavators, mobile cranes, forklift, hydraulic winches, drilling equipment, garbage trucks, agricultural/forestry machines, Aerial Work Platforms etc
50000 + M² Factory area,
30+ Senior experts and engineers R&D team
20+ Quality control
60+National Patent and 30 innovation patent
200+ Staff
In 2005 established "Yuzhou hydraulic valves Engineering Center", has more than 30 Senior experts and engineers R&D team, Has developed 7 series of more than 300 kinds of products, and got 60 national patent which 30 innovation patent.
Yuzhou cooperated partner including XCMG, SANY, Zoomlion, LIUGONG, Manitowoc, TEREX, etc.
Yuzhou not only manufacturing for you, but also can design the hydraulic valves or hydraulic system according your demand.
