Home Valve Products Hydraulic Valves-Directional Control Valves With Sub-Plate Mounting (DHG-04/06/10)
Hydraulic Valves-Directional Control Valves With Sub-Plate Mounting (DHG-04/06/10)
| Price: |
Negotiable |
| Trade Terms: |
FOB Shenzhen |
| Min Order: |
1/Piece |
| Prod Model: |
DHG-04/06/10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

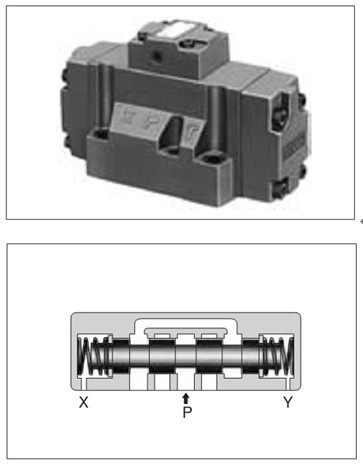

Hydraulic valves-directional control valves with sub-plate mounting DHG-04/06/10 hydraulic valves of directional control valves or directional valves:
These hydraulic valves or directional control valves or directional valves perform a change over of spool by hydraulic pilot and shift the direction of oil flow.
|
Pilot Operated Directional valves DHG-04/06/10 Sub-plate Mounting |
|
Specification |
|
Model Number |
Maximum Flow L/min |
Max.Operating Pressure Mpa |
Max.Pilot Pressure Mpa |
Min.Required Pilot Pressure Mpa |
Max. T-Line Back Pressure Mpa |
Approx Mass Kg |
|
10MPa |
16MPa |
25 Mpa |
31.5 Mpa |
|
DHG-04-3C*-50* |
300 |
300 |
300 |
300 |
31.5 |
25 |
0.8 |
21 |
7.4 |
|
DHG-04-2N*-50* |
300 |
300 |
300 |
300 |
7.4 |
|
DHG-04-2B*-50* |
130 |
70 |
70 |
60 |
7.8 |
|
DHG-06-3C*-50* |
500 |
500 |
500 |
500 |
31.5 |
25 |
0.8 |
21 |
11.2 |
|
DHG-06-2N*-50* |
500 |
500 |
500 |
500 |
11.2 |
|
DHG-06-2B*-50* |
140 |
100 |
90 |
80 |
11.7 |
|
DHG-06-3H*-50* |
500 |
500 |
500 |
500 |
21 |
1 |
12 |
|
DHG-10-3C*-40* |
1100 |
1100 |
1100 |
1100 |
31.5 |
25 |
1 |
21 |
43.8 |
|
DHG-10-2N*-40* |
1100 |
1100 |
1100 |
1100 |
43.8 |
|
DHG-10-2B*-40* |
460 |
300 |
220 |
200 |
45.6 |
|
DHG-10-3H*-40* |
1100 |
1100 |
1100 |
1100 |
21 |
1 |
51.6 |
Welcome at Shenzhen RAYPOO machinery, the specialist in customized Hydraulics and construction machinery components.
Shenzhen RAYPOO machinery Co., Ltd is a wholly owned subsidiary company of Shenzhen Raypoo technology Co., Ltd with the headquarter based in Hong Kong, established and managed by modern enterprise structures systems which is one of the most important hydraulic and construction machinery component enterprises.
There are three kinds of core products or service:
1. Hydraulic products which including complete hydraulic systems, valves, press, cylinders, hoses, pumps, motors, seals.
2. Construction Machinery components which including concrete pump trailer fitting series, concrete pump truck enduring fittings, concrete pump components, steel clamps and rubber hose seal fittings.
3.24 hours in-time Repair and maintaince service
RAYPOO's products and service used in the following fields:
Construction equipment; Material Handling Equipment; Industrial Trucking; Demolition Equipment; Aerial Platforms; Crawler Cranes; Waste Management Facilities; Heavy Industry
Railway Track Maintenance; Industrial Facilities; Mobile Drill Rigs; Truck Cranes; Aircraft Carries.
RAYPOO owns the advanced completed producing technics and high precise equipments by improving technologies and processes. The average increase rate of annual sales revenue is 35%, and export income has sustained faster growth products are exported to America, Europe, Asia and Africa. HYtop brand has become the famous Hydraulic and construction Machinery brand at the home and overseas market and we take pride in offering the highest quality service, with the backup of qualified, professional and helpful staff.
RAYPOO developed more than 100 new products each year that fills the domestic blank well.
RAYPOO is going forward to build the highest-level base for Hydraulic and constuction machinery instustry in China.
