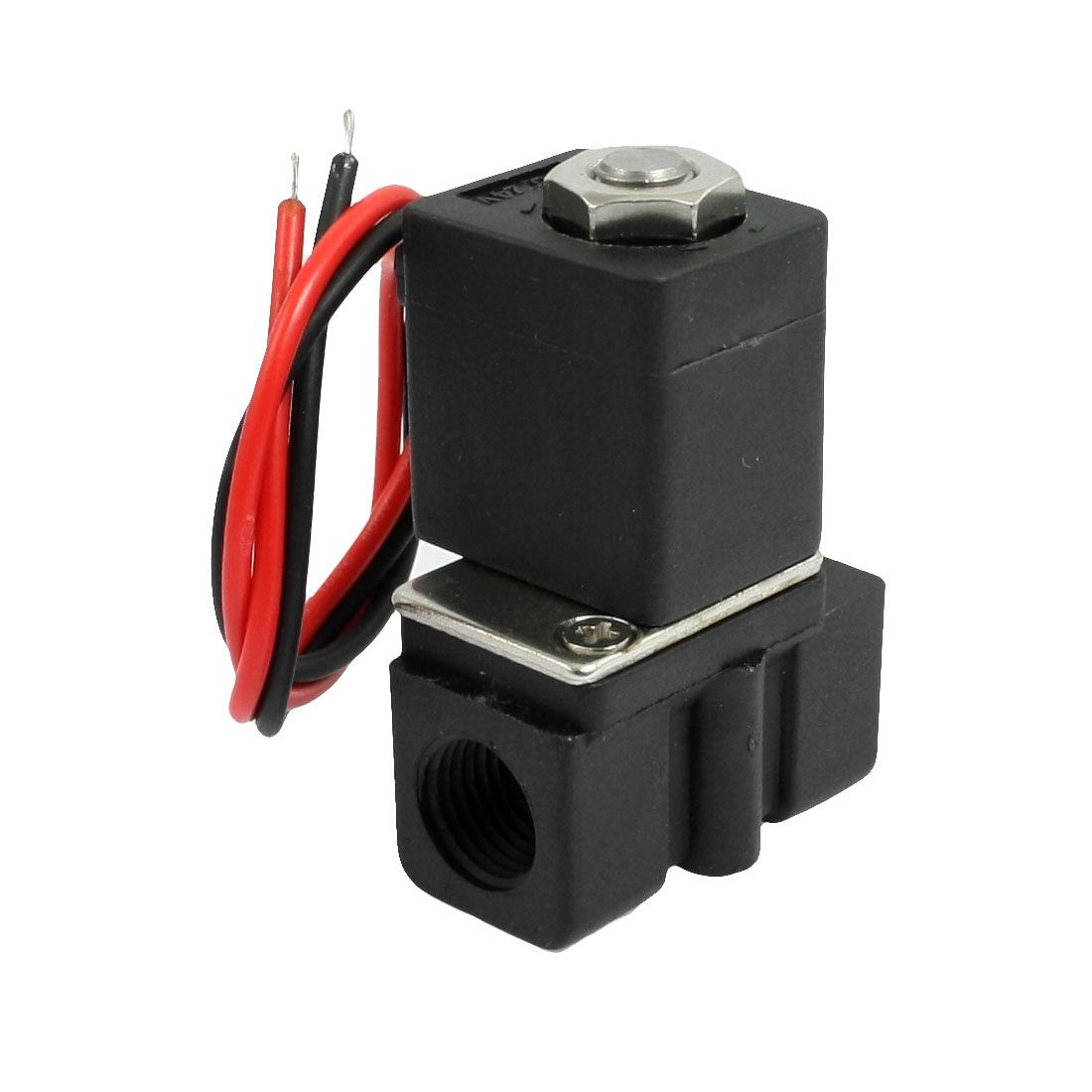

Hyland 2p Series 2-2 Way Solenoid Valve
| Price: |
US $ 3-15/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
2P025-06, 2P025-08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 2p025-06,2p025-08: |
G1/8'' G1/4'' |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Direct-Acting Piston Structure |
| Application: |
Household Usage |
| Power Supply: |
AC and DC |
Product Description
2P series solenoid valves' information
Model: 2P025-06 2P025-08
Type: Normal Close
Joint size: 1/8" 1/4"
Orifice: 2.5mm
Pressure: 0-0.7Mpa
Temperature: -5-80 Celsius degree
Material: Plastic Steel
| Model | 2P025-06 | 2P025-08 |
| Working medium | Air; Water; Oil; Gas |
| Action model | Direct action |
| Valve type | Normally closed |
| Flow hole diamater | 2.5mm |
| Cv value | 0.23 |
| Port size | G1/8" | G1/4" |
| Liquid viscosity | <20CST |
| Working pressure | 0~0.7MPa |
| Proof-pressure | 1.0MPa |
| Working temperature | -5~80°C |
| Voltage grade | ±10% |
| Protection grade | IP65 |
| Power | AC:6.5VA DC6.5W |
| Insulating | F Class |
| Body material | Nylon66 |
| Seals material | NBR or VITON |
| Exciting time | 0.05 sec. |

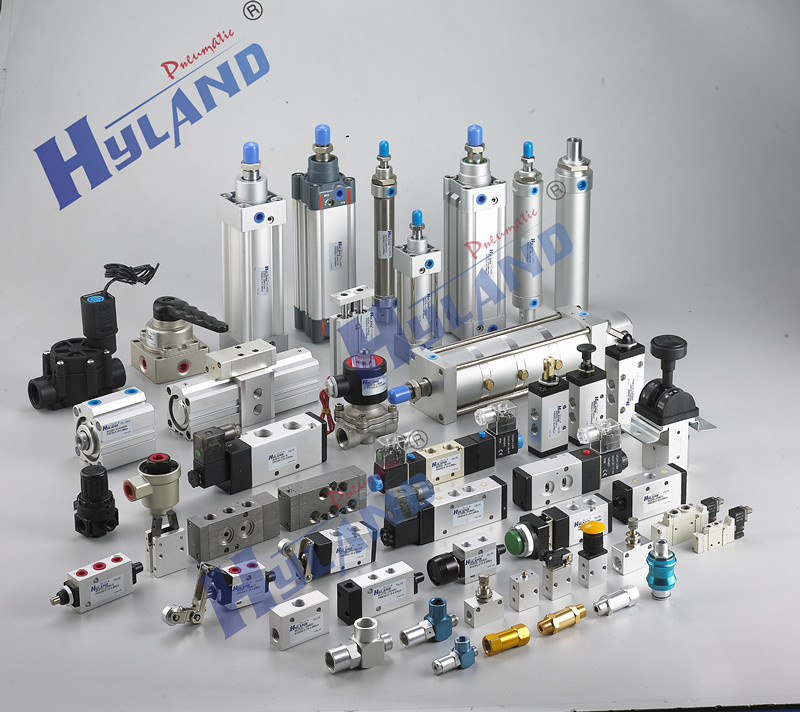

Ningbo Hailan Pneumatic Equipment Co., Ltd is a professional pneumatic enterprise which collected R&D, manufacturing, sales and after-sales service. It is specialized in production of control components, air source treatment units, executive components, and other pneumatic accessories.

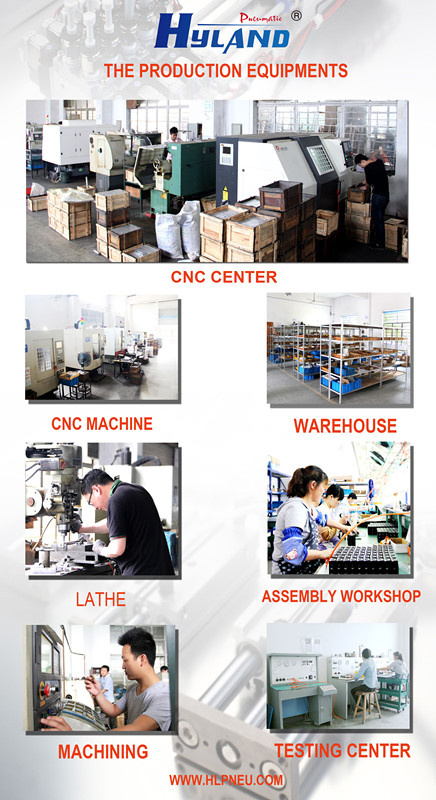

Hailan pneumatic owns 4, 000 square meters of factory, and a batch of experienced professional and technical engineers, various international advanced production and testing equipments. And in the process of production, we accord to the customerized quality goal, compare and analyze the gap between the implementation process and result, make appropriate adjustment and improvement, thus eventually ensure that the customer's quality requirements are reached.
Ningbo Hailan Pneumatic Equipment Co., Ltd has passed the ISO9001: 2000 quality management system certification, and in strict accordance with the requirements of the quality system for both production and management.
"Hailand Pneumatic, Make Things Better".
Ningbo Hailan Pneumatic Equipment Co., Ltd is a professional pneumatic enterprise which collected R&D, manufacturing, sales and after-sales service. It is specialized in production of control components, air source treatment units, executive components, and other pneumatic accessories.
Hailan pneumatic owns 4, 000 square meters of factory, and a batch of experienced professional and technical engineers, various international advanced production and testing equipments. And in the process of production, we accord to the customerized quality goal, compare and analyze the gap between the implementation process and result, make appropriate adjustment and improvement, thus eventually ensure that the customer's quality requirements are reached.
Ningbo Hailan Pneumatic Equipment Co., Ltd has passed the ISO9001: 2000 quality management system certification, and in strict accordance with the requirements of the quality system for both production and management.
"Hailand Pneumatic, Make Things Better".
