| Prod Model: |
YSE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port Size: |
1/4",3/8", 1/ 2", 3/4", 1" |
| Port Thread: |
G, Bsp, NPT |
| Orifice: |
1, 1.5, 2, 2.5, 3, 10, 15, 20, 25 |
| Material: |
Stainless Steel |
| Temperature: |
-5~130 |
| Pressure: |
0-250 Bar |
| Media: |
Water, Air, Gas, Oil, etc |
| Sample Leadtime: |
2-3 Days |
| Order Leadtime: |
7-10 Days After The Payment Is Finished |
| Warranty: |
One Year's Guarantee |
| Type: |
Pilot Operated |
| Connection Form: |
Thread |
| Valve Structure: |
Pilot Membrane Structure |
| Application: |
Water Industrial Usage |
| Power Supply: |
AC or DC |

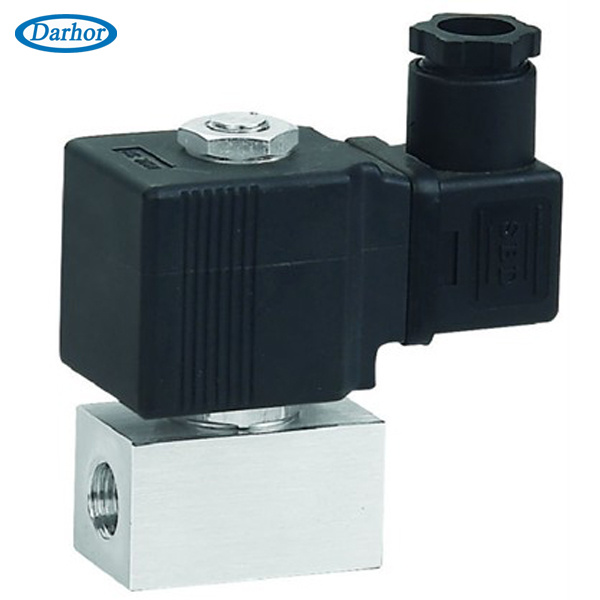

Product Description
Suit for steam, gas, water and low viscosity
· Standard or Nonstandard: Standard
· Structure: Pilot
· Pressure: High Pressure
· Power: Solenoid
· Material: Stainless Steel
· Temperature of Media: High Temperature
· Media: Gas
· Port Size: G1/4"~1"
· Place of Origin: Zhejiang, China (Mainland)
· Model Number: YSE-100
· Brand Name: Darhor
· Max pressure: 25MPA
· Coil: Nass coil from Germany
· Function: An electromechanical valve for use with liquid or gas
· Certificate passed: CE,
· Export Area: ALL OVER THE WORLD
|
MODEL |
YSE-010 |
YSE-015 |
YSE-020 |
YSE-025 |
YSE-030 |
YSE-100 |
YSE-150 |
YSE-200 |
YSE-250 |
|
ORIFICE SIZE |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
10 |
15 |
20 |
25 |
|
G CONNECTOIN |
G1/4 G3/8 |
G3/8 G1/2 |
G1/2 |
G3/4 |
G1 |
|
OPERATION TYPE |
DIRECT ACTING |
PILOT |
|
MEDIUM |
LIQUID, GAS |
LIQUID, GAS |
|
TEMP. |
≤180 |
≤100 OR ≤180 |
|
NOMINAL PRE.(Mpa) |
16 / 25 |
10 / 16 |
8 / 10 |
6 / 8 |
4 / 6 |
10 / 16 |
|
PRE.DIFF.MPa |
016 / 025 |
0100 / 0160 |
08 / 010 |
060 / 080 |
040 / 060 |
0.610 / 0.616 |
|
LENGTH MM |
44 |
44 |
44 |
44 |
44 |
60 |
70 |
80 |
90 |
|
HEIGHT MM |
98 |
98 |
98 |
98 |
98 |
125 |
138 |
144 |
154 |
|
POWER V |
AC220 AC110 AC36 |
