| Prod Model: |
M20F7-1" BSP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Application: |
Household Usage |
| Power Supply: |
Energized Coil Opens The Plug |
Product Description
HENGSEN company is Professional OEM manufacturer!
Jenny work in HENGSEN company!
You may send inquiry to Jenny for more products information or OEM details,Thanks!

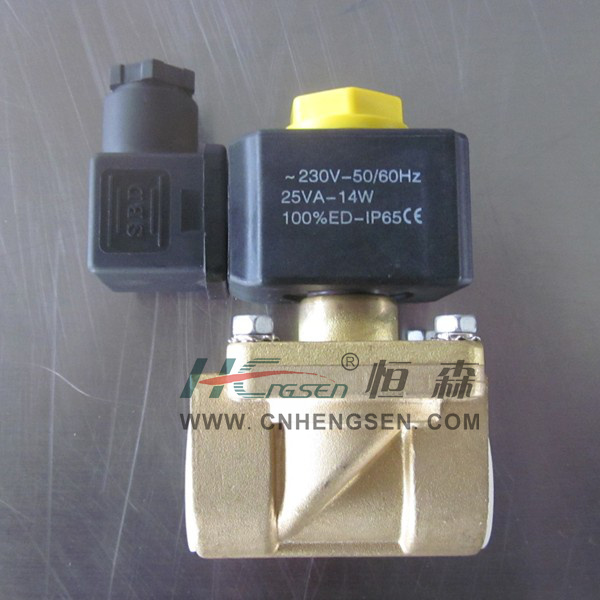

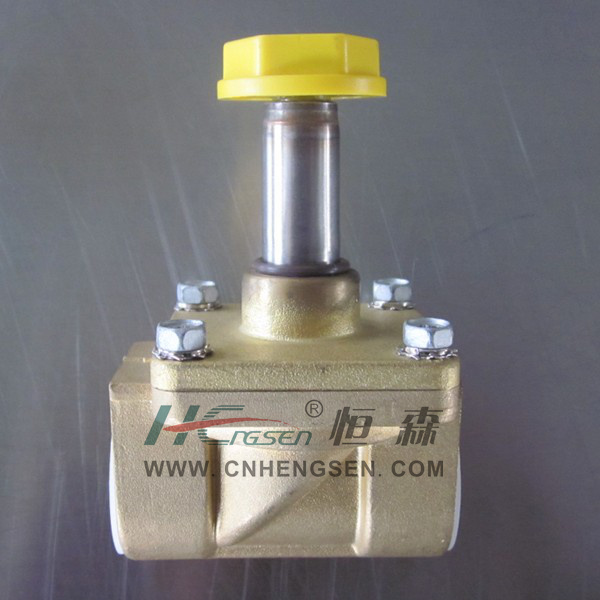

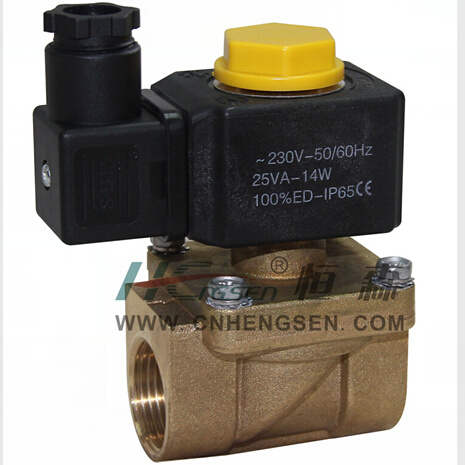

M20F7 Solenoid valve 1" BSP/normally closed solenoid valve/direct operation solenoind valve/water solenoid valve/air solenoid valve/oil solenoid valve
M20F7 Solenoid valve suitable for water,air,oil,inert gases and other fluids
non-corrosive for copper alloys,with viscosity up to 2°Engler
Installation and operation
Normally-Closed 2 way valve
Direct activation
Female end connection,Size 1" BSP
Energized coil opens the plug
Electrical Specifications
Closing Time: 10msec
Press-forged brass body
Internal parts in stainless steel(17% CR)
Gaskets in Viton(fluoroelastomer)
Fluid temperature:-10 to +140ºC
With dc coil indicated pressure values must be reduced by 60%
Model: M20F7-1"
Through bore dia.Φ 9 mm
Female connection 1" BSP
KVs:1.2 m³/h
Minimum differential pressure 0 bar
Maximum differential pressure with coil Vn 2.5bar
Test pressure(DIN2401) PN 25bar
Working Temperature -10 to 140ºC
Unit Weight 0.9 kg
Coil for choose
C230A: 230VAC
C110A: 110VAC
C24A: 24VAC
C24D: 24VDC
