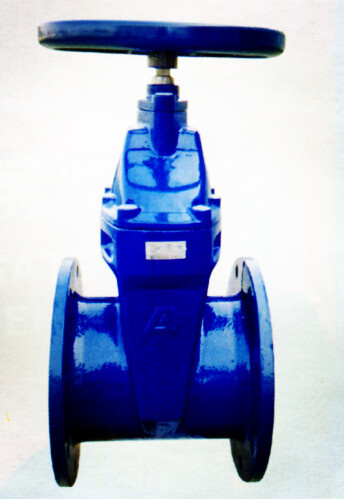

Mannual Soft-Seal Gate Valve, Water Valve, Pump Valve, Pipeline Valve, Manual Gate Valve, Resilient Seated Gate Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
YZ45X-10/16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dn: |
50-600mm |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Chemical and Food Industries |
| Material: |
Ductile Cast Iron |
Product Description
General features
Good sealing: Flexible wedge produces trace deformation, and the compensation effect makes a good sealing
Fluid pressure: ≤1.6MPa
Application: used in the pipelines of construction, chemical, food, water supply and drainage system and other industries
Materials of main parts
Part name |
Materials |
Body, bonnet |
Nodular cast iron |
Wedge |
Nodular cast iron |
Stem |
Stainless Steel |
Nut of stem |
Brass |
Main technical parameters
Model |
PN |
Test pressure |
Applicable temperature
(ºC) |
Applicable medium |
Strength(water)MPa |
Sealing(water)MPa |
YZ45X-10/16 |
1.0 |
1.5 |
1.1 |
0-80ºC |
Water |
1.6 |
2.4 |
1.76 |
| General dimension |
| Model | DN(mm) | L(mm) | H(mm) | D2 | D1 | D | b | f | Z-Φd | L (structure) mm |
| PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 |
| YZ45X-10/16 | DN50 | 178 | 215 | 99 | 125 | 165 | 19 | 3 | 4-19 | 180 |
| DN65 | 190 | 235 | 118 | 145 | 185 | 19 | 3 | 4-19 | 195 |
| DN80 | 203 | 265 | 132 | 160 | 200 | 19 | 3 | 8-19 | 210 |
| DN100 | 229 | 315 | 156 | 180 | 220 | 19 | 3 | 8-19 | 230 |
| DN125 | 254 | 360 | 184 | 210 | 250 | 19 | 3 | 8-19 | 255 |
| DN150 | 267 | 385 | 211 | 240 | 285 | 19 | 3 | 8-23 | 280 |
| DN200 | 292 | 485 | 266 | 295 | 340 | 20 | 3 | 8-23 | 12-23 | 330 |
| DN250 | 330 | 600 | 319 | 350 | 355 | 395 | 405 | 22 | 3 | 12-23 | 12-28 | 380 |
| DN300 | 356 | 680 | 370 | 400 | 410 | 445 | 460 | 24.5 | 4 | 12-23 | 12-28 | 420 |
| DN350 | 381 | 810 | 429 | 460 | 470 | 505 | 520 | 24.5 | 26.5 | 4 | 16-23 | 16-28 | 450 |
| DN400 | 406 | 890 | 480 | 515 | 525 | 565 | 580 | 24.5 | 28 | 4 | 16-28 | 16-31 | 480 |
| DN450 | 432 | 980 | 530 | 548 | 565 | 585 | 615 | 640 | 25.5 | 30 | 4 | 20-28 | 20-31 | 510 |
| DN500 | 457 | 1230 | 582 | 609 | 620 | 650 | 670 | 715 | 26.5 | 31.5 | 4 | 20-28 | 20-34 | 540 |
| DN600 | 508 | 1260 | 682 | 720 | 725 | 770 | 780 | 840 | 30 | 36 | 5 | 20-31 | 20-37 | 600 |
