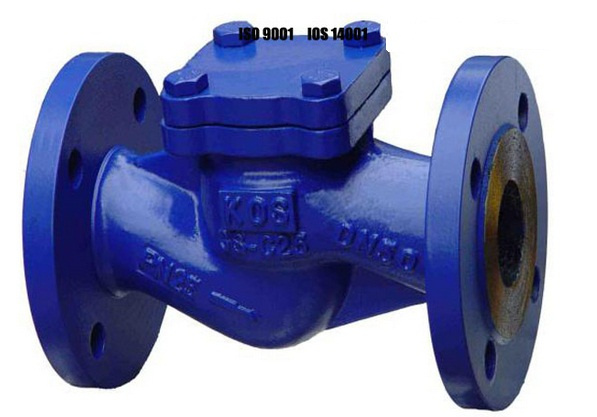

Manual Swing Type Flange Check Valve

Prod Model:	2232
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Boss
Items:	2232
Product Name:	Manual Swing Type Flange Check Valve
Port Size:	1/2" - 36 "
Item Material:	Cast Iron,Wcb,Ss
Certification:	CE Asme UL ISO
Media:	Water
Material Type:	Forged
OEM:	Yes
Working Pressure:	1000psi-2000psi
Connection Form:	Flange
Channel:	Straight Through Type
Structure:	Flexible Ball Valve
Type:	Fixed Ball Valve
Material:	Stainless Steel
Application:	Household Usage

Product Description

Manual Swing Type flange WCB check valve

Detailed Product Description

Specifications:
Size: 1/2 "-36 "
(1) 150LB - 1500LB Check valve
                Connection: RF/RTJ Flange, Butt Welded
        Pressure Rating: Class 150LB~ Class 1500LB
        Material:A105,LF2,F11,F22,F5,F304,F316,F304L,F316L(1/2" -2 ")
         WCB,LCB,WC6,WC9,C12,C5,CF8,CF8M,CF3,CF3M,CF8C(2" -36")
        Structural Features: Bolted Cover ,Swing Type Disc,
                 Threaded or Welded Seat Ring
         Suitable medium:water, oil, gas....
 Design Standard:
        Design & Manufacture Std.: BS1868,ANSI B16.34,API 6D,JIS B2074 B2084
        Inspection and Test:API 598, API 6D
        Face to Face Dimension :ANSI B16.10 ,JIS B2002
        End Flange Dimension:2"-24" to ANSI B 16.5, JIS B2212 B2214
                     >24": to MSS SP-44,to API 605 on request
        Butt-welding End Dimensions to: ANSI B16.25
        Packing: wooden case, plywood case
(2) 900LB - 3000LB Check valve
        Connection: RF/RTJ Flange, Butt Welded
        Pressure Rating: Class 900LB~ Class 3000LB
        Material: A105,LF2,F11,F22,F5,F304,F316,F304L,F316L(1/2" -2 ")
         WCB,LCB,WC6,WC9,C12,C5,CF8,CF8M,CF3,CF3M,CF8C(2" -36")
        Structural Features: Pressure Seal Cover ,Swing Type Disc,
                 Threaded or Welded Seat Ring
        Operating Type: Handwheel, Gear, Pneumatic, Electric
 Design Standard:
             Design & Manufacture Std.: ANSI B16.34, BS1868
        Inspection and Test: API 598, API 6D
        Face to Face Dimension:ANSI B16.10
        End Flange Dimension:ANSI B 16.5
        Butt-welding End Dimensions to: ANSI B16.25
        Packing: wooden case, plywood case


Product name:	manual Swing type flange  check valve
Application:	Gas and oil industry, steam power stations, petrol chemical,paper and pulp plant,steel industry
Item number:	2232
Size:	1/2" - 36 "
Pressure Rating:	Class 150LB - 1500LB	Class900LB - 3000 LB
Structural Features:	Bolted Cover ,Swing Type Disc, Threaded or Welded Seat Ring	Pressure Seal Cover ,Swing Type Disc,Threaded or Welded Seat Ring
End Flange Dimension:	2"-24" to ANSI B 16.5, JIS B2212 B2214     >24": to MSS SP-44,to API 605 on request	ANSI B 16.5
Design std.:	ANSI B16.34
Butt-weldEnd Dimensions to:	ANSI B16.25
Face to Face Dimension :	ANSI B16.10
Connection:	RF/RTJ Flange, Butt Welded
Operate Type:	Handwheel, Gear, Pneumatic, Electric
Packing:	wooden case, plywood case
Connection:	RF/RTJ Flange, Butt Welded
Material:	A105,LF2,F11,F22,F5,F304,F316,F304L,F316L(1/2" -2 ")   WCB,LCB,WC6,WC9,C12,C5,CF8,CF8M,CF3,CF3M,CF8C(2" -36")
Manufacturing to NACE MR-01-75 on request,and OEM/ ODM are offered.
