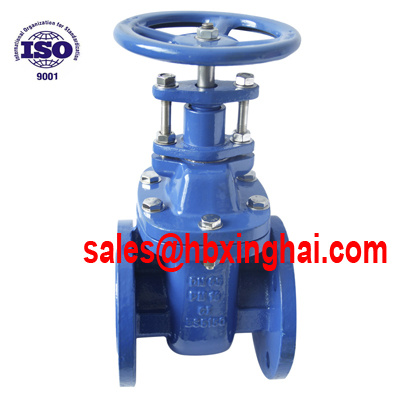

Metal Seated Non-Rising Stem Gate Valves
| Price: |
US $ 40.9/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
DN65 2.5'' |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
Blue or Black |
| Media: |
Water |
| Standard Or Nonstandard: |
Standard |
| Brand: |
Xinghai or OEM Provided |
| Material: |
Cast Iron |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Household Usage |
| Standard: |
BS5150 |
Product Description
Specification:
1. ISO
2 Best quality
3. Factory

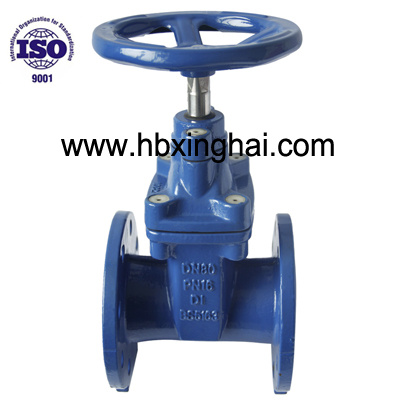

non-rising stem cast iron resilient seated gate valve
Metal Seated Gate Valve/Cast Iron Gate Valve
This kind of product have been used in the fields of petro-chem, pharma centicallnd and power Industry, etc. It is used by means of open and close on the pipes of steam, water and oil, etc.
METAL SEATED (NON RISING/RISNG STEM) GATE VALVEDesign and manufacture conform to BS 5150/MSS SP-70
Resilient Seated (NON RISING/RISNG STEM) GATE VALVE
GATE VALVE NRS BS5150 PN16
Design and manufacture conform to BS 5163/DIN 3202 F4 A& B
metal seated cast iron gate valve Component
| 1 | Body | Cast iron, ductile iron |
| 2 | Body seat | Bronze, brass |
| 3 | Wedge seat | Bronze, brass |
| 4 | Wedge | Cast iron, ductile iron |
| 5 | Stem nut | Bronze,brass |
| 6 | Stem | Strainless steel |
| 7 | Gasket | Graphite |
| 8 | Bonnet bolt | Carbon steel |
| 9 | Nut | Carbon steel |
| 10 | Bonnet | Cast iron,ductile iron |
| 11 | Bolts | Carbon steel |
| 12 | Gasket | Graphite |
| 13 | Stuffing box | Cast iron,ductile iron |
| 14 | Packing | Graphite |
| 15 | Gland follower | Cast iron,ductile iron |
| 16 | Hand wheel | Carbon steel,ductile iron |
| 17 | Washer | Carbon steel |
| 18 | Hand wheel nut | Carbon steel |
resilient seated cast iron gate valve Component
| NO | PART NAME | METERIAL |
| 1 | BODY | DUCTILE IRON |
| 2 | DISC | DUCTILE IRON with EPDM/BUNA |
| 3 | DISC NUT | DUCTILE IRON |
| 4 | NUT | Q235A |
| 5 | BONNET | DUCTILE IRON |
| 6 | STEM | Q235A |
| 7 | SEAL RING | NBR/EPDM |
| 8 | NUT | BRASS |
| 9 | HAND WHEEL | DI/C.S. |
| 10 | BOLT | Q235A |
| 11 | SEAL RING | NBR/EPDM |
| 12 | LOCATING RING | Q235A |
Production process
We are manufacturer and have own factory and production lines.
We test the gate valve one by one
We have a sophisticated casting technology.
The gate valves are tested by 2 times before leaving our factory.
1.The fist time is in the assembly process, and valves are tested one by one.
2.The second time is before packaging, we use the method of spot check, 5%. Once found problems, 100% testing.
3.So we can guarantee 95%~98% zero-leaking.
Hebei Xinhe Xinghai Valve Industry Co., Ltd manufactures wafer and flanged butterfly valves, wafer check valves, cast iron gate valves, cast iron Y strainers and other valve components. All the valves meet ISO, BS, DIN, ANSI or per customer specified standards. Our valves have been installing on the pipelines in water, Oil, gas and other industries.
All our valves adopted advanced designing, strict QA procedure, foundry, machining and assembly integrated process assured quality control. We are DNV ISO 9001 certified company with strong technical support, fine manufacture, advanced inspection, reliable quality. Our products are sold both at home and abroad, which received very good reputation.
"Quality First, Customer First" always is the core of our concept of business management. To serve the needs of valve market and customers, we will provide users with reliable, high-quality valves through carrying out technological innovation, developing new products and expanding services.
We sincerely hope your visit and cooperation, and establish win-win trade relationship to have mutual development.
