| Prod Model: |
Z45X-16 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Seal Surface: |
Wedge Gate Valve |
| Material: |
Cast Iron |
| Connection Form: |
Flange |

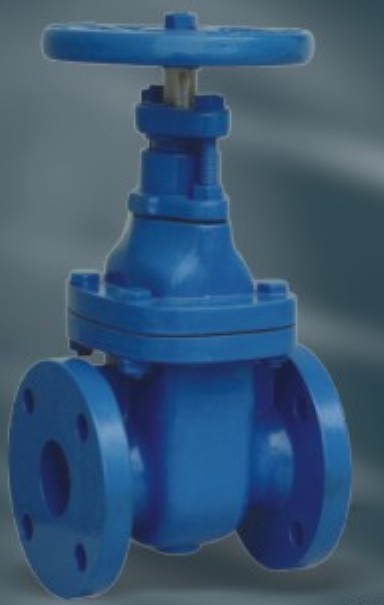

Product Description
Components
Body: Ductile iron
Disc: Ductile iron with NBR/EPDM/FPM
Bonnet: Ductile iron
Stem: Stainless steel
O-ring: NBR
Gland: Ductile iron
Hand wheel: Ductile iron
Application
Face to face is according to ANSI B16.10
Flange drilled is according to ANSI B16.1/16.5
Class 125: Flat face flange
Class 150: Raised face flange
|
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
L |
178 |
190 |
203 |
229 |
254 |
267 |
292 |
330 |
356 |
|
H |
279 |
284 |
295 |
325 |
376 |
429 |
533 |
615 |
690 |
|
D |
165 |
185 |
200 |
220 |
250 |
285 |
340 |
400 |
455 |
|
C |
200 |
200 |
250 |
280 |
280 |
340 |
340 |
400 |
450 |
