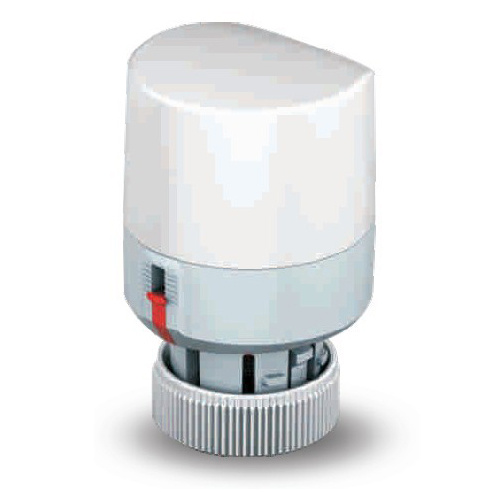

Thermal Actuator BTA-35
It can be used with electrical on/off-controls to activate several types of valves and floor heating manifolds, the actuator is made for either 24V or 230V supply in normally closed.
Application
Fitted on manifolds or small valves for the control of warm-water (floor) heating systems used in Commercial buildings, Residential buildings, Light industrial buildings...
Features
Wax-filled element from France, PTC heating to start
Spring re-set function, the valve close or open when power off(normal closed and normal open)
Noise-free operation
Position indicator on actuator
Nut connects for install and dismounting easy
Normal closed factory setting is open that is easy to water pressure testing
(It will return to normal after the first power on connecting)
Technical data
Voltage: 230V(220)V, AC24V, 110V
Power consumption: 2W
Force: 110N
Stroke: 3mm
Running time: 180s
Valve interface: Cap nut M30× 1.5mm
Ambient temperature: 5 degree C~50 degree C
Cable Length: 900mm
Housing material: PC+GF10
Protective housing: ± 45degree C IP43, 45degree C...90degree CIP41
Model: BTA-35
Shipping Weight: 250g
50000 Units in Stock
