Piston Vacuum Pump (H-150)
| Price: |
US $ 10-100000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
H-150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
China Coal |
| Condition: |
New |
| Structure: |
Rotary Vacuum Pump |
Product Description

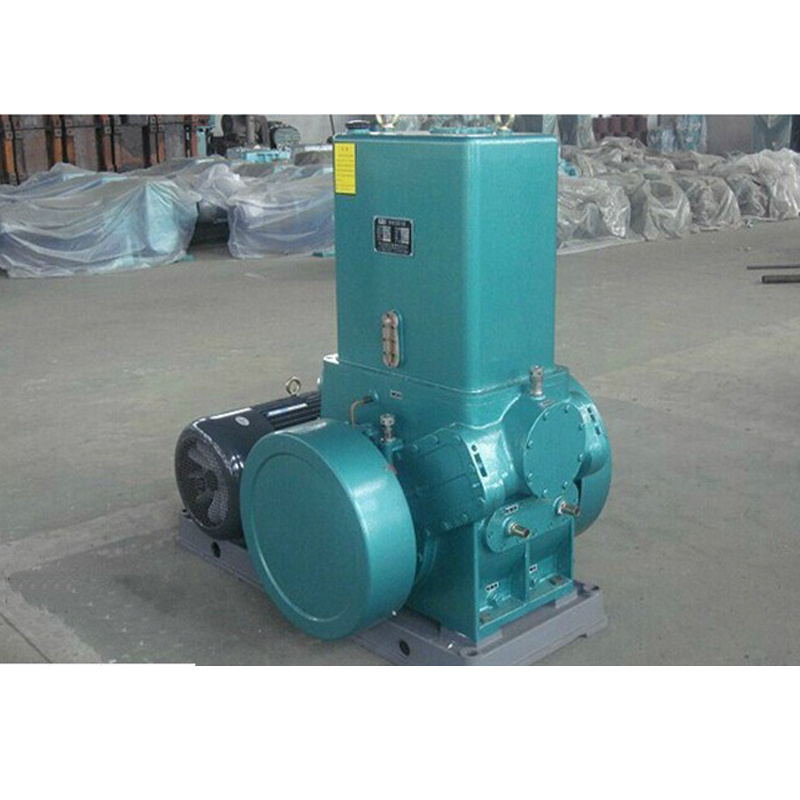

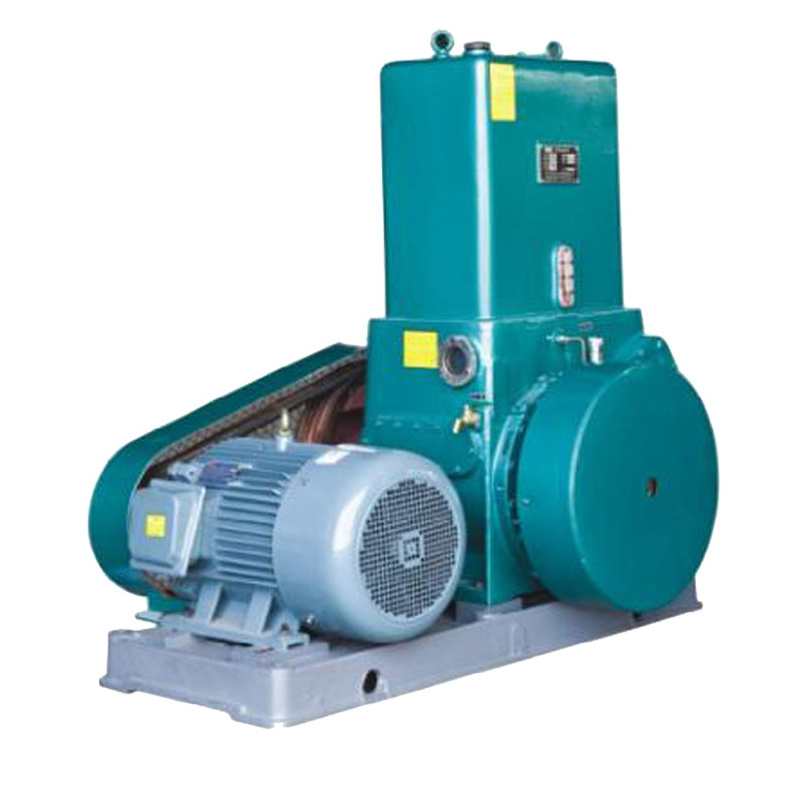

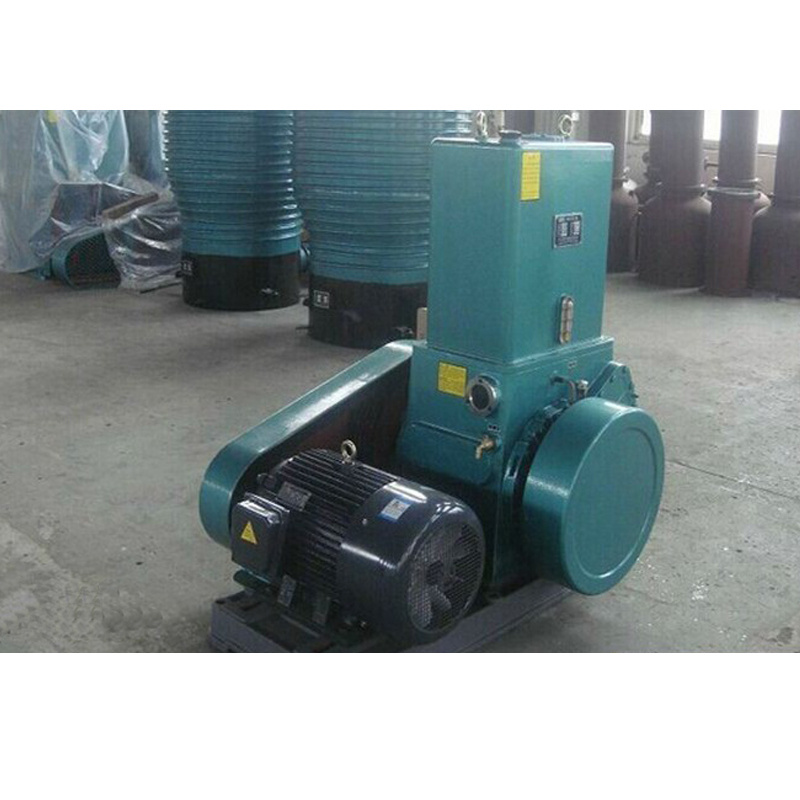

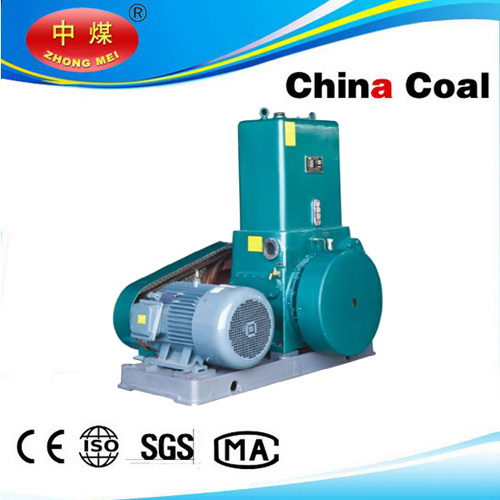

Piston Vacuum Pump (H-150)
Product IntroductionThe series of rotary piston vacuum pump is one kind of vacuum equipments for pumping general gas or the gas containing a little condensable vapor with gas ballast valve equipped.The volume flow rate of the pump is 150 l/s , ultimate pressure is 1 pa (7.5×10-3torr). It is widely used in vacuum metallurgy, vacuum drying, vacuum coating, vacuum impregnating and other vacuum industry. The pump can be used as a backing pump when combined with another vacuum pump as well as operated singly. It can not be used as a transfer pump to pump from one container to another. Main Parameter| volume flow rate (l/s) | 150 |
| ultimate pressure(pa) | 1 |
| pump rotational speed (rpm) | 450 |
| motor power (kw) | 15 |
| Capacity of pumping vapor(Kg/h) | About 8.4 |
| Max. inlet pressure permitted for long time running (pa) | 1.3×10^4 |
| max. consumption of cooling water (l/min.) | 2.5~11.5 |
lubrication oil
| model(SH0528-92) | N100 mechanical vacuum oil |
| oil capacity (Kg ) | 30 |
| diameter (mm) | inlet | 100 |
| outlet | 80 |
| overall dimension (l×w×h) (mm3) | 1555×826×1285 |
| weight (without motor) (kg) | 680 |
