Plastic Pneumatic Actuator Stainless Steel Forge Three-Way Welded Diaphragm Valve (3A-No. RG2037-)
Price: |
US $ 169-1059/Piece |
Trade Terms: |
FOB,CIF,others |
Min Order: |
1/Piece |
Pay Type: |
T/T |
Prod Model: |
RG2037- |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Sealing Elements: |
EPDM+PTFE |
Sealing Material (Option): |
Vmq |
Pressure Of Work: |
0-10bar |
Working Temperature Of EPDM: |
-20 to 135 Degree Celsius |
Working Temperature Of Vmq: |
-50 to 180 Degree Celsius |
Sterilization Temperature: |
150 Degree Celsius (Max 20 Min) |
Inside Surface Treatment: |
Ra Is More Than or Equal From 0.4 to 0.8 Mircomete |
Surface Treatment: |
Ra Is More Than or Equal From 0.8 to 1.6 Mircomete |
Actuator: |
Pneumatic |
Connection: |
Welded Diaphragm Valve |
Material: |
Stainless Steel |
Structure: |
Forge Diaphragm Valve |
Function: |
Manual Type |
Standard: |
3A |
Product Description

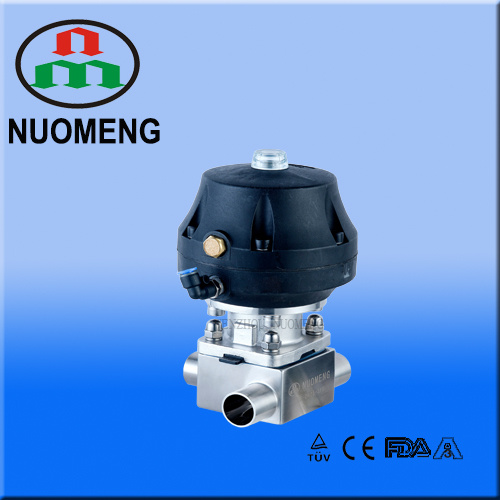

Product name: Sanitary Stainless Steel Forge Three-Way Welded Diaphragm Valve with Plastic Pneumatic Actuacor
Material quality: Stainless steel 304,316L
Seal: EPDM+PTEE the seals are imported seal material (which conform to the FDA177.2600standard).
Standard:3A
Flux domination of pipeline: 3/4""-3", applied to the stainless steel pipeline system and achieving the requirement of control and open/close for the pipeline system.
Working principle: The diaphragm is close under normal state. When the diaphragm valve have the requirment to clean or open by manual or pneumatic operation by handle or pneumatic actuator, the valve stem moves upwards according to the manual or pneumatic actuator equipment, spherical diaphragms naturally nemd upwards.
Advantage: The optimize valve body made the cleaning liquid flow out totally, so that without any entrapment. Sanitary Stainless Steel Forge Three-way manual welded Diaphram Valve
3A-No.RG2037 | Size | Length | Width | Inner Diameter | Outside Diameter |
3/4" | 108 | 66 | 15.75 | 19.05 |
1" | 127 | 82 | 22.1 | 25.4 |
1 1/4" | 146 | 98.5 | 28.5 | 31.8 |
1 1/2" | 160 | 105.5 | 34.8 | 38.1 |
2" | 190 | 123 | 47.5 | 50.8 |
2 1/2" | 216 | 129.5 | 60.2 | 63.5 |
Plastic Pneumatic Actuator |
Size | Height (From diaphragm to the top of Actuator ) | Length |
3/4" | 125 | 90 |
1" | 160 | 126 |
1 1/4" | 190 | 150 |
1 1/2" | 190 | 150 |
2" | 190 | 150 |
