Pneumatic Control Valves (4A200)
| Price: |
Negotiable |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
T/T |
| Prod Model: |
4V210-08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Valve Structure: |
Direct-Acting Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Connection Form: |
Thread |
| Type: |
Direct Acting |
Product Description

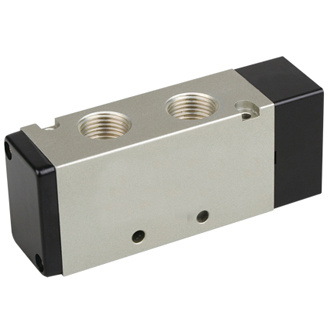

Pneumatic Control Valves(4A200)
Our company Puremix Electro-Mechanical co Ltd is a factory specialized in Pneumatic products and Hydraulic products like, Pneumatic fittings, Pneumatic valves, Solenoid valves, FESTO( SMC, AIRTAC, FESTO), Pneumatic cylinders and some Hydraulic quick couplings etc with good reputation in China for many years.
|
Model |
4A210-06
4A220-06 |
4A230C-06
4A230E-06
4A230P-06 |
4A210-08 4A220-08 |
4A230C-08
4A230E-08
4A230P-08 |
|
Position and Way NO. |
Two-position Five-way |
Three-position Five-way |
Two-position Five-way |
Three-position Five-way |
|
Effectiv Section area |
14mm 2 (CV=0.78) |
12mm 2 (CV=0.67) |
16mm 2 (CV=0.89) |
12mm 2 (CV=0.67) |
|
Model |
3A210-06 3A220-06 |
3A210-08 3A220-08 |
|
Position and Way NO. |
Two-position Three-way |
Two-position Three-way |
|
Effectiv Section area |
14mm 2 (CV=0.78) |
16mm 2 (CV=0.89) |
|
Port Size |
Air Inlet=Air Outlet=Exhaust=G1/8' ' |
Air Inlet=Air Outlet=G1/4
Exhaust=G1/8' ' |
|
Working Medium |
40 Micron Filtered Air |
|
Motion Patterm |
Inner Guide Type |
|
Working-pressure |
0.15-0.8Mpa |
|
Max. Pressure Resistance |
1.2Mpa |
|
Operation Temperature |
5-50 0 C |
|
Voltage Range |
± 10% |
|
Power Consumption |
AC: 4.5VA DC: 3W |
|
Insulation& Protection Class |
F Class: IP65 |
|
Wiring Form |
Lead Wire or Connector type |
|
Highest Action Frequency |
5 Cycle/Sec |
|
Shortest Excitation Time |
0.05 Second |
Our company Puremix Electro-Mechanical co ltd is a factory specialized in Pneumatic products and Hydraulic products like, Pneumatic fittings, Pneumatic valves, Solenoid valves, FESTO( SMC, AIRTAC, FESTO), Pneumatic cylinders and some Hydraulic quick couplings etc with good reputation in China for many years.
Our company imported CNC machines from Taiwan and Japan for machining the valve body, cylinder end covers, pistons, spools etc. And imported Gemany Siemens
System, with complete setof advanced computer testing equipment ande all keys seals are from Parker and Japan, Making a good definition for excellent quality. And devotes to continually developing new products, deeply improving current products, and obtaining reasonable margin to extend the market share. We are sure we are the right cooperator you are looking for in China.
Our company Puremix Electro-Mechanical co ltd is a factory specialized in Pneumatic products and Hydraulic products like, Pneumatic fittings, Pneumatic valves, Solenoid valves, FESTO( SMC, AIRTAC, FESTO), Pneumatic cylinders and some Hydraulic quick couplings etc with good reputation in China for many years.
Our company imported CNC machines from Taiwan and Japan for machining the valve body, cylinder end covers, pistons, spools etc. And imported Gemany Siemens
System, with complete setof advanced computer testing equipment ande all keys seals are from Parker and Japan, Making a good definition for excellent quality. And devotes to continually developing new products, deeply improving current products, and obtaining reasonable margin to extend the market share. We are sure we are the right cooperator you are looking for in China.
