| Prod Model: |
GEMU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body: |
Two-Seater Casting |
| Pressure: |
ANSI 600; JIS 40k; Pn6.4mpa |
| Flange: |
Ff, RF, Rj and LG |
| Name: |
Pneumatic Diaphragm Valve |
| Material: |
Stainless Steel |
| Structure: |
Y-Global Diaphragm Valve |
| Actuator: |
Pneumatic |
| Function: |
Intelligent Type |
| Connection: |
Internal Threaded Connection Diaphragm Valve |
| Standard: |
GB |
Product Description

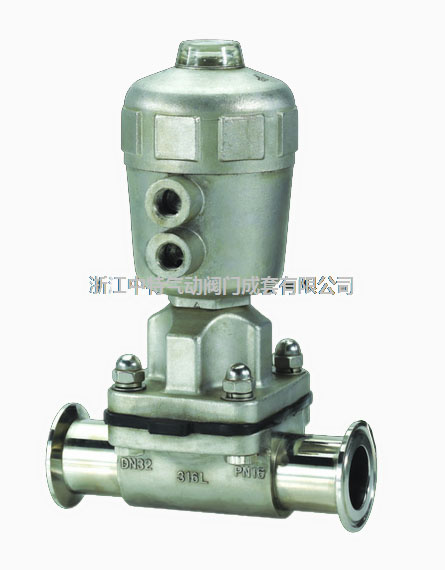

Pneumatic diaphragm valve
Dual role of the valve cylinder, the use of superior or inferior into the air intake valve to remote control the valve, easy to operate. The medium in the cylinder: Compressed air, nitrogen. Simple structure, easy manufacturing and maintenance; Work trips in small, short headstock; The closure body (valve) and the use conical valve seat sealing surface sealing, the closure of our small, erosion-resistant, reliable sealing. For the replacement of seat-type valve seat, can be any combination of on and off pieces of the matching sealing surface materials to meet the conditions, good using method can extend the service life.
Specification standard
Remarks:
Pneumatic diaphragm valve
1. P stands for valves positioner; R— Pressure servomotor.
2. The allowable pressure deviation is P2=0: The valve is on turning off situation, P reaches the highest level.
3. If the maximum pressure is more than 1.0Mpa, we advice to weld hard or other suitable materials as the tapon and seat surface.
Enclosed sectors
Positioner, Gear Box, air filter and pressure reducers
Outside dimension
Note for Order-offering:
Pneumatic diaphragm valve
If you would like to purchase our products, please kindly fullfill the Specification note form or please note the following information:
1, type of the purchased product
2, Pressure
3, dimension, fixed flow capacity KV
4, signal pressure, range of springs
5, index of the flow
6, turn-on and turn-offer methods of the needed valves
7, the temperature range of the media
8, materials of the valve body and valve core
9, note wether there is enclosed sectors and please state clealy the specification
10, nay other special characteristics
|
DN mm |
20 25 |
40 |
50 |
65 |
80 |
100 |
150 |
200 |
|
Dimension of the seat mm |
10 |
12 |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
Fixed flow capacity
Kv |
Straight line |
1.8 |
2.8 |
4.4 |
6.9 |
11 |
17.6 |
27.5 |
44 |
69 |
110 |
176 |
275 |
440 |
690 |
|
Percentage |
1.6 |
2.5 |
4 |
6.3 |
10 |
16 |
25 |
40 |
63 |
100 |
160 |
250 |
400 |
630 |
|
PN Mpa |
|
|
Travel mm |
10 |
16 |
25 |
40 |
60 |
|
Flow characteristcs |
Straight line percentage |
|
Terperature of the meidaº C |
-15~200(normal temperature )-40~+250\40~4509(middle range temperature) |
|
Size of flanges |
Casting iron flanges dimension according to JB78, casting steel flanges dimension according to JB79 |
|
Flanges type |
Flange sealing surface according to JB77: casting iron is flat ones and casting steel in rised face. |
|
Body material |
PN
Mpa |
0.6, 1.6 |
HT200 |
|
4.0, 6.4 |
WCB(ZG230~450)\ZG1Cr18Ni9Ti\ZG0Cr18Ni12Mo2Ti |
|
Trim material |
1Cr18Ni9Ti\0Cr18Ni12Mo2Ti |
|
Upper bonnet type |
Normal(normal temperature)heating type (middle range temperature) |
|
Adjustable range R |
50: 1 |
|
Connection of the air origin |
M16× 1.5 |
|
Type |
ZHA (B)-22 |
ZHA(B)-23 |
ZHA(B)-34 |
ZHA(B)-45 |
|
Effective area cm |
350 |
350 |
560 |
900 |
|
Travel mm |
16 |
25 |
40 |
60 |
|
Range of the spring Kpa |
20 ~100(standard); 40~200; 80~240; 20~60; 60~100 |
|
Item |
Index rate |
Item |
Index rate |
|
Basic deviation % |
Without positioner |
± 5.0 |
|
|
Air-driven turn-off |
Without positioner |
Start pint |
± 5.0 |
|
End point |
± 2.5 |
|
With a positioner |
Start pint |
± 1.0 |
|
End point |
± 1.0 |
|
Air-driven turn-on |
Without positioner |
Start pint |
± 2.5 |
|
End point |
± 5.0 |
|
With a positioner |
Start pint |
± 1.0 |
|
End point |
± 1.0 |
|
|
With a positioner |
± 1.0 |
|
Return deviation % |
Without positioner |
≤ 3.0 |
|
With a positioner |
≤ 1.0 |
|
Dead zone % |
Without positioner |
≤ 3.0 |
|
With a positioner |
≤ 0.4 |
Allowable leakage rate L/H |
1× 10 -4 ×
fixed valve capacity |
|
Fixed travel deviation % |
± 2.5 |
|
turn-on and – off method |
Act-uator type |
Spring range
Kpa |
Pres-sure of the air
Kpa |
Needed components |
DN(dimension of the seat)mm |
|
20 |
25 |
40 |
50 |
60 |
80 |
100 |
150 |
200 |
|
(10) |
(12) |
(15) |
(20) |
(32) |
(40) |
(125) |
(150) |
|
Driven off by the air |
ZHA
-22 |
20~100
20~100
40~200 |
140
250
500 |
P
P
PorR |
6.4
6.4
6.4 |
5.94
6.4
6.4 |
3.34
6.4
6.4 |
2.14
6.4
6.4 |
|
|
|
|
|
|
|
|
|
ZHA
-23 |
|
|
|
|
|
3.31
6.09
6.4 |
0.84
3.9
5.26 |
0.53
2.5
3.39 |
|
|
|
|
|
|
ZHA
-34 |
|
|
|
|
|
|
|
|
0.51
2.36
3.21 |
0.33
1.56
2.12 |
0.21
1.0
1.35 |
|
|
|
ZHA
-45 |
|
|
|
|
|
|
|
|
|
|
|
0.22
1.02
1.39 |
0.15
0.71
0.97 |
0.08
0.40
0.54 |
|
Driven on by the air |
ZHB
-22 |
20~100
40~200
80~240 |
P
PorR
P |
4.46
6.4
6.4 |
3.09
6.4
6.4 |
1.98
5.94
6.4 |
1.11
3.34
6.4 |
0.71
2.14
4.99 |
|
|
|
|
|
|
|
|
|
ZHB
-23 |
|
|
|
|
|
0.44
1.37
3.05 |
0.28
0.84
1.95 |
0.18
0.53
1.25 |
|
|
|
|
|
|
ZHB
-34 |
|
|
|
|
|
|
|
|
0.17
0.51
1.18 |
0.11
0.33
0.78 |
0.07
0.21
0.5 |
|
|
|
ZHB
-45 |
|
|
|
|
|
|
|
|
|
|
|
0.07
0.22
0.51 |
0.05
0.15
0.35 |
0.028
0.08
0.20 |
|
Sectors |
Material |
Temperature range |
Notes |
|
Body and upper-bonnet |
HT200 |
15~200º C |
|
|
WCB |
-20~425º C |
|
|
ZG1Cr18Ni9Ti |
-40~550º C |
|
|
ZG0Cr18Ni12Mo2Ti |
|
|
Valve core? and seat |
1Cr18Ni9Ti |
|
|
0Cr18Ni12Mo2Ti |
-400~550º C |
|
|
Packing |
PTFE |
-40~200º C |
|
|
Diaphragm |
Bunna rubberand and forced polyester fabric |
|
|
|
Spring |
60Si2Mn |
|
|
|
Diaphragm? bonnet |
A3 |
|
|
