| Prod Model: |
N371/3-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Brand Name: |
Rih |
| Working Medium: |
Air |
| Action: |
Direct Operation |
| Style: |
Nc |
| CV Value: |
0.23 |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Direct-Acting Piston Structure |
| Power Supply: |
DC Solenoid Valve |
| Application: |
Industrial Usage |
Product Description

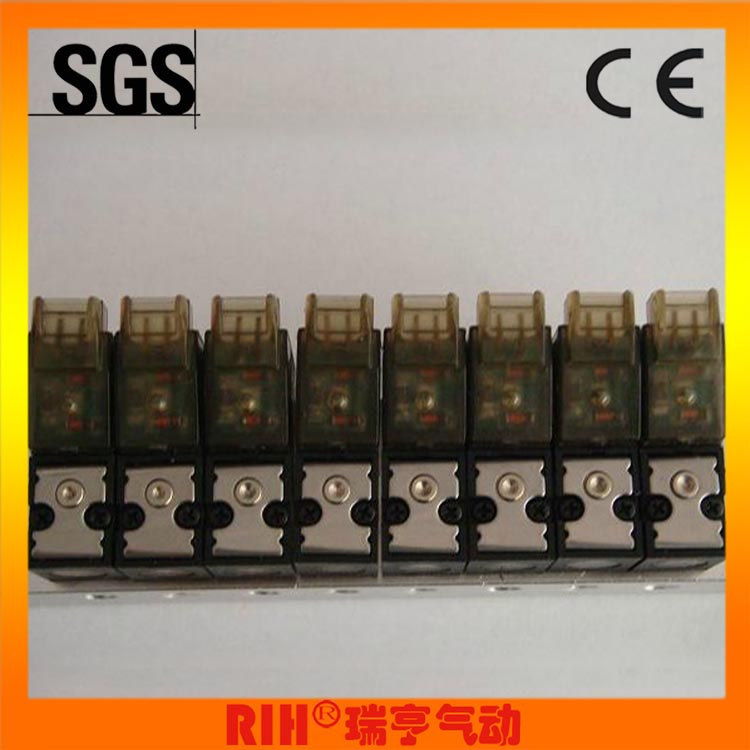

The solenoid valves are our new self-developed products used in textile rmbroidery, knitting electronices
Operating Pressure: 0~7 bar
Orifice Size: 2mm
Kinds: 3/2 ways normally closed
Fluid/ambient temperture: -5 ~+ 50 oC
Maximun flow rate at 6bar with p 1bar: 30 NI/min
Exhaust: 50 NI/min
Max number of cycles per minute: 2400/min
Life expectancy: More than 50 Million times
Voltage: 24V DC -15% ~ +10%
Power: 2.3W
Response time when energized: 6 ms
Response time when de-energized: 8ms
Copper wire isolation chass: F (155 oC)
Voltage: 24V DC -15% ~ +10%
Power: 0.3W
Response time when energized: 6 ms
Response time when de-energized: 8ms
Copper wire isolation chass: F (155 oC)
Useage: Convergent plates are used in combined the solenoid valves, 2/3/5/7/8/10/12/28 combinded electromagnetic valve Plates are available
